Make the Connection. Deliver your Message. Collaborate with Confidence.
Key Features
CROSS-PLATFORM SUPPORT
From the laptops, tablets, and smartphones your team uses to those brought in by guests, a wide array of different devices enters your conference room in any given week. To ensure compatibility with just about everything, NovoEnterprise boasts cross-platform support with Windows, Mac, Android, iOS, and Google devices.
AIRPLAY & GOOGLE CAST
NovoEnterprise fully supports Apple AirPlay and Google Cast, enabling quick and simple screen mirroring and content streaming from a wide number of today’s most popular laptop, tablet, and smartphone devices.
QUAD-VIEW & DYNAMIC SCREEN LAYOUTS
Perfect for comparing and collaborating, NovoEnterprise can display/mirror up to four different screen sources simultaneously. This means AirPlay, Google Cast, and regular PC mirroring can all run concurrently, side-by-side in default layouts or dynamically rearranged to match the user’s preference.

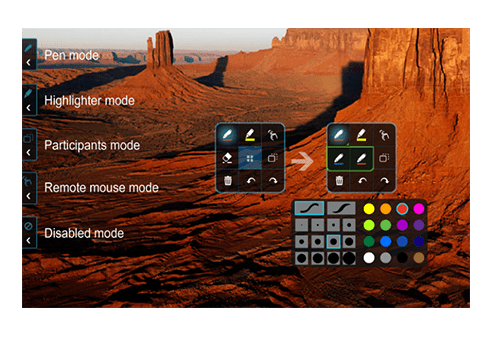

INTUITIVE ON-SCREEN OPERATIONS
Managing 64 simultaneous users, rearranging mirror windows, and placing on-screen annotations might sound difficult in concept, but NovoEnterprise makes executing these tasks easy and intuitive thanks to its user-friendly, touch-capable on-screen interface.

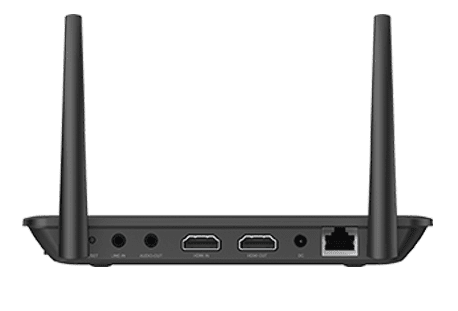

VERSATILE HDMI INPUT

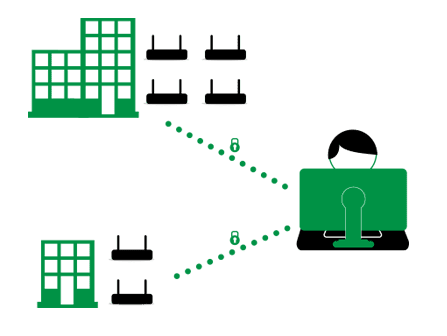

CENTRALIZED MANAGEMENT
As with all of the products in the NovoConnect family, NovoEnterprise can be remotely accessed, updated, and operated via the standalone Remote Manager application. Available for Windows and Mac, Remote Manager enables network-wide control over your entire NovoEnterprise fleet from a single computer.
Specifications
6.5" x 4.8" x 0.8"
(165 mm x 123 mm x 21 mm)
Weight
8.82 oz (250 g)
Ambient Temperature
Operating: 32° ~ 104° F; 0° ~ 40° C ; Storage: -4° ~ 140° F; -20° C ~ 60° C
Video Quality
FHD(1080P/60fps)
OS support
Windows 7 / 8 / 10 (32 bits and 64 bits), Mac 10.7 and above, iOS 7.0 and above, Android 4.0 and above, Chromebook 37+
Cross-Platform Mirroring
✔
Air Play
✔
Google Cast
✔
MiraCast
4-to-1 Screen (Quad screen)
✔
Dynamic Screen layout
✔
Intutitive on-screen operation
✔
Simultaneous Connections
up to 64
Software Edition
Corporate
Moderator Preview (Edu only)
✔
Screen Annotation tool
✔
File / URL sharing
✔
Voting / Polling
✔
AirNote
✔
Whiteabord
✔
Classroom management (attendance, lock student tablets, etc.)
✔
HD Video and You Tube streaming
✔
WiFi
802.11 ac/b/g/n
2.4GHz/5GHz
Antenna
External 2T2R
up to 300 Mbps
LAN
10/100/1000 Mbps
Display Resolution
up to WUXGA (1920x1200)
Output
HDMI out x 1
Audio out 3.5mm mini jack
Input
HDMI in x 1
Audio in 3.5mm mini Jack x 1
USB Type A x 2
RJ45 (PoE)
MicroSD card slot x 1
DC jack Power-in
Kensington Lock
Storage
Internal - 8GB (eMMC flash)
External -MicroSD card slot (up to 32GB)
Remote Control
RF
Security
AES-128 encryption
Power
Input to AC Adaptor: AC 100-240V, 50/60Hz; Output from AC Adaptor: 5V/2A; Consumption: 10W
What is in the box
HDMI cable x 1,
Micro USB to USB cable x 1,
Wall Mount Kit x 1,
Remote control x 1
USB Power Adapter
Antenna x 2
AAA battery x 2
