Viewsonic ViewBoard Mini IFP2410
Smartboard• 24” display
• Resolution 1920 x 1080
• Equipped With Wi-Fi, Bluetooth and RJ45
• myViewBoard Digital Whiteboarding Solution
• 10-Point Multi-Touch
Description
Descriptions

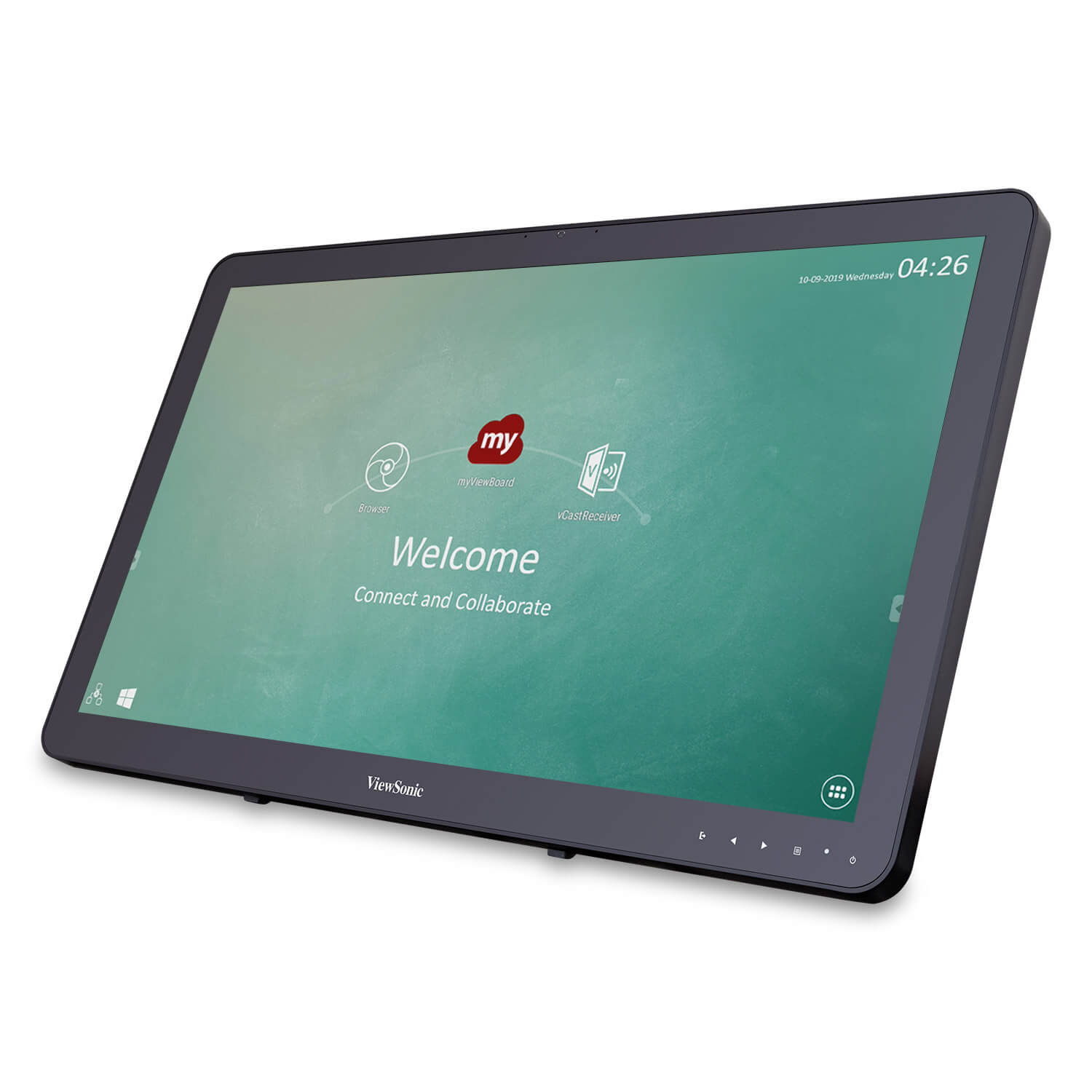

ViewBoard® Mini 24'' Interactive Display
- Interactive front-facing teaching and collaboration
- Built-in myViewBoard® digital whiteboarding software
- Built-in ViewBoard® Cast streaming software
OVERVIEW

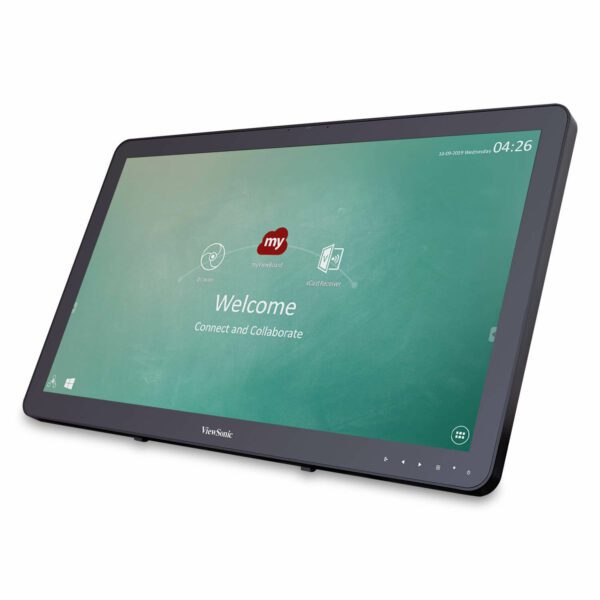

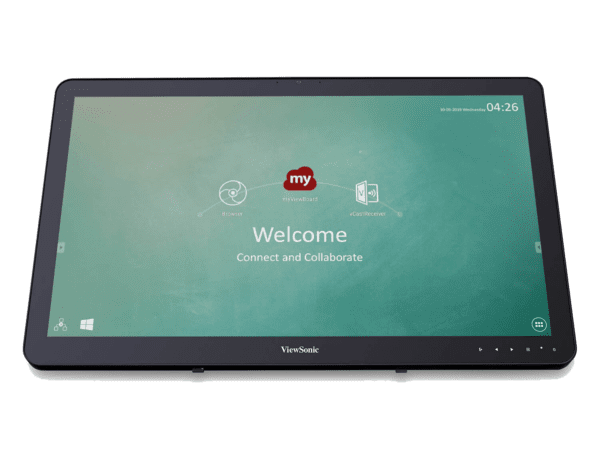

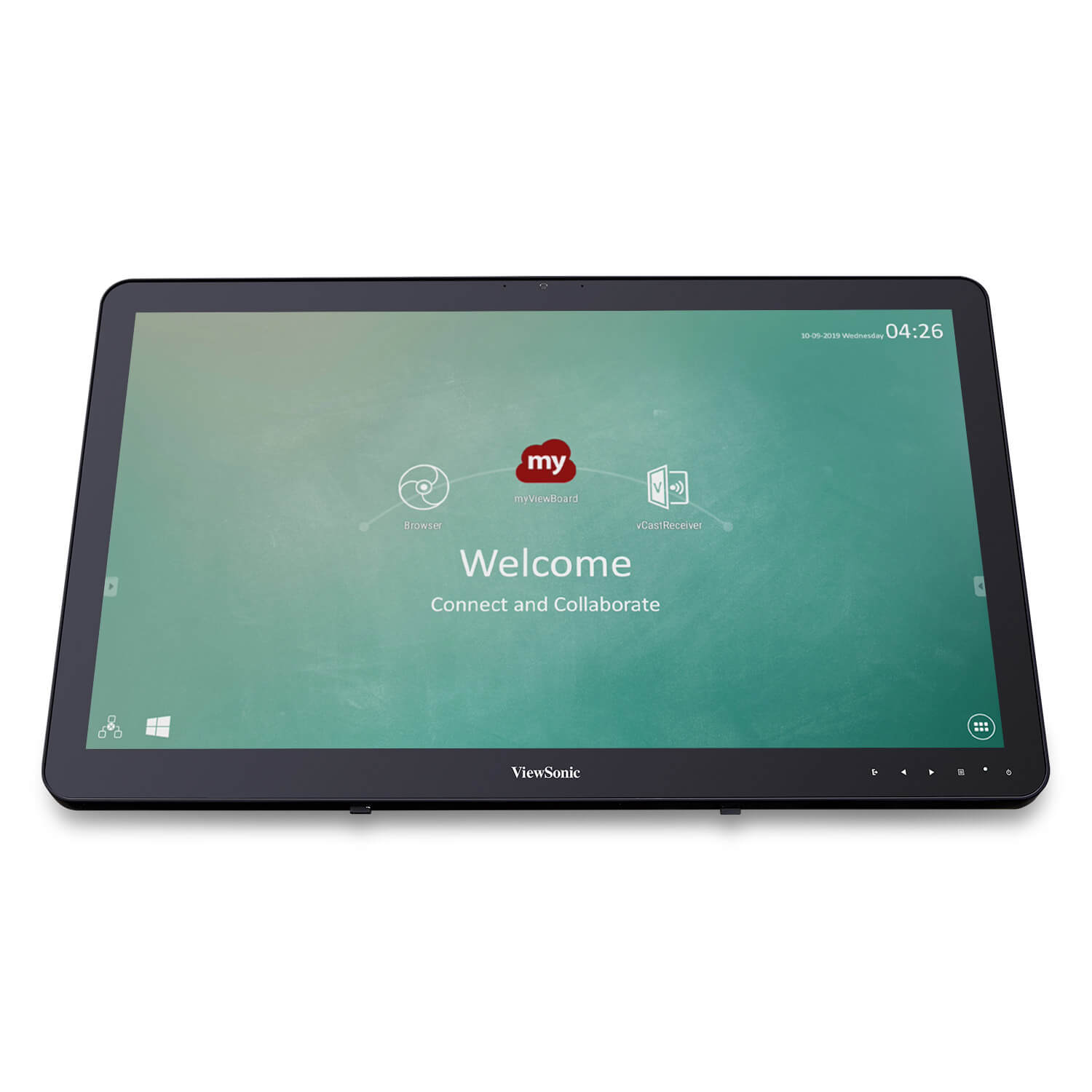

The ViewBoard® Mini IFP2410 is a 24″ interactive display that transforms podiums and lecterns into collaboration hubs for front-facing teaching. With integrated myViewBoard® digital whiteboarding software, ViewBoard® Cast streaming software, and a 10-point touchscreen, the ViewBoard® Mini makes content creation and sharing easier than ever before. Educators can manipulate and control content, files, images, and annotations on the ViewBoard® Mini touchscreen, then share that content on a larger front-of-classroom display or projector. For dynamic lessons and interactive collaboration, multiple presenters can simultaneously draw, write, and annotate on the ViewBoard® Mini as well – making it an ideal collaboration hub for classrooms, lecture halls, and auditoriums.
Key Features
Interactive front-facing teaching and collaboration
The ViewBoard® Mini touchscreen provides a front-facing interactive display solution, allowing educators to face the audience while annotating on slides – all done without turning your back on the audience. Not only that, but it also allows the presenter to be in full control of the presentation, creates interaction, and eye contact with the audience for total engagement.
Built-in myViewBoard® digital whiteboarding software
myViewBoard® digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way you connect and collaborate. Convenient features include multimedia support, screen recording, easy conversion of common office files, QR code sharing, and much more.

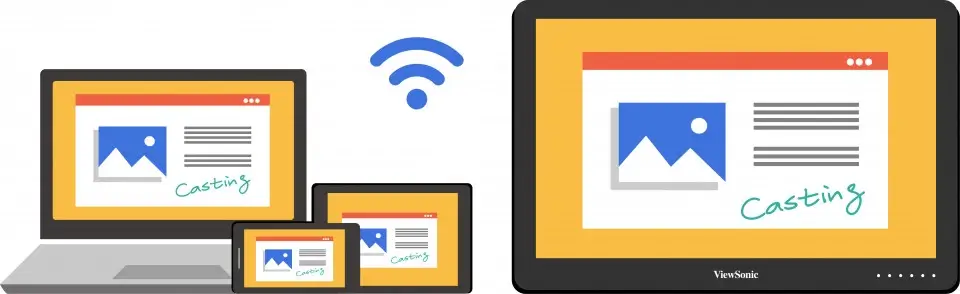

Built-in ViewBoard® Cast streaming software
ViewBoard® Cast allows you to share content on a projection screen, meaning that all content on the ViewBoard® Mini IFP2410 interactive display including annotations can be transferred directly onto a projection screen via ViewBoard® Cast for better visibility and long distance installation.

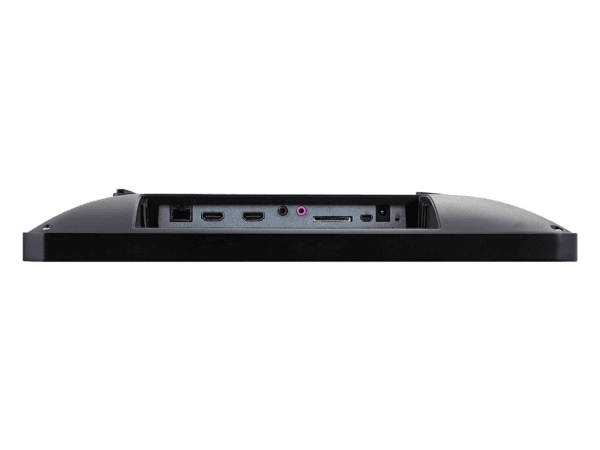

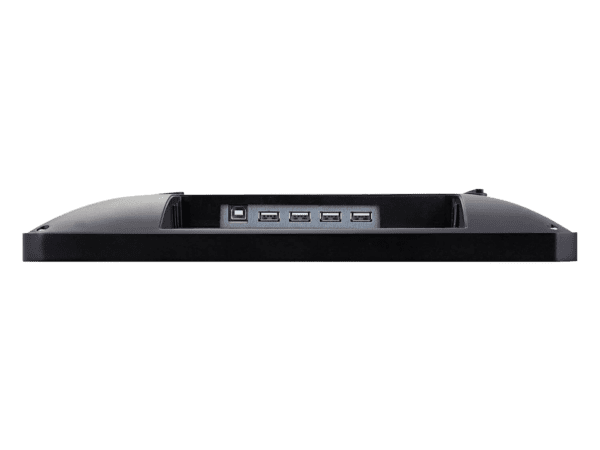

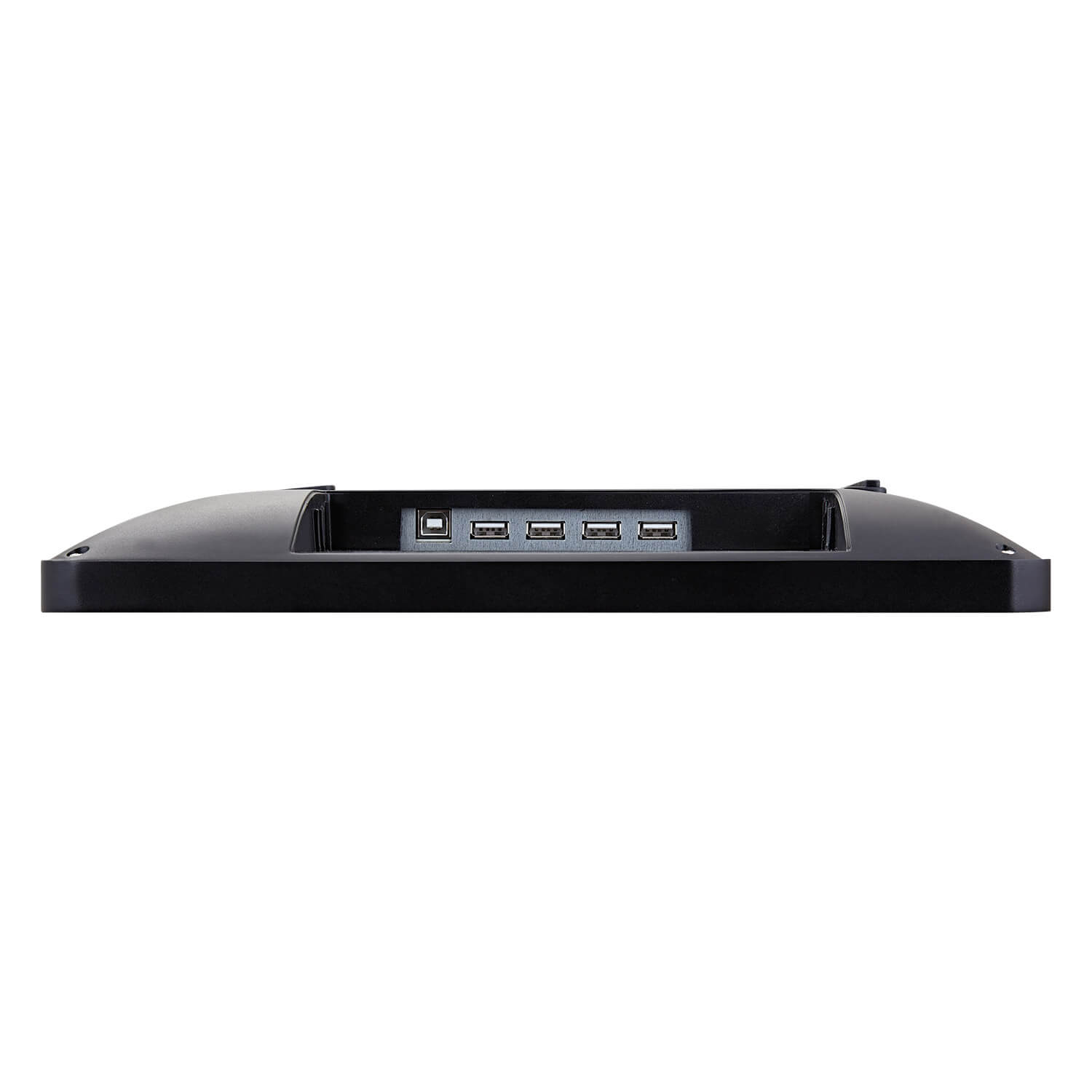

I/O Ports
Specifications

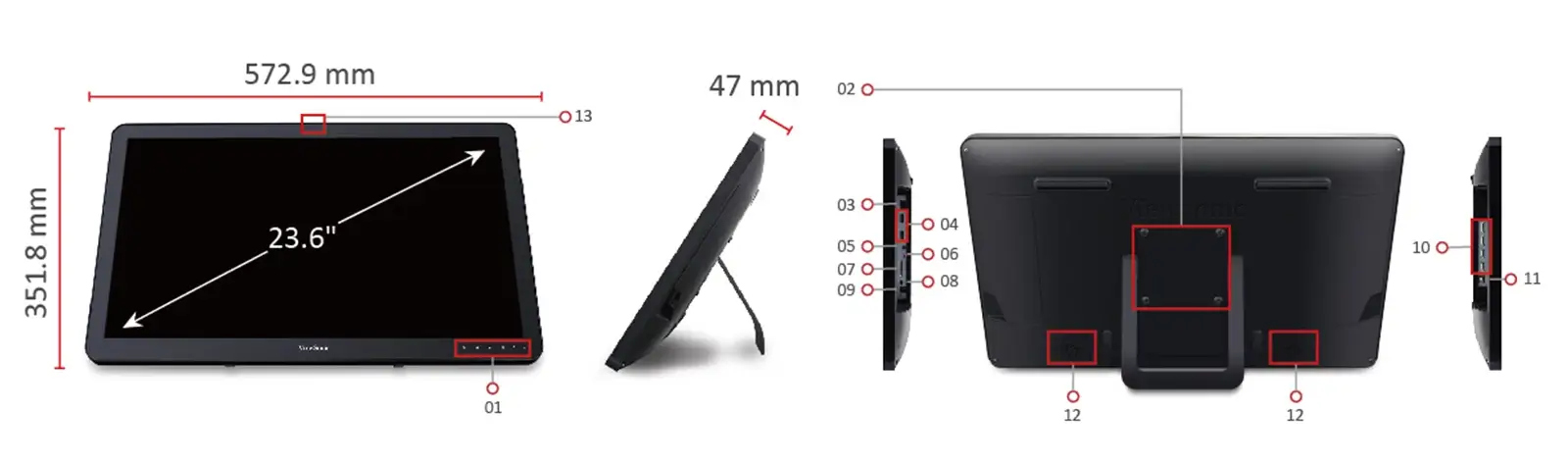

Physical (inch / mm):
572.9 x 351.8 x 47mm ( 22.6 x 13.9 x 1.9 inches)
Packaging (inch / mm):
643 x 435 x 140 mm ( 25.32 x 17.13 x 4.93 inches)
Processor: ARM based SoC
RAM: 2GB DDR3
Storage: 16GB EMMC iNand
Display
Panel Size: 23.6"
Panel Type: IPS
Aspect Ratio: 16:9
Resolution: 1920 x 1080
Brightness: 250 nits (typ.)
Contrast Ratio: 3000:1 Typ.
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 40,000 Hours Typ.
Orientation: LandscapeTouch
Type/ Tech: PCAP Touch Technology
Touch Point: 10 points touch, 10 points writing
INPUT
HDMI: x1
Audio: x1 PC audio (3.5 mm)
SD/SDHC: YesOUTPUT
HDMI: x1LAN
RJ45: x1USB
Type A: USB 2.0 x4
Type B: x1 for touch
Mini USB: x1 ( for OTG)WEBCAM
x1, 5 MPMICROPHONE
x1, Echo Cancelling
COMPATIBILITY
HDMI: 480i, 480p, 720p, 1080i, 1080pEmbedded OS
Android 8.1Bundle Software
Basic Annotation Software: myViewBoard for Android
Wireless Presentation with Touch Feedback: Viewboard Cast: vCastReceiverPower
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: 35W (typ), 40W (max), < 0.5W (""Off"")ERGONOMICS
Wall Mount (VESA® ): 100 x 100OPERATING CONDITIONS
Temperature (º C): 5°C to 40°C (Landscape only)
Humidity: 20% ~ 90% non-condensingWEIGHT
Net (lb / kg): 5.64 kg (12.43 lb)
Gross (lb / kg): 7.56 Kg (16.65 lb)REGULATIONS
FCC, cUTVus, FCC-ID, IC-ID, CE, CB, R&TTE, RoHS, ErP, WEEE
1. IFP2410 ,
2. Power adapter ,
3. Power cord* (*Applicable power cord is shipped with the product base on the country power type),
4. Quick Start Guide
