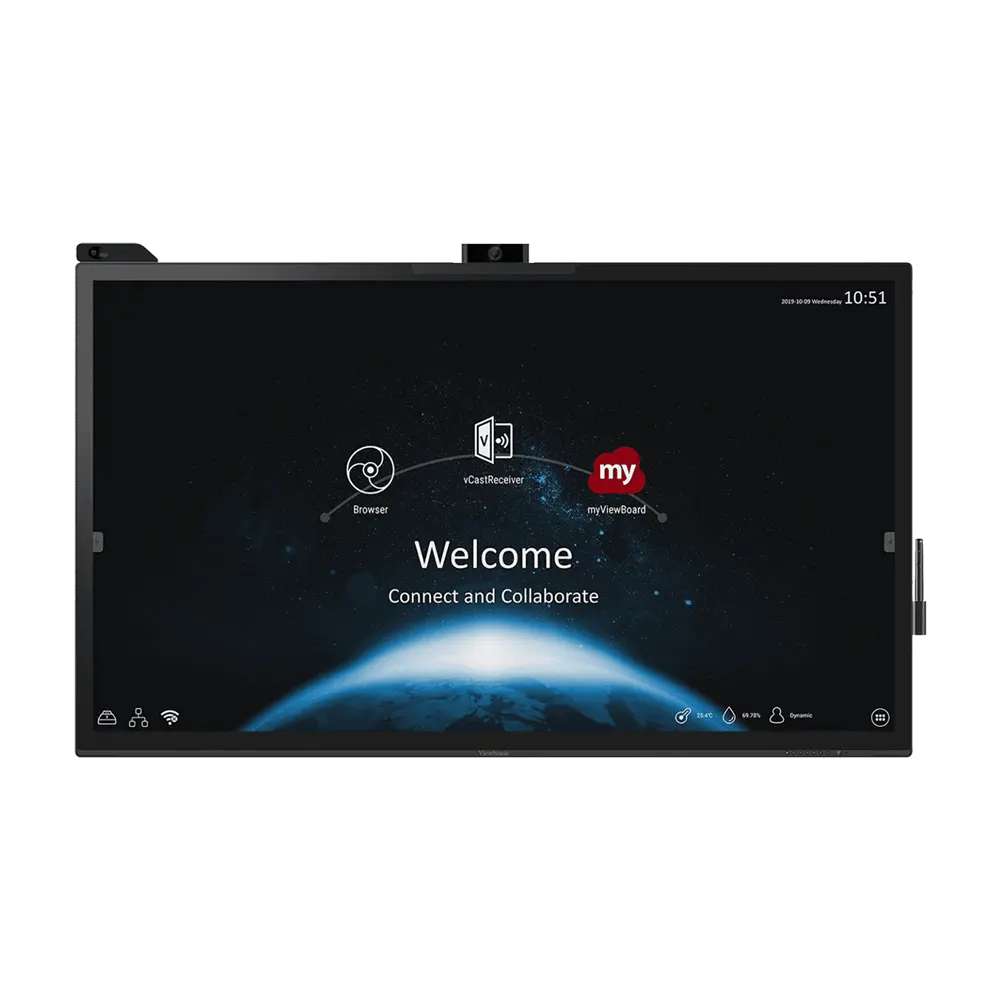

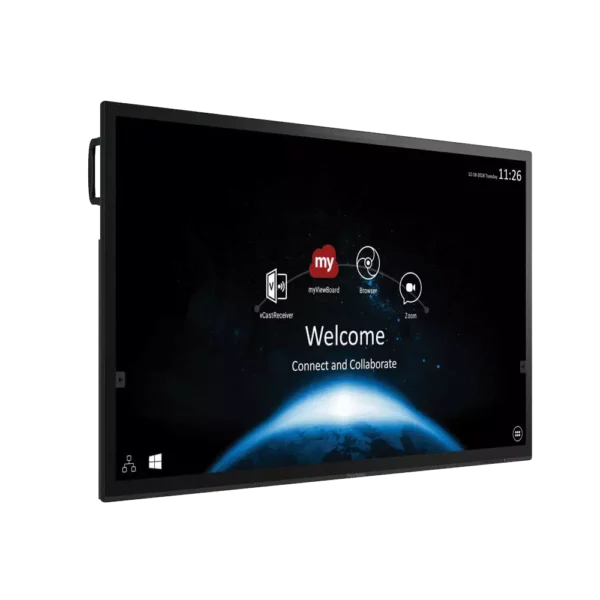

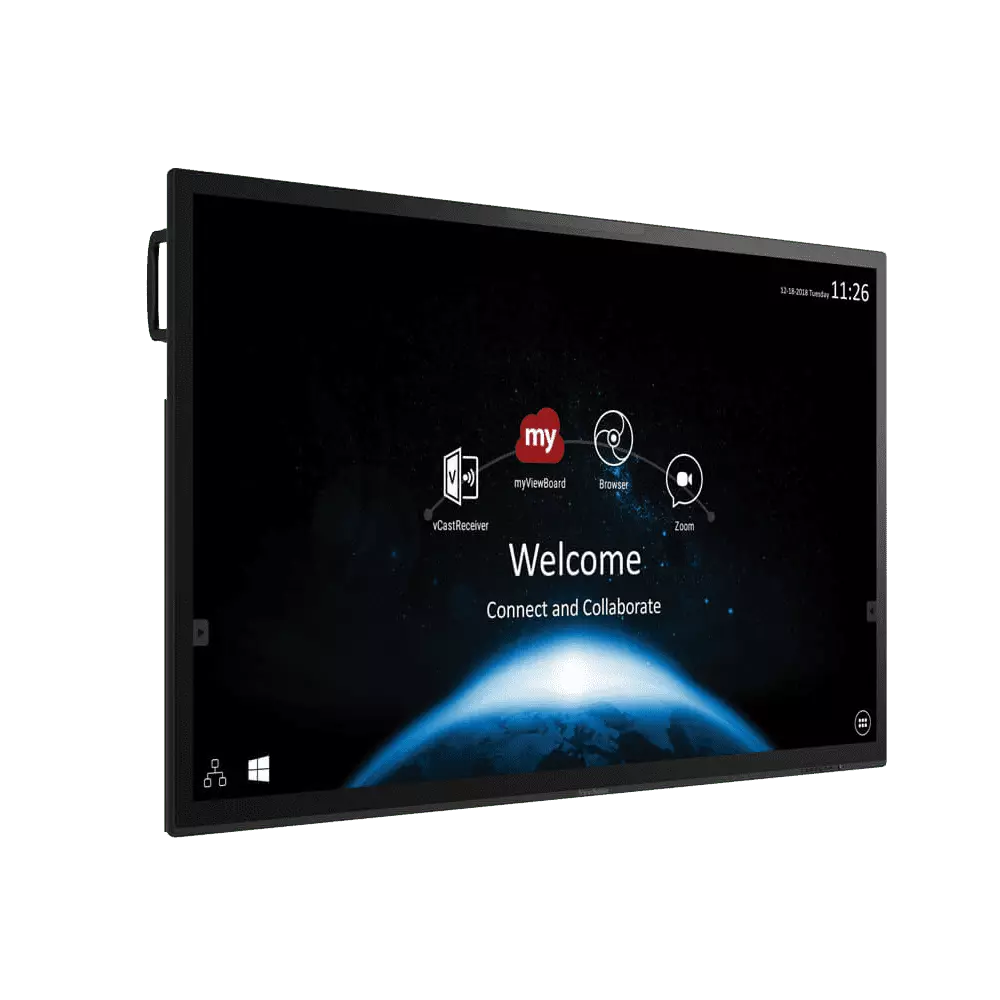

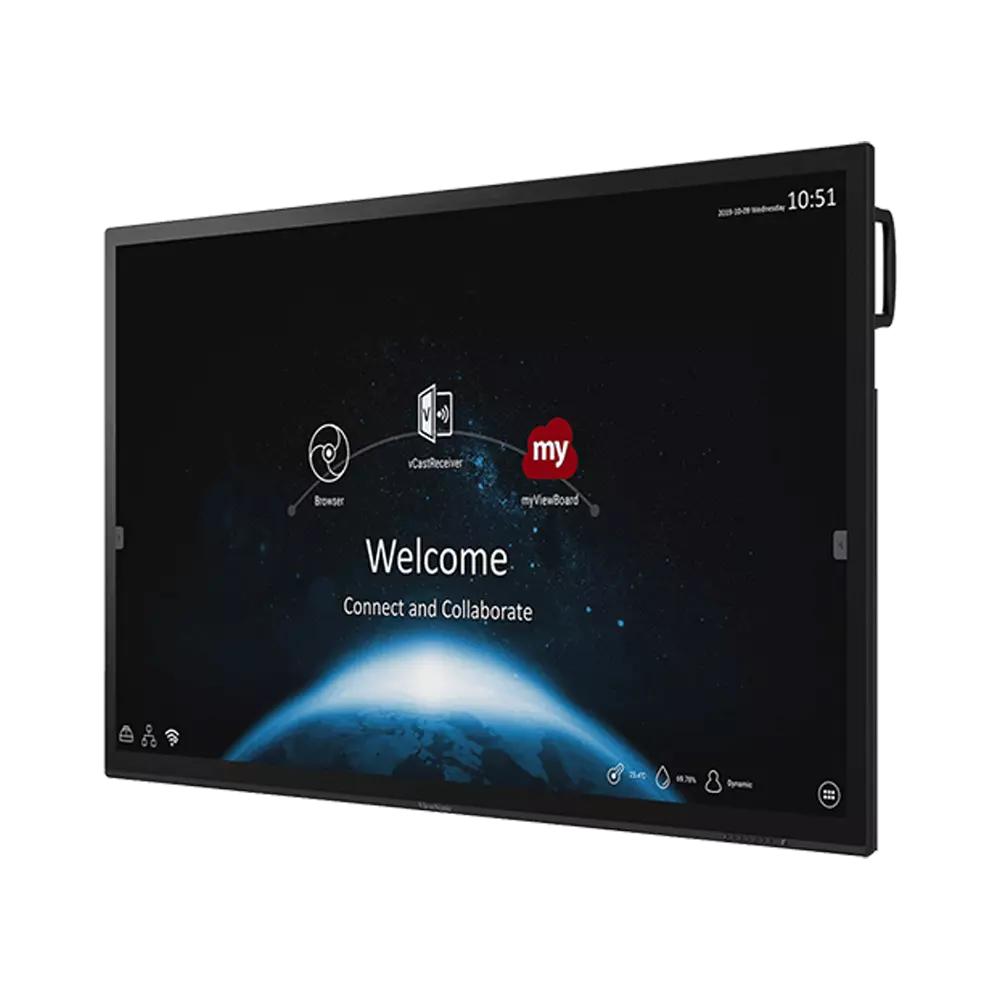

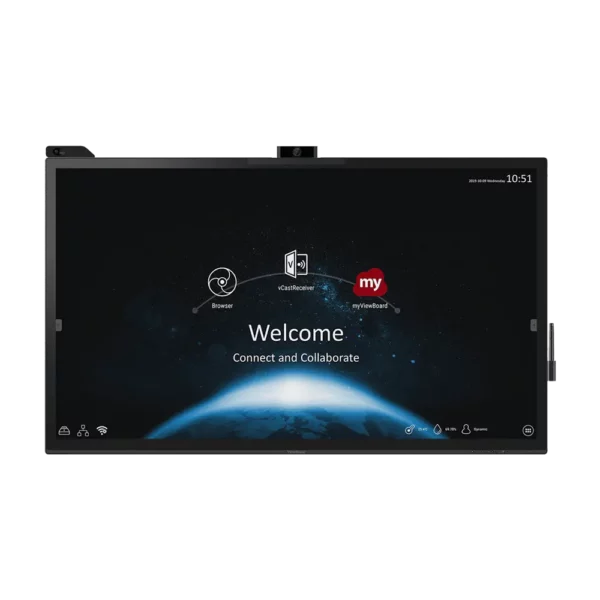

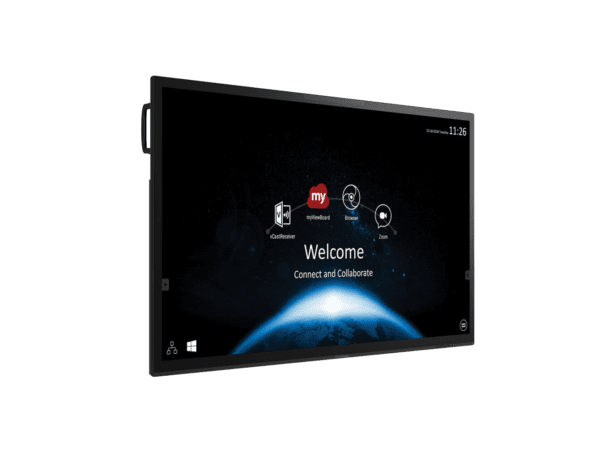

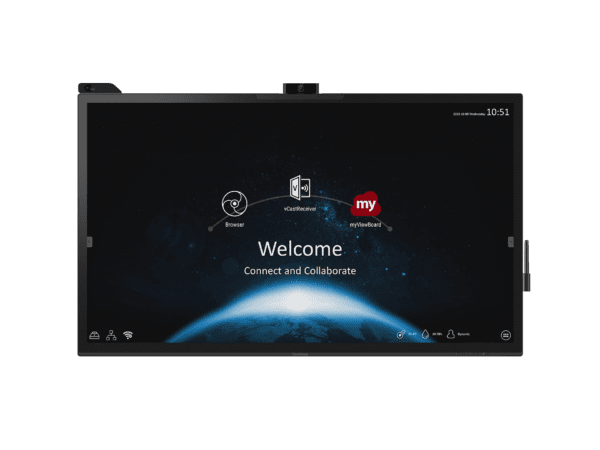

Viewsonic Smartboard IFP8670
Smartboard• 86” interactive display
• Touch technology Advanced Projected Capacitive (PCAP)
• Have smart active pen to write naturally and accurately
• Skype for Business certified FHD camera
• USB type C for single cable content sharing
Description
Descriptions
ViewBoard® 86'' 4K Flagship Interactive Display
- Advanced Projected Capacitive (PCAP) touch technology
- Write Naturally and Accurately with Smart Active Pen
- Azure certified IoT sensor hub for workplace management
- Skype for Business certified FHD camera
- Single cable content sharing through USB Type C
OVERVIEW
The ViewBoard® IFP70, our flagship interactive display, is tailored for visual collaboration in a digital workplace. Adopting advanced Projected Capacitive (PCAP) touch technology, it has a frameless, flat touchscreen to deliver precise responsiveness and the most accurate touch experience. Together with the smart pen, it enables you to write naturally and accurately like a real pen on a 4K Ultra HD resolution screen, streamlining visual collaboration. The ViewBoard® IFP70 series has quick, easy connectivity for content sharing via USB-C cable or wireless ViewBoard® Cast. Furthermore, it has a high quality video conferencing solution for the remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration. In addition, the ViewBoard® IFP70 series gives you extra security to keep your information safe, private and compliant. It has built-in, AWS-powered myViewBoard™ whiteboarding software and an optional Intel® vPro™ slot-in PC. The ViewBoard® IFP70 series is also equipped with IoT sensors, which meet Windows Collaboration Display standards. It can work with Microsoft Azure Digital Twins to monitor and optimise your smart meeting rooms and collaboration spaces.
Key Features
Flat & Sleek Design for the Digital Workplace
Advanced Projected Capacitive (PCAP) touch technology – a direct-bonding glass touchscreen to deliver precise responsiveness and the most accurate experience
Write Naturally and Accurately
Smart Pen – designed to feel like a real pen with an eraser.
Presentation Control
Smart Pen as a remote control to advance slides.
Single cable content sharing
USB-C – all-in-one cable for security, data, audio/video, Ethernet and power.
Wireless content sharing
ViewBoard® Cast – built-in app to present content wirelessly across devices.
High Quality Video Conferencing Solution
Tailor-made for remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration.
Cloud security
Built-in, AWS-powered myViewBoard ™ whiteboarding software, which protects your data with cloud-powered security and encryption.
Windows Slot-in PC
Optional Intel® vPro ™ slot-in PC, which protects your business with dedicated endpoint security.
Digital Hub to Fulfill Workplace Management
Azure certified IoT sensor hub to detect motion, light, temperature, humidity, and proximity, enables you to analyze and optimise your valuable resources, reduce costs and enhance your connected spaces.
I/O Ports
Specifications

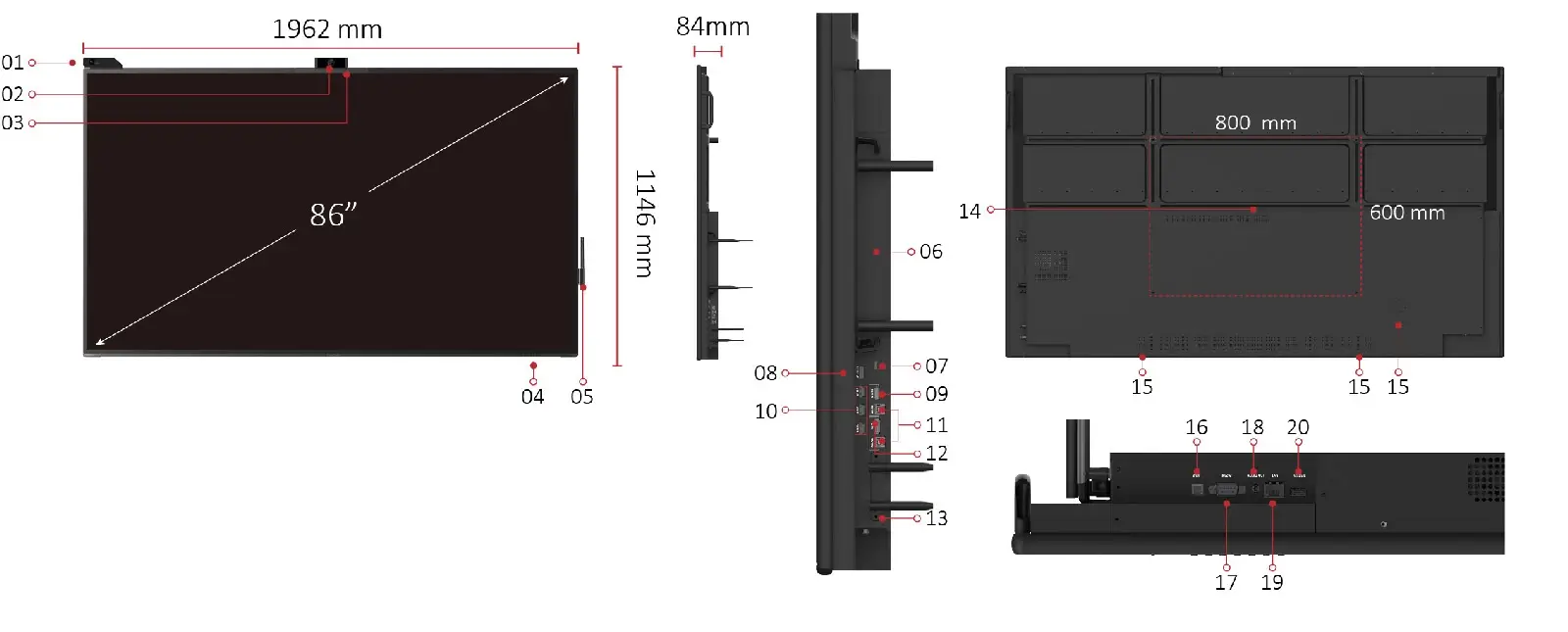

Physical (inch / mm):
1962X1146X84(mm)
77.24x45.11x3.3(inch)
Packaging (inch / mm):
2123X1345X280(mm)
83.8X52.9X11(inch)
Processor: Dual core A73+Dual core A53
RAM: 4GB DDR4
Storage: 32GB
Display
Panel Size: 86"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Anti-Glare/anti finger print
Bezel: Slim
Orientation: LandscapeTouch
Type/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
INPUT
HDMI: 2.0 x1 (3840x2160 @60Hz)
DisplayPort: X1 1.4
RS232: x1
OPS: x1 PC Slot (proprietary)OUTPUT
HDMI: X1(4K2K@60Hz)
Audio: x1 (Earphone out)
SPDIF: 1(optical)LAN
RJ45: x1USB
Type A: USB 3.0 x3
Type B: USB 3.0 x2, for touch
Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60WSPEAKERS
SPEAKERS: 10W x 2 + 15W x 1 subwooferCamera plate on top for screw-in webcam installation
Camera plate on top for screw-in webcam installation: YesCOMPATIBILITY
CVBS: 480i
HDMI: 3840x2160Embedded OS
Embedded OS: Android 8USB SUPPORTED FILE FORMAT
USB SUPPORTED FILE FORMAT: Picture -
BMP, JEPG, PNGVideo -
Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
Container: MPG, MP4, MOV, VOB, DAT, MKVAudio -
Codec: AAC, HEAAC, MPEG1, MPEG2
Container: AAC, M4A, MP3Bundle Software
Basic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: Yes
Zoom: Yes
ViewSonic Launcher: EmbeddedSpecial Features
All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Yes
Simple LAN sharing between IFP and slot-in device: YesPower
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On:176.6W(Typ.)
Off: <0.5WERGONOMICS

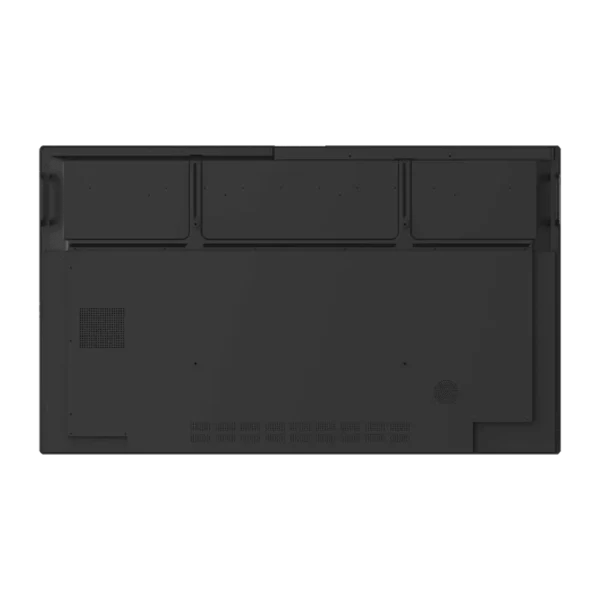

Wall Mount (VESA® ): 800 x 600OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensingWEIGHT
Net (lb / kg): 160.93/73Kg
Gross (lb / kg): 209.43/95KgREGULATIONS
REGULATIONS: FCC, cTUVus, CB, CE, RCM,Energy Star version
Energy Star version: Under proceed apply to ES8.0EEI rating
EEI rating: A+Compatible Slot-in PC
Compatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
1. Power cable x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7
10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable
13. Sensor hub
14 .Touch USB cable
15. Micro USB cable for camera
