Viewsonic Smartboard IFP6550-3

Smartboard

• 65” interactive display
• Ultra fine touch technology delivering a smooth, natural handwriting experience
• 4K resolution with super clear colors and graphics
• TUV certified for low blue light emission
• myViewBoard software offering a customizable, secure, and future-proof whiteboarding solution
• Optional slot-in PC upgrade for more speed, flexibility, and versatility

Description

Descriptions

VIEWSONIC_SMARTBOARD_IFP6550-3

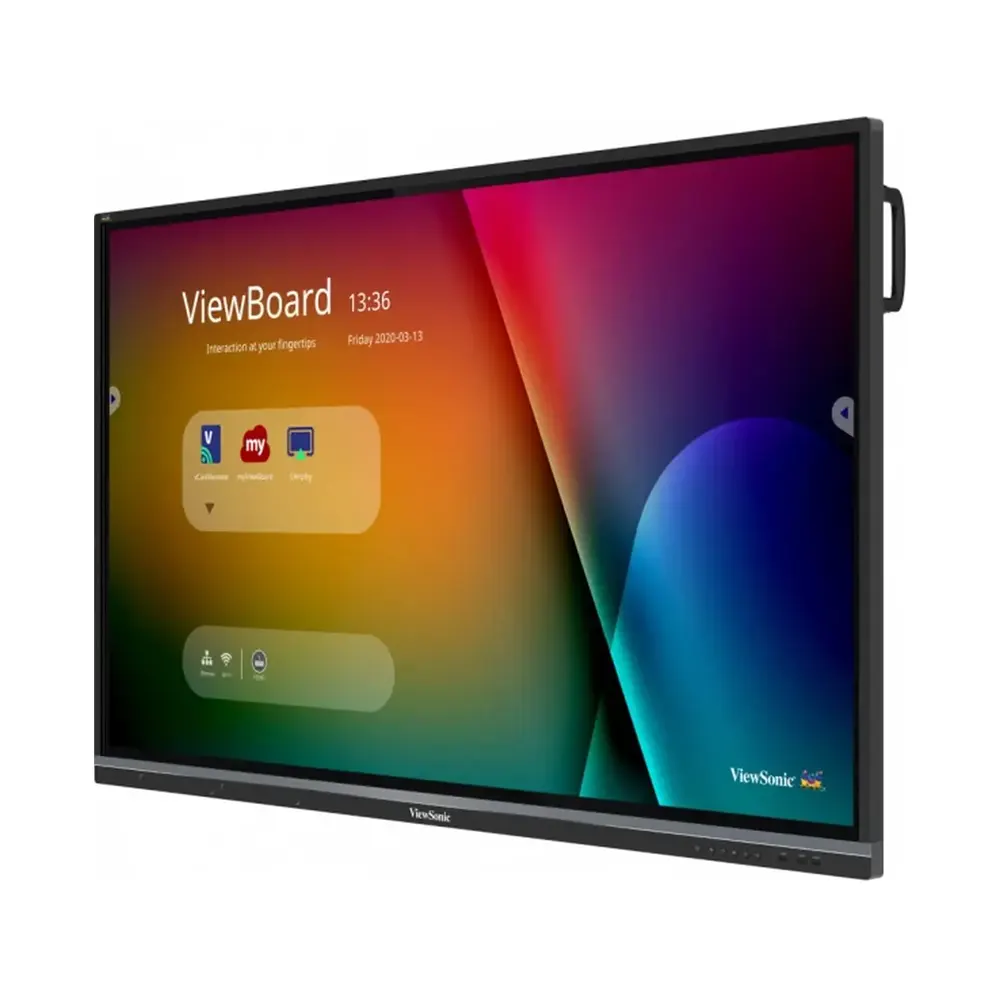

ViewBoard® 65" 4K Interactive Display

  • Intuitive Interactive Interface and Eye-care Certified Display
  • Synchronous Writing Performance with Dual Pens
  • Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
  • Native Whiteboarding Tool with built-in myViewBoard® App
  • Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App

Key Features

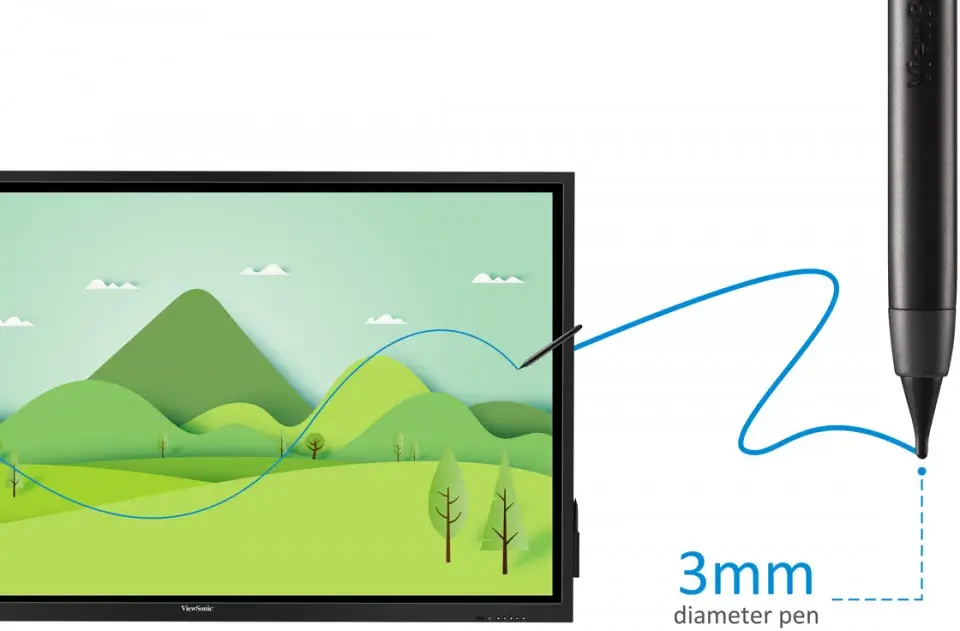

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

VIEWSONIC SMARTBOARD IFP6550 3 F01 pc 5
VIEWSONIC_SMARTBOARD_IFP6550-3

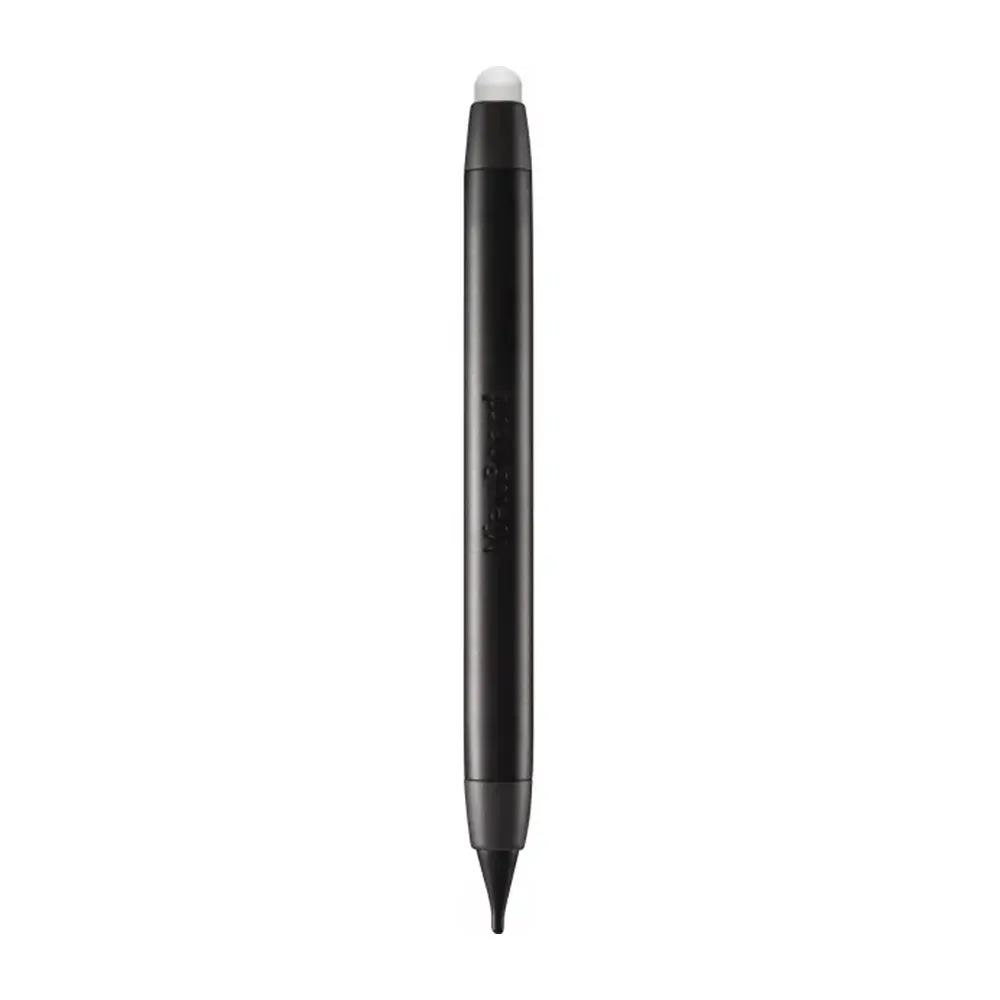

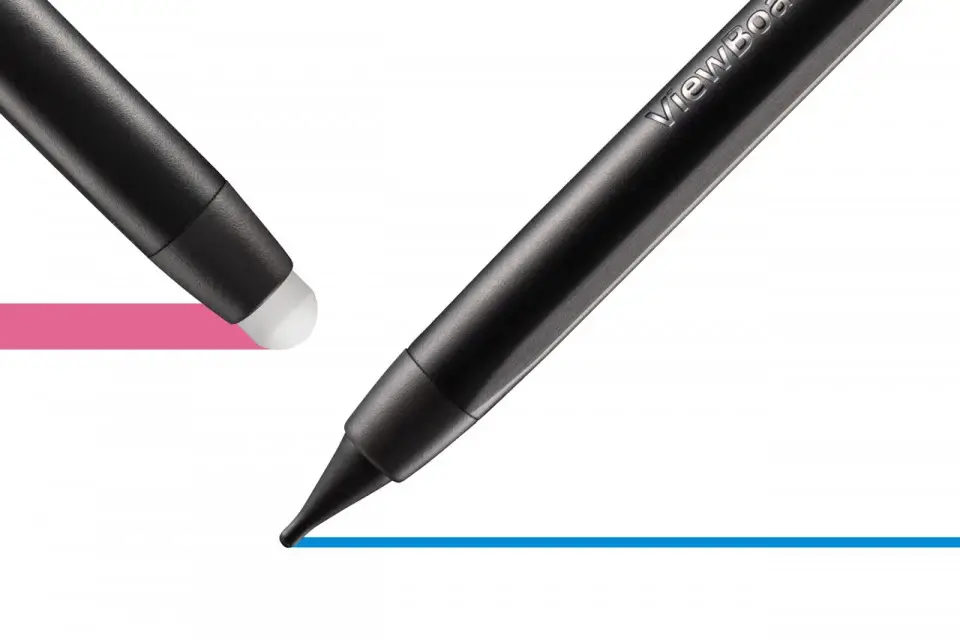

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

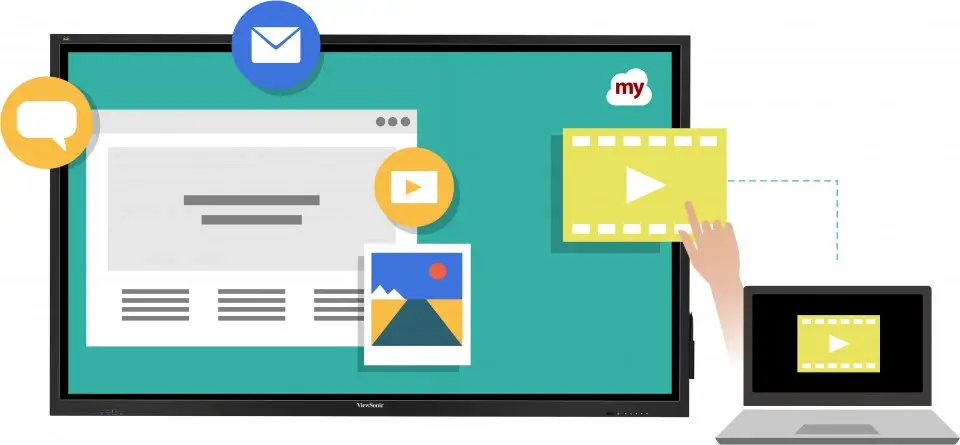

Full Native Performance on ViewBoard OS

Built-in myViewBoard® digital whiteboard software to collaborate on the go.

VIEWSONIC_SMARTBOARD_IFP6550-3
VIEWSONIC_SMARTBOARD_IFP6550-3

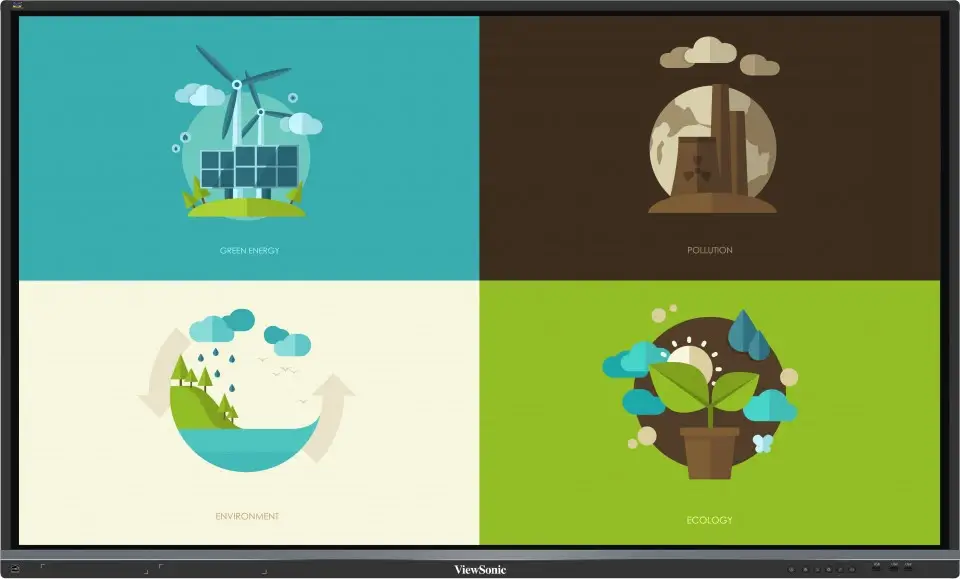

4-way Split Screen

4-way split-screen content sharing with built-in ViewBoard® Cast software

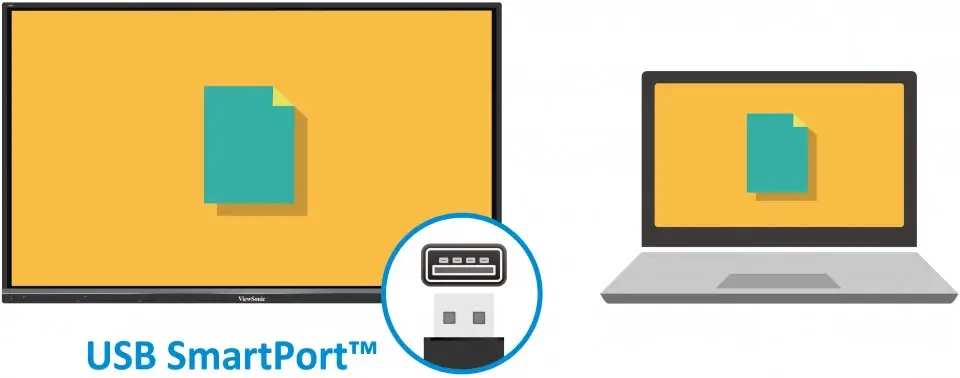

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

VIEWSONIC SMARTBOARD IFP6550 3 F01 pc 10
VIEWSONIC SMARTBOARD IFP6550 3 F01 pc 11

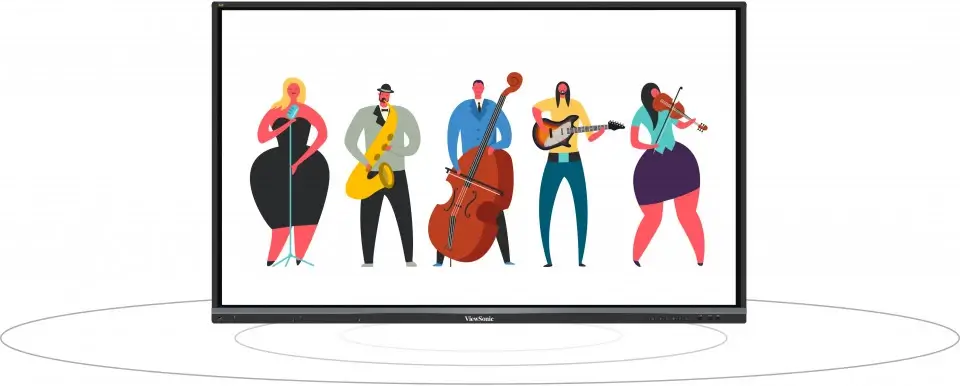

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

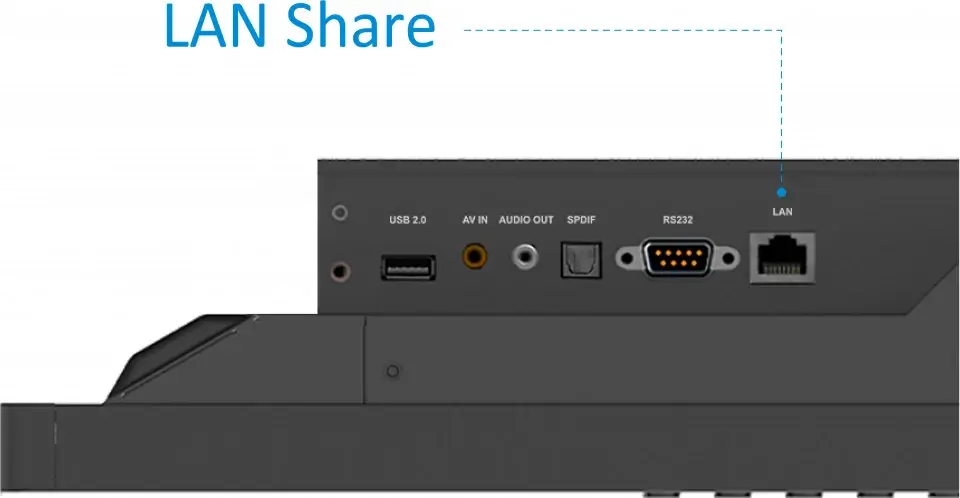

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.

VIEWSONIC SMARTBOARD IFP6550 3 F01 pc 12
VIEWSONIC_SMARTBOARD_IFP6550-3

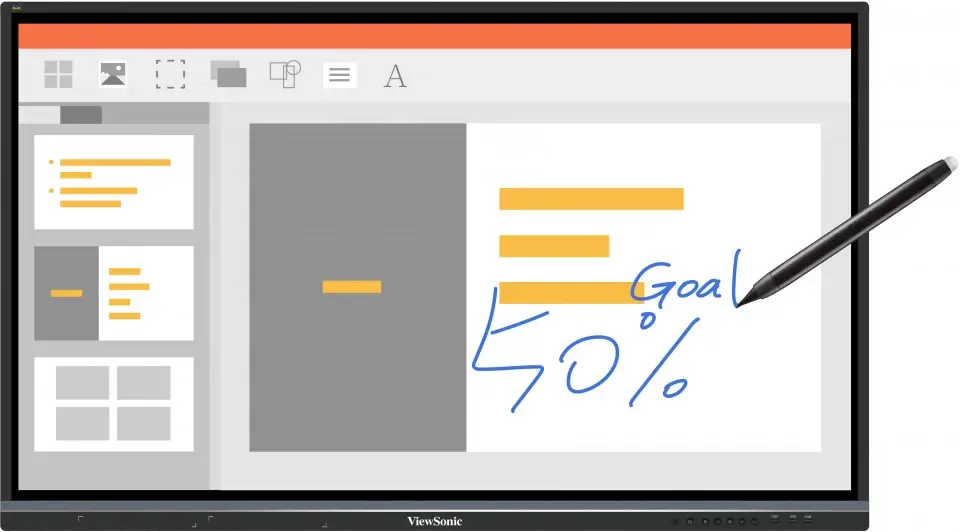

Object Recognition and Windows Ink Compatible

Make annotations, write and draw on the digital whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.

Remote Control

Built-in RS232 port and vController software for remote control.

VIEWSONIC_SMARTBOARD_IFP6550-3
VIEWSONIC_SMARTBOARD_IFP6550-3

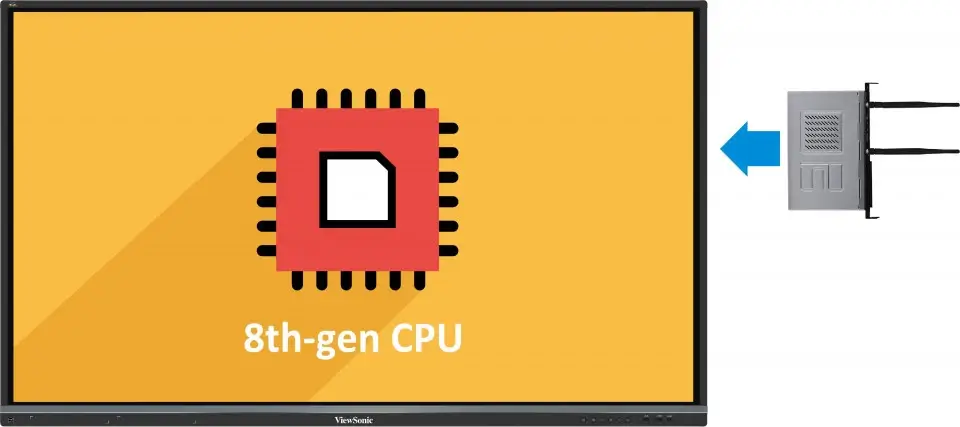

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

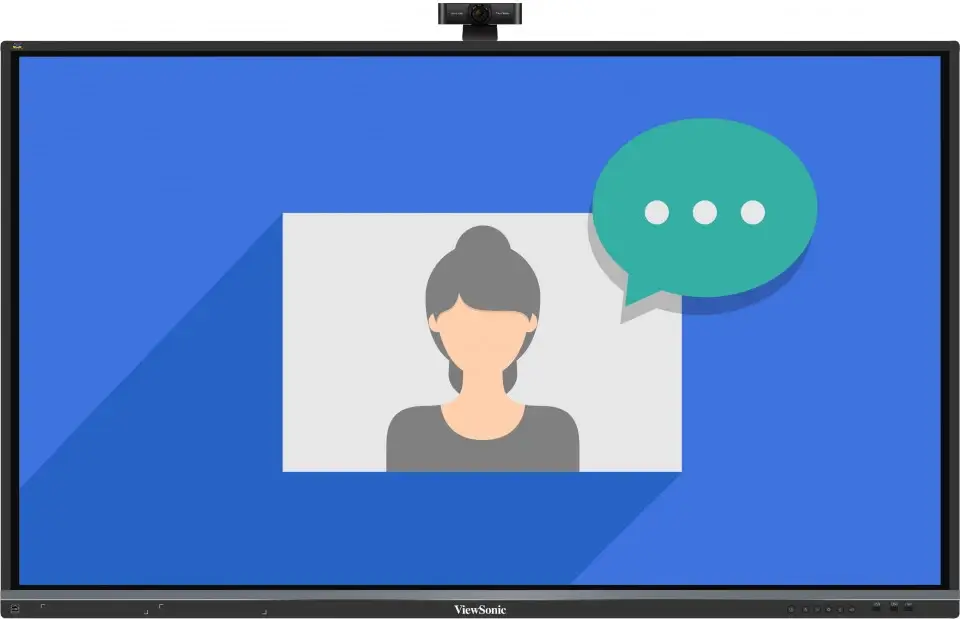

Web Camera

Top-mounted 1080p web camera (Optional).

VIEWSONIC SMARTBOARD IFP6550 3 F01 pc 16

I/O Port

VIEWSONIC_SMARTBOARD_IFP6550-3

Specifications

Processor:
ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz

RAM:
3GB DDR4

Storage:
32GB
Display



Panel Size:
65"

Panel Type:
TFT LCD Module with DLED Backlight.

Display Area (mm):
 1431 (H) x 807 (V) (64.5” diagonal)

Aspect Ratio:
16:9

Resolution:
UHD 3840x2160 (Pixels)

Colors:
1.07B colors (10bit)

Brightness:
350 nits (typ.)

Contrast Ratio:
5000:1 (DCR)

Response Time:
8ms

Viewing Angles:
H = 178, V = 178 typ.

Backlight Life:
30,000 Hours (Min)

Surface Treatment:
Hardness: 9H Anti-glare coating

Bezel:
Slim

Orientation:
 Landscape

Touch



Type/ Tech:
IR Recognition

Touch Resolution:
32767 x 32767

Touch Point:
20 points touch, 10 points writing
