SUPPORTS VARIETY OF CHANNEL INPUT SIGNALS

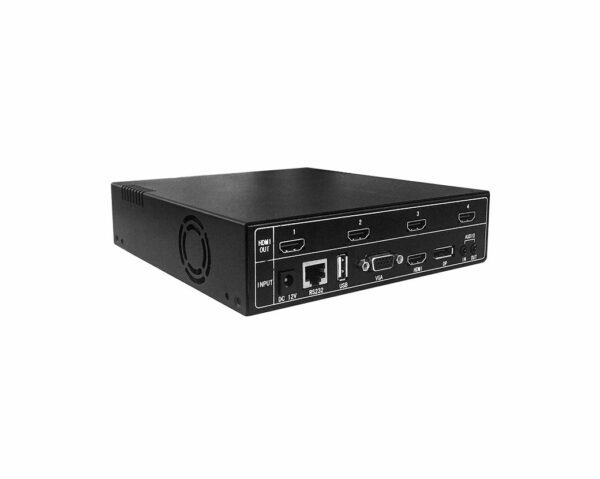

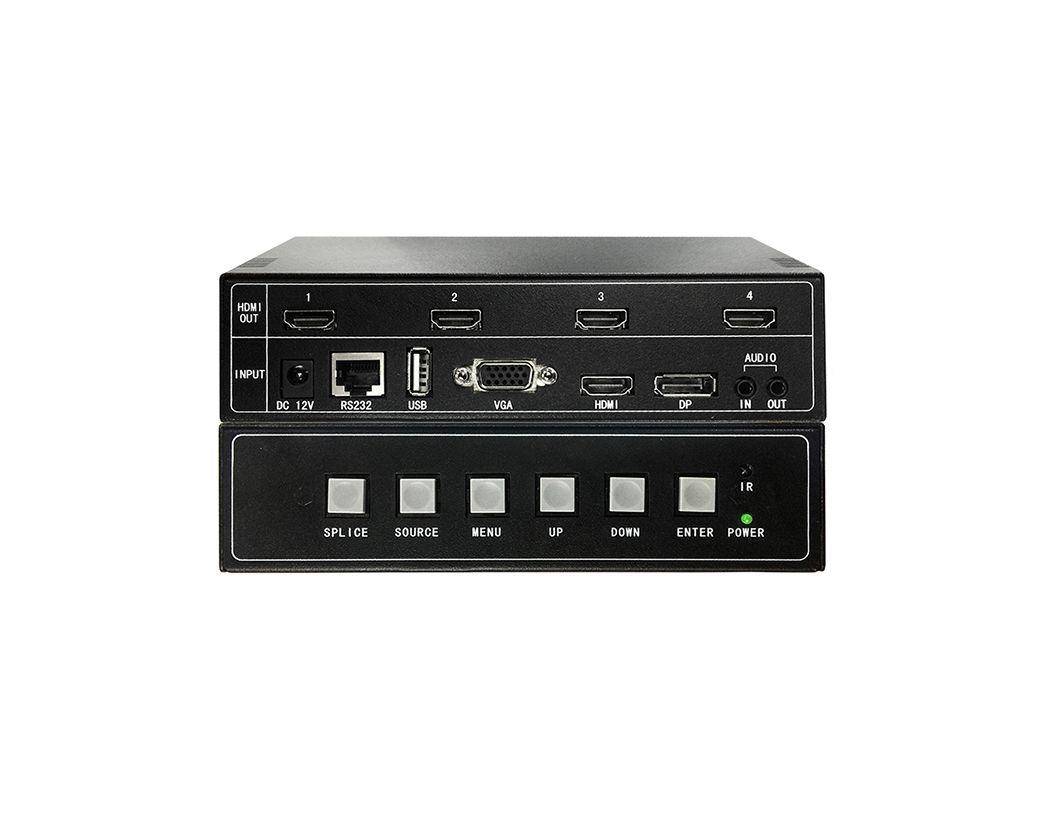

Supports 1 channel VGA, 1 channel USB, 1 channel DP, 1 channel HDMI input, all input signals can be switched to the full screen for video wall display
TV Wall Controller – FVM104
The product uses high-definition processing chip to support 4K signal input

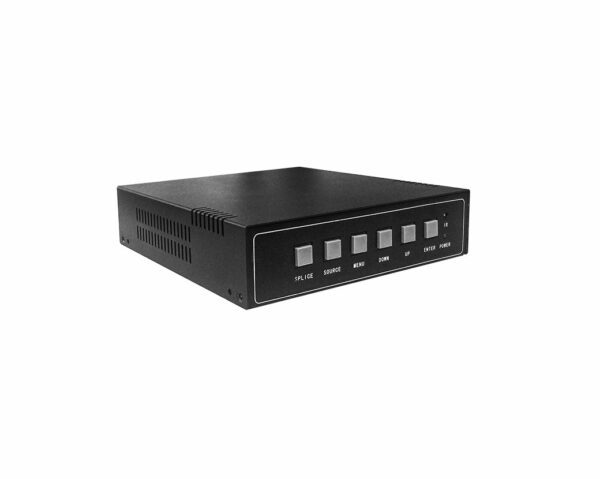

The product design has infrared remote control and button settings. The user can perform one-button shortcut control and full-function control on the video wall controller through buttons or remote control. The operation is convenient and concise; it can also be controlled by RS232 for more functions
Descriptions
Key Features
Supports VGA
Supports VGA audio input and supports audio and corresponding video sync output
VARIETY OF STITCHING METHODS
Support a variety of stitching methods (2×2, 1×2, 2×1, 1×3, 3×1, 1×1) and so on
Support USB access
Support USB access, insert USB flash drive to directly decode video, picture, play MP3, document, etc.; no need to specially configure other front-end equipment, simple and practical
Support remote control
Support remote control and remote operation, 1key IR remote control can complete the setting, switching and adjustment of all functions of the splicing processor; the remote control adopts sensitive design, the remote control distance can reach 5 to 7 meters.
Specifications
Product size(mm) 207.6*186.6*45mm
Work Temp.
-10°-50° No condensation
Storage Temp.
-20°-75°
Humidity (No condensation)
10%-90%RH
HDMI input
HDMI1.4 (HDCP1.3) HDMI embedded audio; maximum input 3840×2160/30Hz
DP input
Display digital signal input, the resolution supports up to 3840×2160/30Hz
VGA input
HD15 interface, 3.5mm audio interface input; support 640x480/85Hz to 1920x1200/60Hz;
USB input
Standard USB2.0 interface, can be connected to U disk and other storage devices; comes with video, audio and picture decoding playback, supports TXT document playback; pause, fast forward program list and other functions
HDMI output
4/ 7/ 10 HDMI output, a single unit supports up to 4/ 7/ 10 HDMI signal output, one outout resolution up to 1920x1080@60Hz, full video wall resolution up to 3840x2160@30Hz
Audio output
3.5mm Audio interface, support left and right channel stereo, audio and video signals synchronous switching
Video wall mode
2x2, 1x2, 1x3, 1x4, 4x1, 3x1, 2x1
Control mothed
Three ways: Remote control, PC software, front panel buttons
Power supply
DC 12V 2A
Power consumption
20W
Working hours
>40000 hours
TV Wall Controller 1pc
Disk 1pc
Remote Control 1pc
Power Supply 1pc
Screw 4pcs
Converter 1pc
Hanging Mount 2pcs
