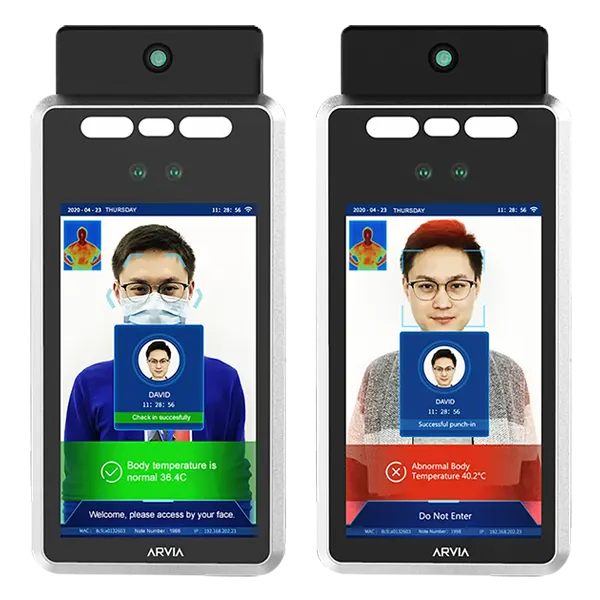

AI ULTRA-PRECISION HUMAN BODY
ENSURE SAFETY DURING RESUMPTION OF PRODUCTION COMBAT THE EPIDEMIC EFFECTIVELY

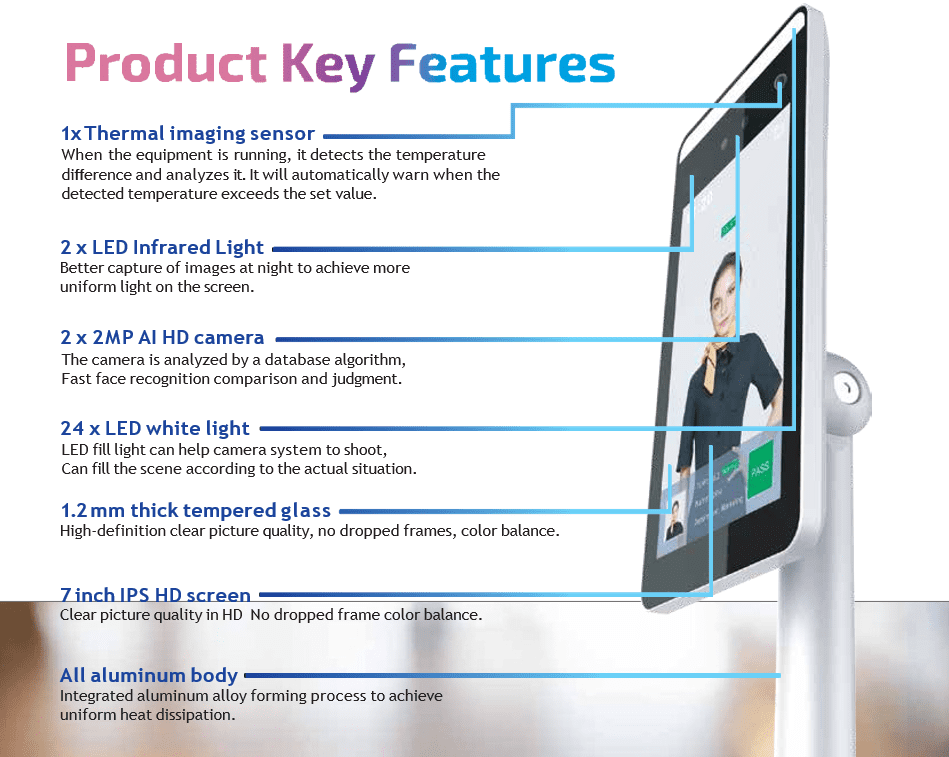

Key Features
Specifications
Dimensions | 7 inch IPS HD LCD screen |
Resolution | 736*1280 |
Main Processor | MX3520 |
Operating System | Embedded LINUX |
RAM | DDR3 512MB |
ROM | EMMC 8GB |
CAMERA
Type | 2MP night vision living detection camera |
Sensor | 1/5" GC2145 |
Resolution | NIR 800*600 15fps |
Lens | 2.4mm |
CAMERA 2
Type | Daily camera |
Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307 |
Resolution | Color 1920*1080 30fps |
Lens | 4.5mm |
BODY TEMPERATURE DETECTION
Measuring site | Forehead |
Temperature range | 36-42 ℃ |
Temperature measuring distance | 0.5-1.3m, 0.75m is the best |
Temperature measurement accuracy | ± 0.3℃ |
Temperature measurement response | Face library people: 1.5-2s, Strangers: 2.5-3s |
FACE RECOGNITION
Detection Type | Support living detection, Mask detection |
Face recognition distance | 0.5-1.5m |
Face database capacity | Max support 30,000 faces |
Face Posture | (Daytime) vertical viewing 58°-60°, horizontal viewing 35°; (Living body) vertical viewing 48°-50°, horizontal viewing 36° |
Occlusion | Ordinary glasses and short sea retention have no effect on recognition. |
Expression | Under normal circumstances, slight expressions do not affect recognition. |
Response Speed | About 200ms |
Face exposure | Support |
Local Storage | Support storage of 25,000 records |
Recognition area | Full image recognition |
Upload Method | TCP, HTTP, MQTT |
NETWORK FUNCTIONS
Network protocol | IPv4, TCP/IP,HTTP |
Security Mode | Authorized username and password |
Event linkage | Voice broadcast，Abnormal event upload to the platform |
System Upgrade | Support remote upgrade |
INTERFACE
Network Interface | RJ45 10M/100M Network Adaptation |
Alarm Output | 1 Channel relay output(NC or NO) |
RS232 interface | Support |
RS485 interface | Support |
Wiegand interface | Support Wiegand 26, 34, 66 protocols |
Reset key | Support |
GENERAL
Housing | Metal body and braket, Plastic screen, IP66 |
Operating Temperature | -20 ° C ~ 60 ° C |
Working humidity | 10% -90% Non-condensing |
Storage Temperature | -40 ° C ~ 70 ° C |
Storage humidity | 5% -95% Non-condensing |
Power Supply | DC12V |
Power dissipation (maximum) | = 12 W |
Dimensions (mm) | 219 (W) * 111 (H) * 21.5 (T) |
Bracket size (mm) | φ27*189 Extension rod φ27*390 |
Installation Method | Desktop Installation/Floor Support Installation |
Supplementary light | IR light, LED white light |
Audio out | Built in Speaker support voice broadcast after successful recognition |
