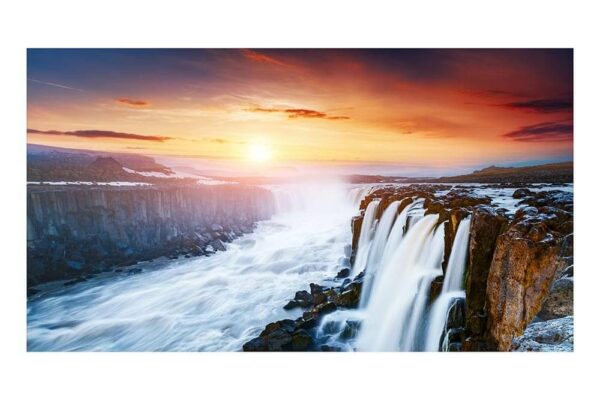

razor thin bezels video wall samsung vhr r series 002
razor thin bezels video wall samsung vhr r series 003
razor thin bezels video wall samsung vhr r series 004
razor thin bezels video wall samsung vhr r series 006

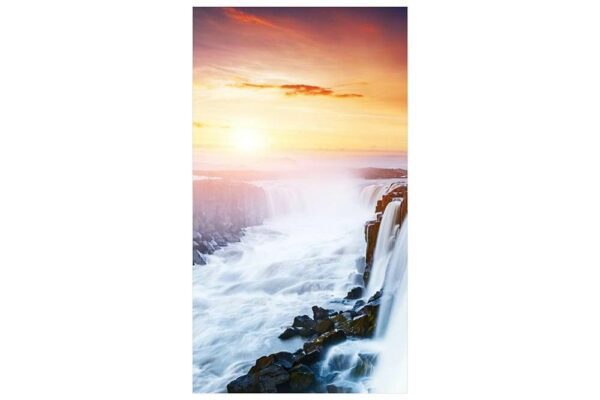

razor thin bezels video wall samsung vhr r series 007
razor thin bezels video wall samsung vhr r series 008
razor thin bezels video wall samsung vhr r series 009
razor thin bezels video wall samsung vhr r series 010

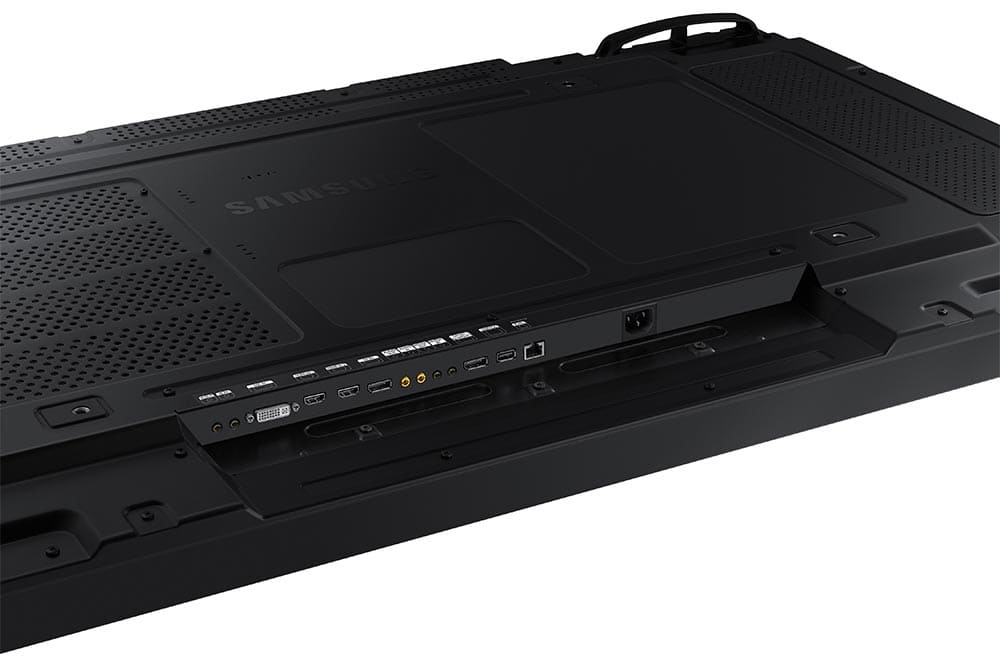

razor thin bezels video wall samsung vhr r series 011

SAMSUNG VHR-R Series

Videowall

Seamless video walls with razor-thin bezels.

Razor-thin 0.44mm even bezel design delivers one immersive, seamless image.
Wide viewing angles enable clear image presentation for more viewers in large spaces
700 nit brightness and non-glare panel provide high visibility 24/7.
Picture enhancement technology delivers optimized visuals

Tag: Samsung

Description

Descriptions

video wall ultra narrow videowall lcd samsung vm55t u cover
Play Video

Key Features

Seamless video walls with razor-thin bezels

With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHR-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.

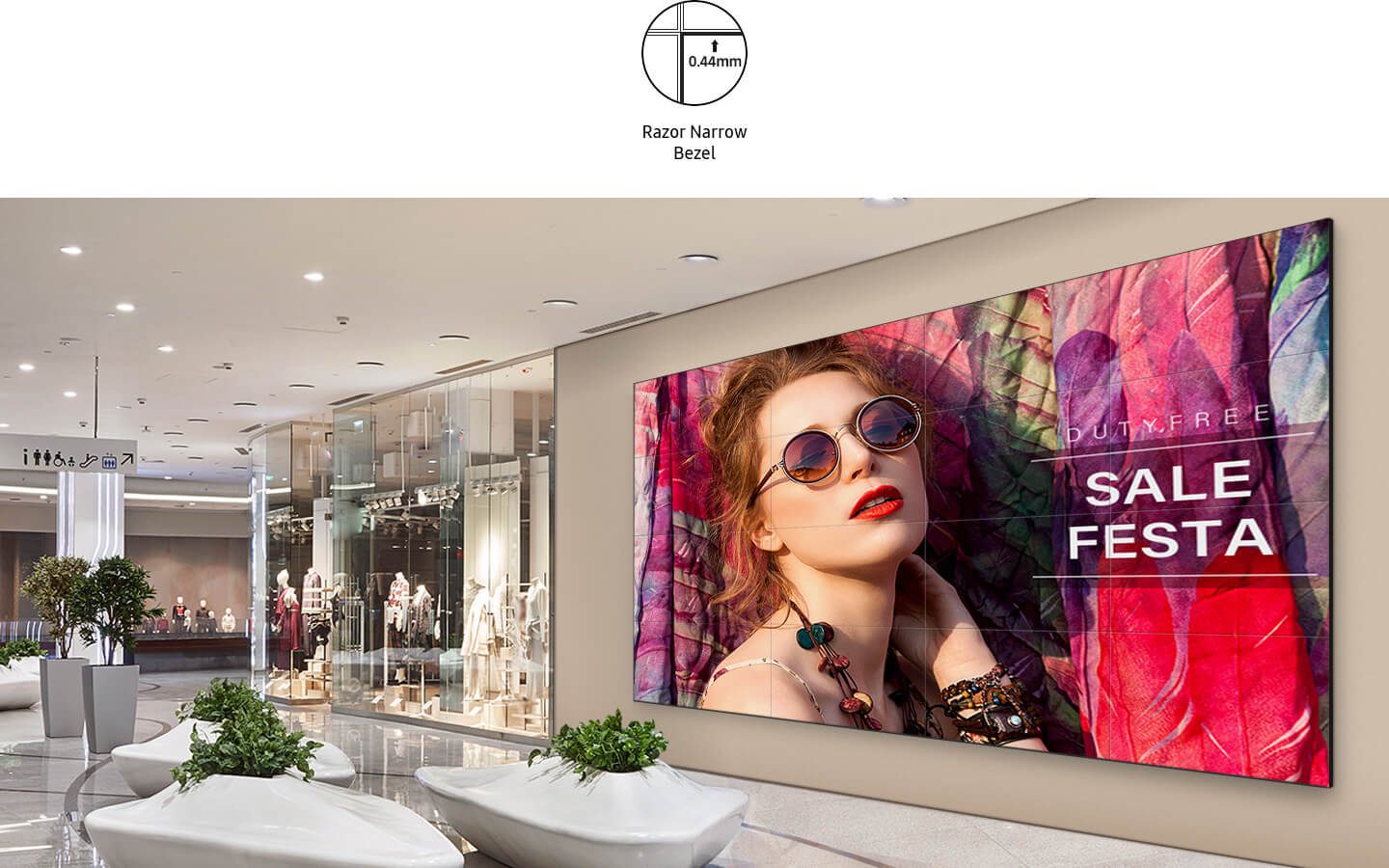

Nearly invisible 0.44 mm bezel

An Exceptionally thin 0.44mm even bezel — a 0.88 mm bezel-to-bezel depth — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.
razor thin bezels video wall samsung vhr r series 013

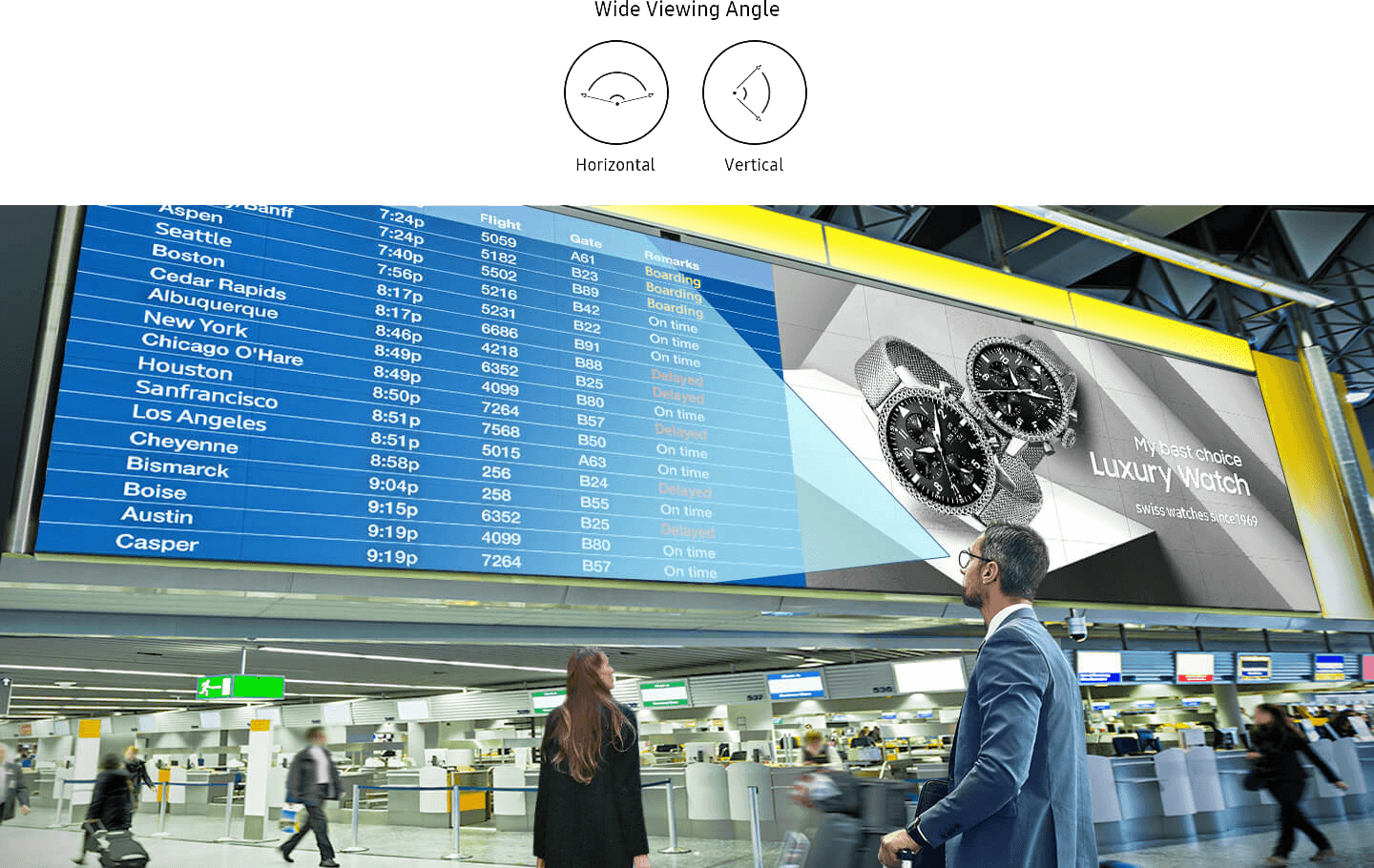

View content from any angle

The display’s wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear and accurate information regardless of video wall layout or location.
razor thin bezels video wall samsung vhr r series 014

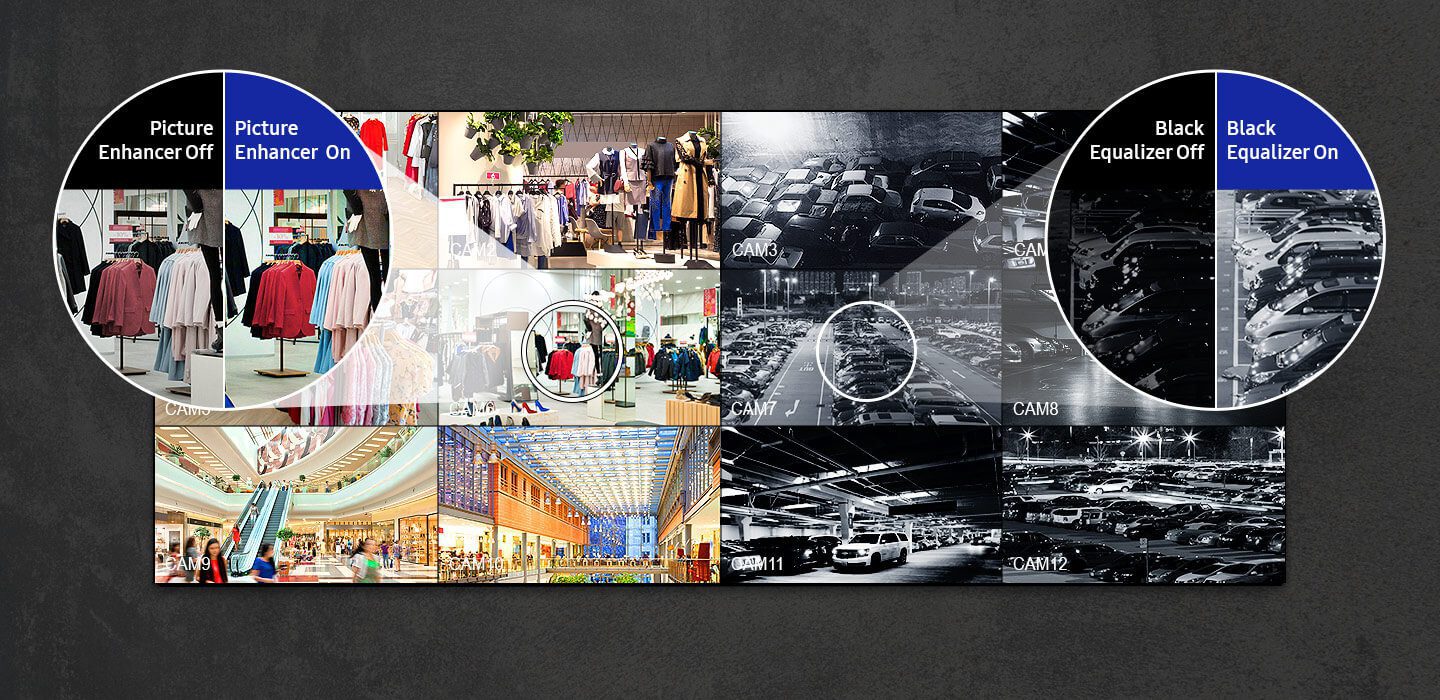

Image enhancement technology

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, so details are easier to see.
razor thin bezels video wall samsung vhr r series 015

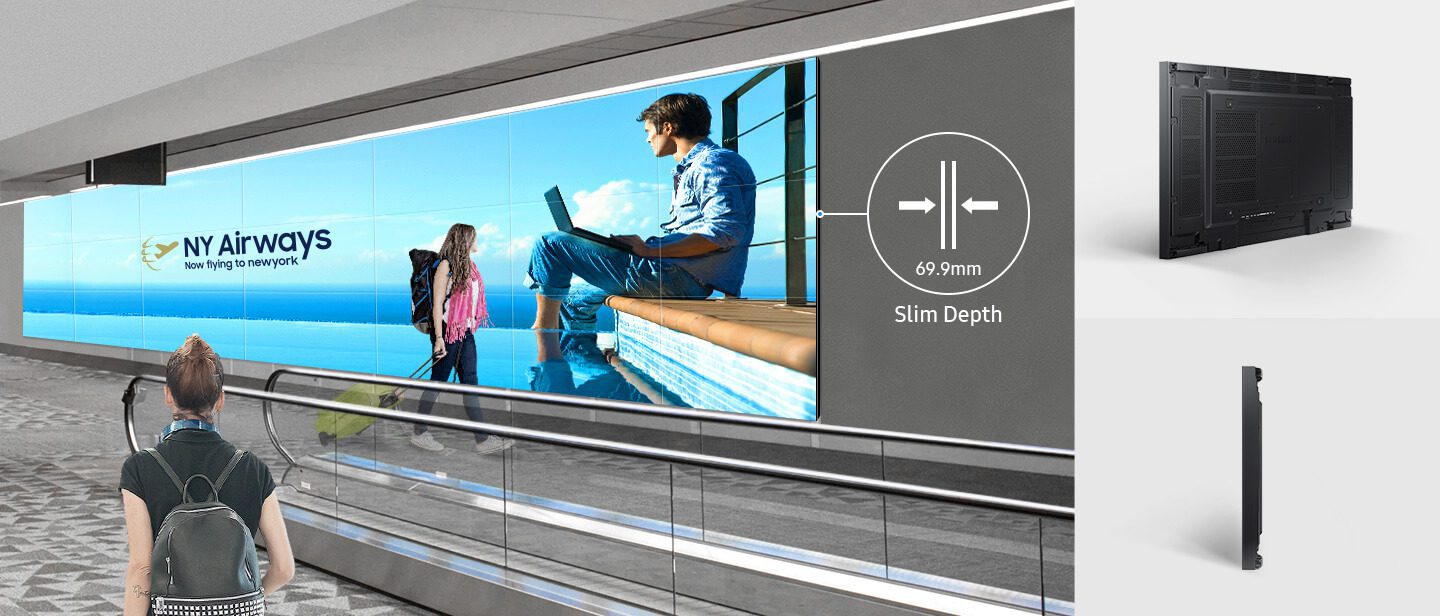

Modern, slim design

VHR-R displays feature an elevated design aesthetic with an ultra-slim depth of less than 70 mm. This allows the display to save space and create a clean, modern look for retail or other public spaces.
razor thin bezels video wall samsung vhr r series 016

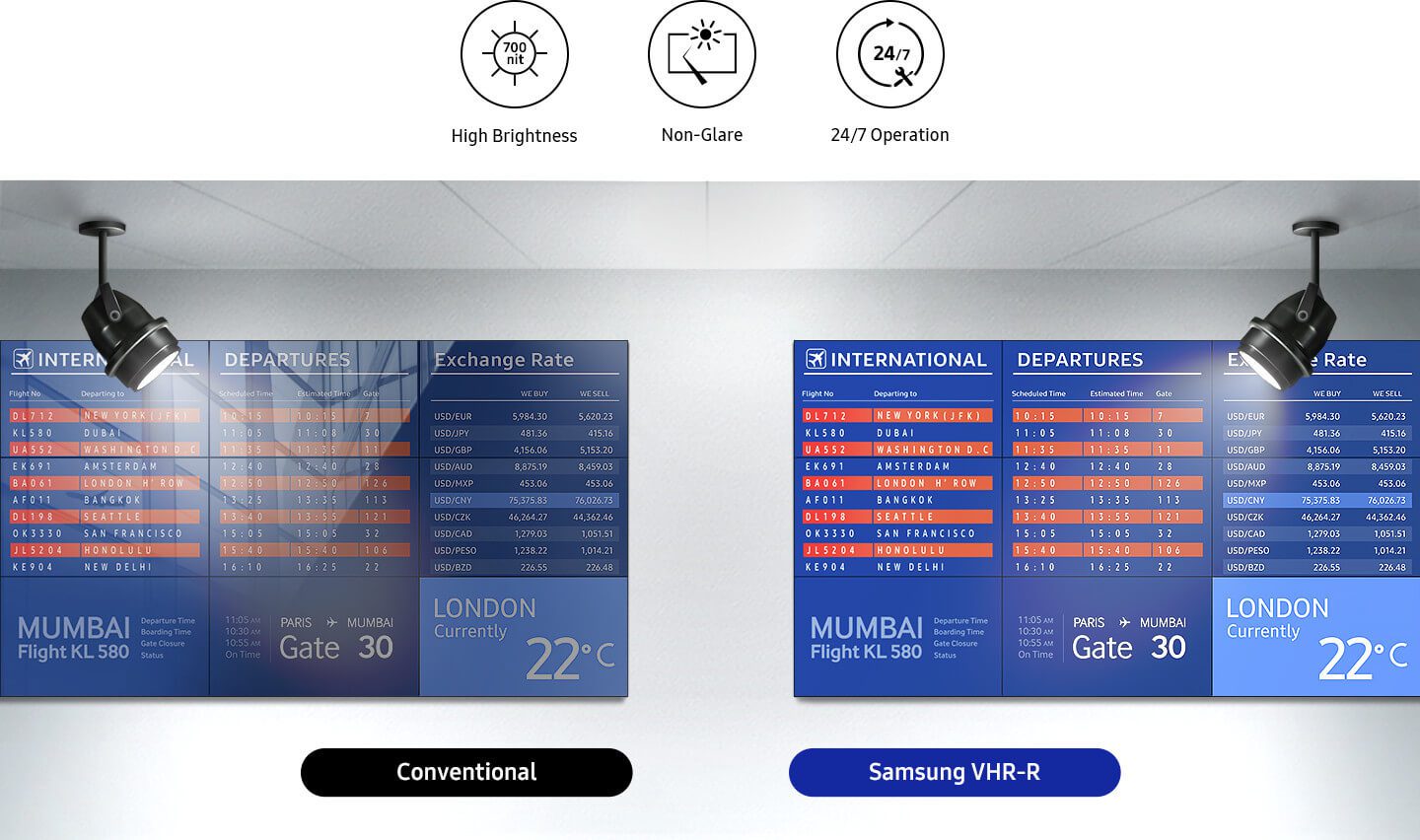

Vibrant images 24/7

Experience brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The display’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.
razor thin bezels video wall samsung vhr r series 017

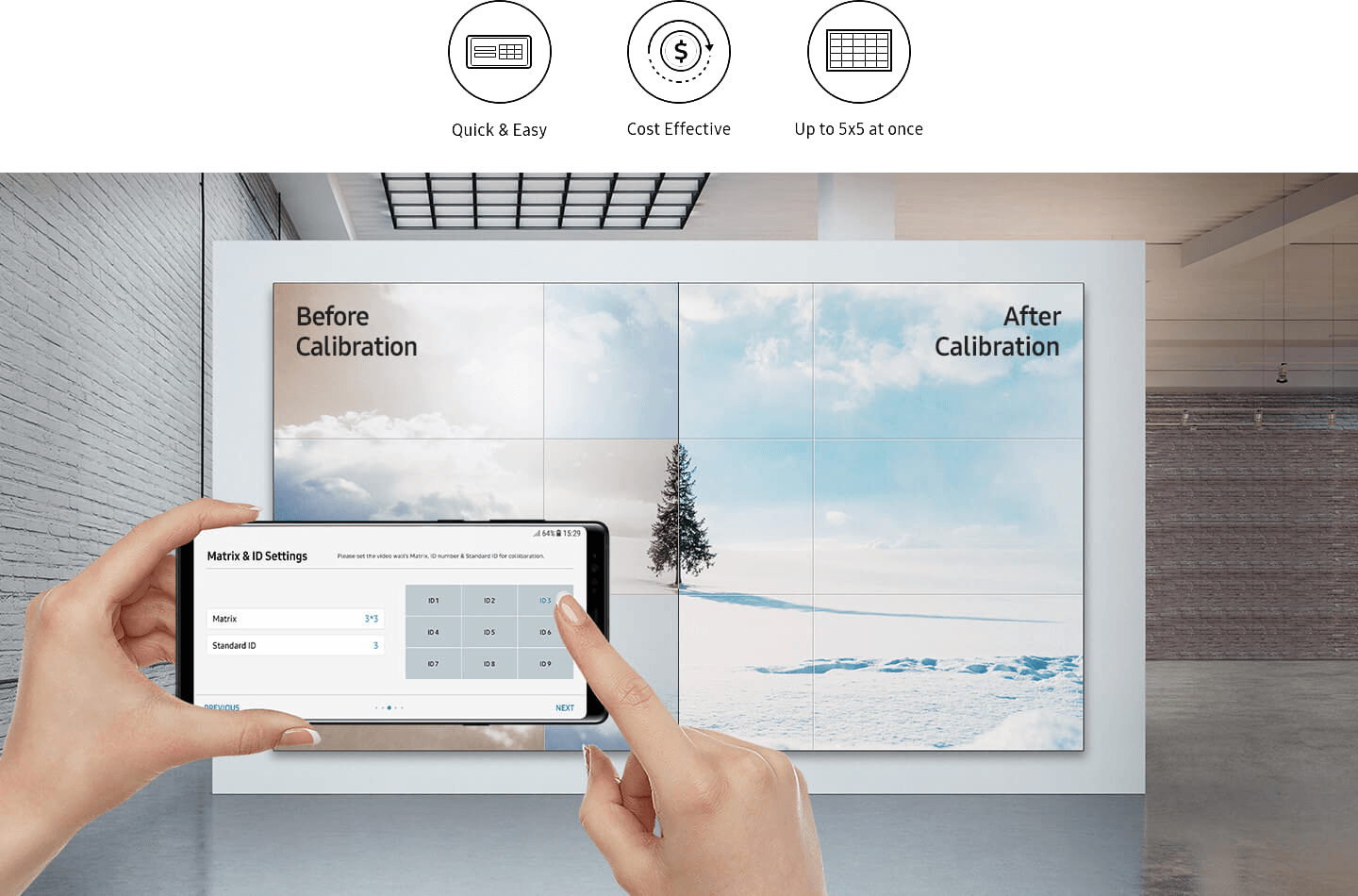

Convenient mobile calibration

Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5×5 video wall’s white balance simultaneously without the need for additional equipment.

razor thin bezels video wall samsung vhr r series 018

*Samsung Color Export Pro Mobile is only available on certain smartphone models.

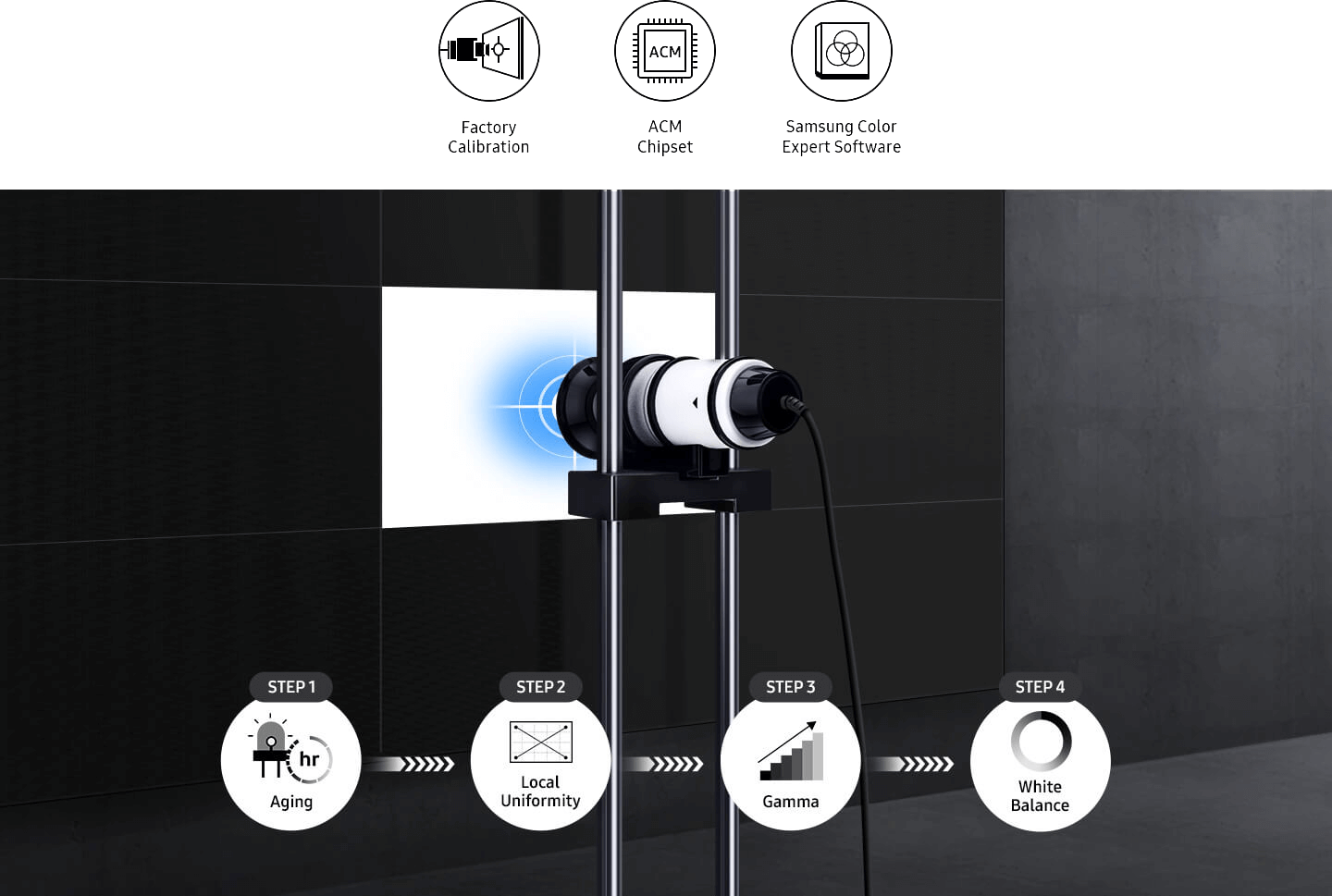

Comprehensive calibration

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung’s Color Expert Pro, a powerful free software program.

razor thin bezels video wall samsung vhr r series 019

Advanced UHD presentation

Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHR-R display can project UHD content across multiple screens up – to 5 x 5 – without requiring an external graphic card or UHD splitters.

razor thin bezels video wall samsung vhr r series 020

Industry standard certified

The VHR-R series is EMC class B compliant, ensuring a safe viewing environment by meeting strict standards of electromagnetic wave emission. The display packaging also passed a rigorous 4-step test in an ISTA-certified laboratory designed minimizes possible damage during delivery.
razor thin bezels video wall samsung vhr r series 021

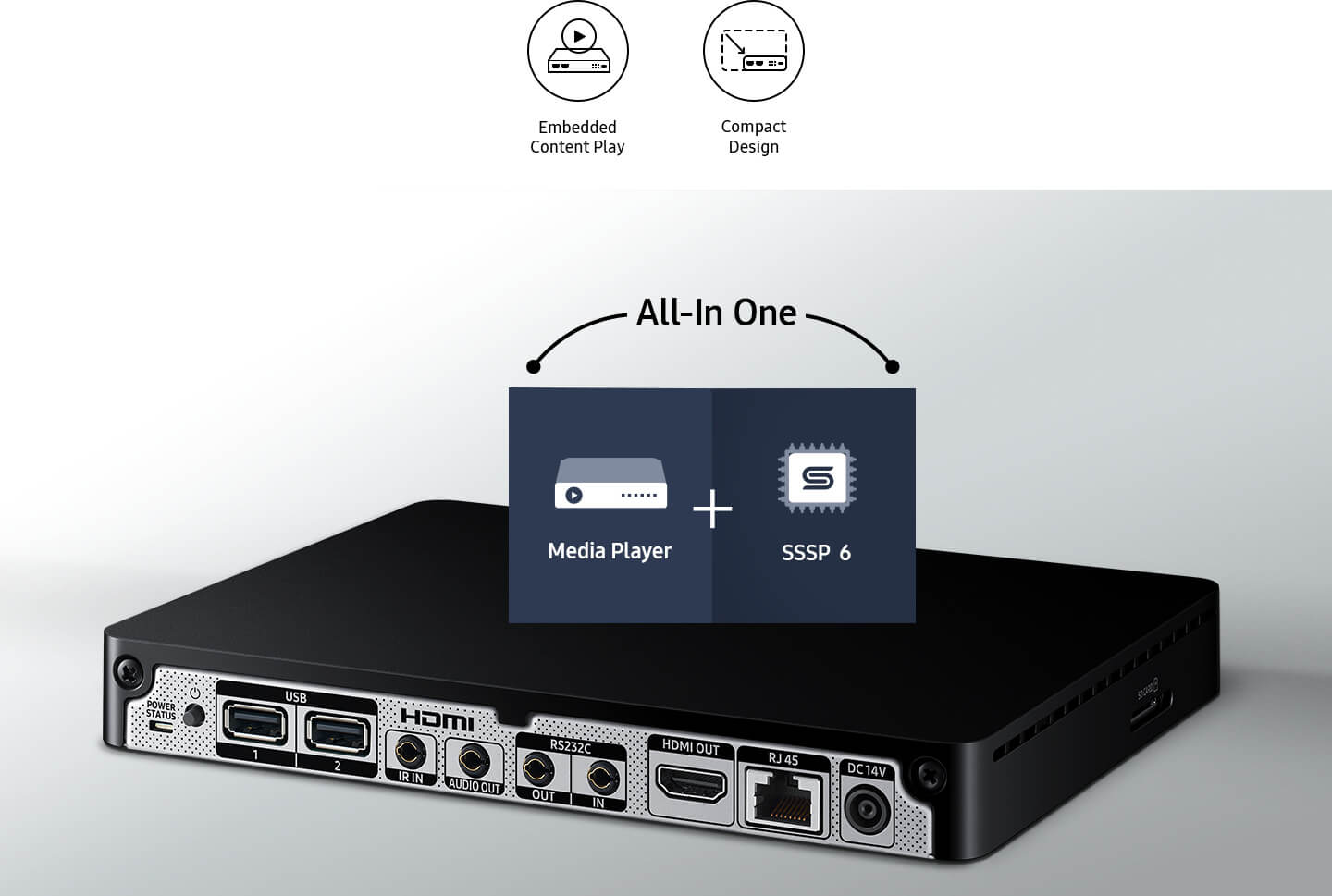

Intuitive all-in-one operations

The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.
razor thin bezels video wall samsung vhr r series 001

Specifications

PANEL

Input
RGB DVI-D, Display Port 1.2

Video HDMI 2.0 (2)

HDCP HDCP 2.2

Audio Stereo mini Jack

USB Only F/W upgrade



Output
RGB DP1.2(Loop-out)

Audio Stereo mini Jack

External Control RS232C(in/out), RJ45

External Sensor Detachable type(IR)



DISPLAY

Dynamic C/R 30,000:1

H-Scanning Frequency 57.3kHz ~ 70kHz

V-Scanning Frequency 48Hz ~ 75Hz

Maximum Pixel Frequency 78MHz



CONNECTIVITY

Input
RGB DVI-D, Display Port 1.2

Video HDMI 2.0 (2)

HDCP HDCP 2.2

Audio Stereo mini Jack

USB Only F/W upgrade

Output
RGB DP1.2(Loop-out)

Audio Stereo mini Jack

External Control RS232C(in/out), RJ45

External Sensor Detachable type(IR)



POWER

Type Internal

Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption
Max[W/h] 270

Typical[W/h] 153

BTU(Max) 921

Sleep mode less than 0.5W

Off mode less than 0.5W



OPERATION

Operating Temperature 10 ℃ ~ 40 ℃

Humidity 10 % ~ 80 %



CERTIFICATION

Safety
UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1

EMC
FCC (USA) FCC Part 15, Subpart B class B CE (Europe) EN55022, EN55024 VCCI (Japan) VCCI CISPR32:2016 KCC (Korea) :KN32, KN35 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS CISPR32:2015 CCC(China) :GB9254-2008, GB17625.1-2012

IP Rating
IP5X



MEDIA PLAYER

Media Player Signage player box

Dimension (mm)
Set 1211.0 X 681.7 X 69.9

Package 1414.0 X 844.0 X 257.0

Weight (kg)
Set 16.8kg

Package 25.1kg

VESA Mount (mm) 600 * 400 (mm)

Bezel Width (mm) 0.44mm (Even)

Key Features Razor Narrow Bezel

Orientation N/A

Remote Control N/A

Special Features ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class B

Internal Player
Processor N/A

On-Chip Cache Memory N/A

Clock Speed N/A

Main Memory Interface N/A

Graphics N/A

Storage (FDM) N/A

Multimedia N/A

IO Ports N/A

Operating System N/A

Included

Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR
