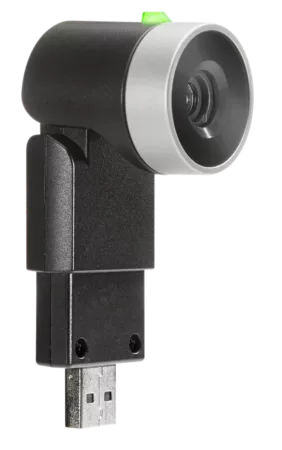

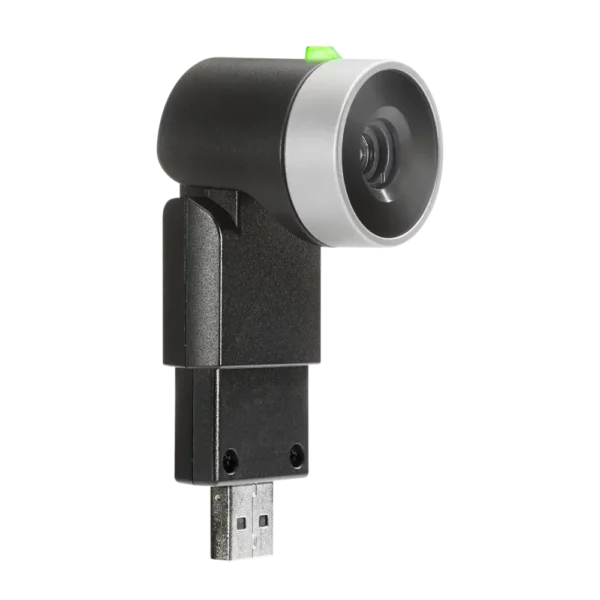

Polycom Eagle Eye Mini Camera

Video Conferencing

• Ideal for personal and small room environments.
• Resolution HD 1080p video, 4 mega pixel sensor
• electronic pan, tilt, 4x electronic zoom, 73.7° HFoV/ 82°DFoV
• Automatic exposure and white balance
• Autofocus, 8cm-infinity
• Plug and Play setup

Tag: Polycom

Description

Descriptions

Polycom_videoconference_EagleEyeMini
Polycom_videoconference_EagleEyeMini
Polycom_videoconference_EagleEyeMini

BIG PERFORMANCE. SMALL PACKAGE.

Crisp, clear video is the perfect complement to Poly’s superior sound. Now you can get it in a camera built for small spaces. The EagleEye Mini USB camera adds business-class HD video to computers and conference room solutions—pair it with the Trio 8800, Trio 8500, VoxBox or VVX 501/601. Better camera, better collaboration.

Key Features

BUSINESS-CLASS HD VIDEO

1080p video, electronic pan, tilt and 4x zoom for an image that remains at the highest capable resolution even when it is fully zoomed during video conference

Polycom_videoconference_EagleEyeMini
rm373batch4 15

RELIABLE SECURITY

integrated privacy shutter and video mute/unmute LED indicator

COMPACT DESIGN

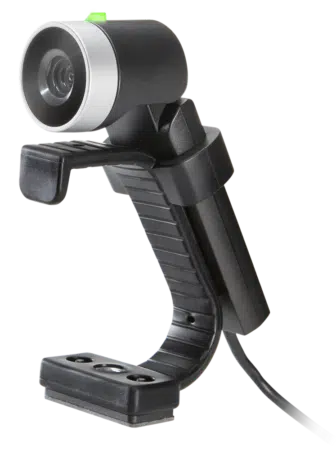

The EagleEye Mini camera mounts on the wall or on the top or the bottom of a display, for comfortable eye-contact for everyone in the room during video conference.

Polycom_videoconference_EagleEyeMini
Polycom_videoconference_EagleEyeMini

SIMULCAST STREAMS

Simulcast video streams for remote participants best possible video experience

Specifications

VIDEO STANDARD

  • H.264 AVC, H.264 high profile encoding
  • H.264 SVC for Skype for Business encoding
  • RGB and YUV raw video



BANDWIDTH

  • 280 Mbps max transmit bitrat



CONTENT VIDEO RESOLUTION

  • 24-bit true color
  • Supports up to 1080p @ 30fps transmit video (H.264)
  • Multicast video streams



CAMERA

  • f/2.0 aperture
  • 4 mega pixel sensor
  • Vertical tilt angle adjustable from +6° (up) to –22° (down)
  • 73.7° HFoV/ 82°DFoV
  • Automatic exposure and white balance
  • Autofocus, 8cm-infinity
  • 4x electronic zoom (1.4x lossless)



COMPLEMENTS THESE AUDIO SOLUTIONS

  • VVX® 601 v 5.87.1 or above
  • VVX® 501 v 5.8.1 or above
  • Trio™ 8500* v 5.7.1 or above
  • Trio™ 8800* v 5.7.1 or above
  • RealPresence® Desktop for Windows® and Mac® v 3.9.0 or above
  • VoxBox v 1.0.1 or above
  • *Requires Polycom Trio™ Visual+



SUPPORTED VIDEO COMMUNICATION CLIENTS

  • Polycom RealPresence Desktop
  • BroadSoft UC-One Communicator
  • Skype for Business (certified by Microsoft)
  • Zoom



CAMERA FIRMWARE UPDATES

  • The EagleEye Mini USB camera receives firmware updates through software updates for the connected VVX business media phone or Polycom Trio system.



INTERFACE

  • USB 2.0 (UVC 1.5 and UVC 1.1 compliant)



POWER

  • 5V @ <500mA via USB port



APPROVALS

  • FCC Part 15 (CFR 47) Class B
  • ICES-003 Class B
  • EN55032 Class B
  • CISPR32 Class B
  • VCCI Class B
  • EN55024
  • EN61000-3-2; EN61000-3-3
  • Korea KCC
  • ROHS compliant
  • Russia EAC
  • Australia C Tick



SAFETY

  • UL 60950-1
  • UL 62368-1
  • CE Mark
  • CAN/CSA-C22.2 No. 60950-1-03
  • EN 60950-1
  • EN 62368-1
  • IEC 60950-1
  • IEC 62368-1
  • AS/NZS 60950-1



OPERATING CONDITIONS

  • Temperature: +32 to 104°F (0 to 40°C)
  • Relative Humidity: 5% to 95%, noncondensing



STORAGE TEMPERATURE

  • –40 to +160°F (–40 to +70°C)
