Multiple Splicing Modes
Arbitrary display of 8 images
VPX-500 can simultaneously display 8 same or different signal images on the splicing screen, and size, location and hierarchical relationship of each image can be adjusted independently.

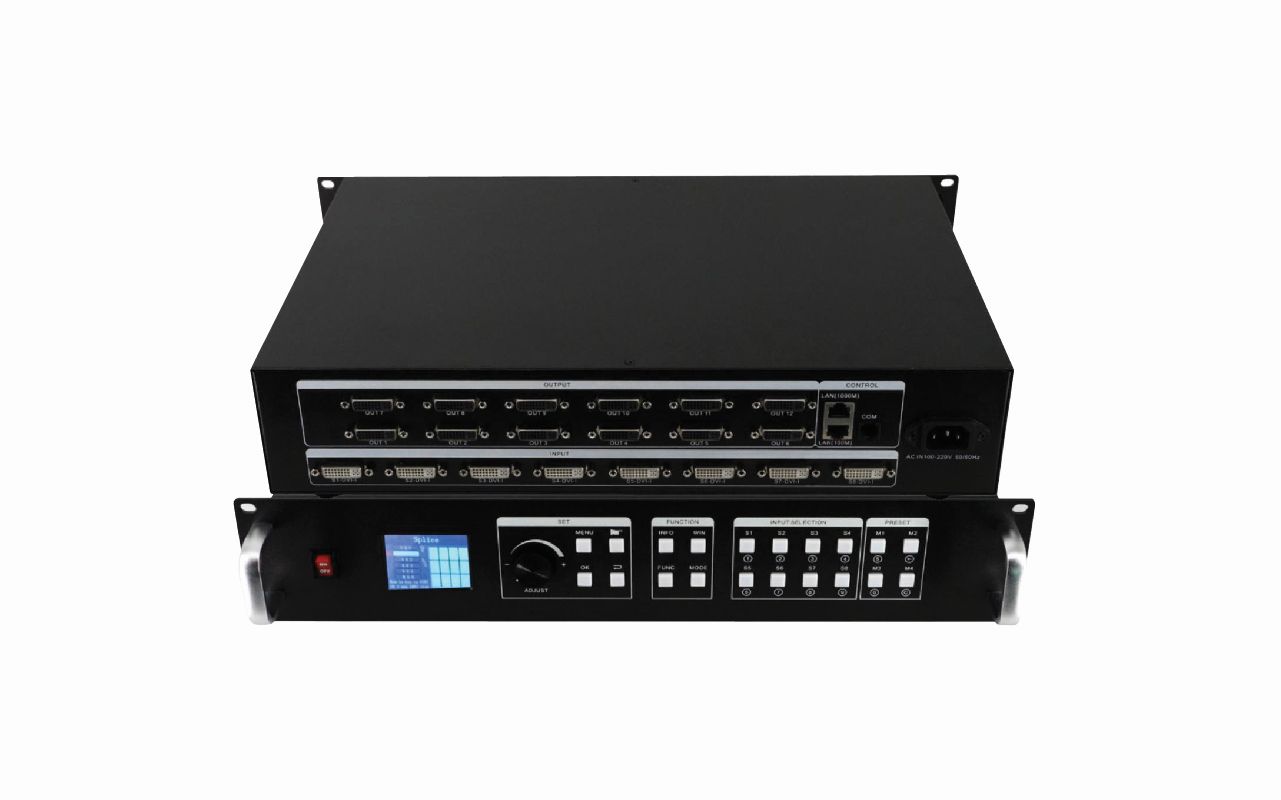

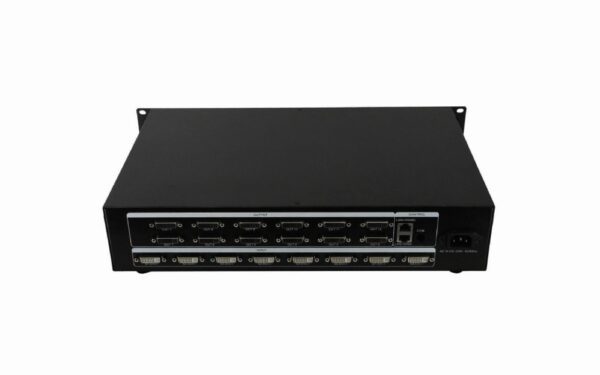

Matrix Switcher Videowall Controller – VPX500
➢ Support arbitrary stitching of up to 12 LCDs or DLPs
➢ 8 DVI-U inputs (DVI-U supports DVI/HDMI/VGA/CVBS)
➢ Arbitrary layout of 8 images
➢ Keys and color display screen on the front panel, allowing quicksetting
without soware installed
➢ Support signal echoing and view real-me input and output signals by soware,
enabling WYSIWYG
➢ All 60Hz image processing, achieving smooth and non-tearing images
➢ Support output port mapping, allowing blind mating
Descriptions
Fixed Videowall Controller / Processor
VPX-500P is a high performance video processing workstation with pure hardware architecture for spectacular video wall displaying which can be employed in fields including education and research, government announcement, information publishing, exhibition and show, controlling and commanding center, security monitoring, etc.
Key Features
CrossInt smart synchronous splicing
VPX-500 has adopted the CrossInt smart splicing technology specially designed for splicing
display and all display modules are locked by BeingHD FST technology before synchronous
output, eliminating the asynchronous display between contents of multiple modules.
8 DVI-U inputs
Equal to DVI-I, DVI-U, however, increases flexibility and may cover mulple digital and analog
signals. VPX-500 supports 8 DVI-U inputs, which can receive DVI, HDMI, VGA and CVBS signals.
Support output port mapping, allowing blind-mate
VPX-500 supports output port mapping, allowing casual connection of 12 output ports without considering the physical and logic locations of the display unit. Users can directly adjust logic locations through equipment or
BeingHD soft keys to make the splicing wall display images correctly.
Ethernet monitoring and preview
Users may obtain the real-time signals of VPX-500 by means of the BeingHD control soft keys in the computer, including the output images and preview of input signals. In this way, users may complete edition of the visualized display templates, thus realizingWYSIWYG software operation.
Full 60Hz Image Processing
VPX-500 provides full 60Hz perfect outputs that effectively resolve dynamic image ghosting caused by the low frame state and present sharp dynamic images.
Seamless Switching Between Signals
Support fade-in fade-out special effect or instant seamless switching of any signal, eliminating black
frame, blue screen and so on.
Specifications
VIDEO INPUT
Type DVI-U
Qty. 8
Description
·Support up to 1920×1200@60Hz, downward compatibility.
·Support DVI/HDMI/VGA/CVBS
·Compatible with HDMI1.3 and lower version, EDID version1.3
VIDEO OUTPUT
Type DVI-D (24+1)
Qty. 12
Description
·Support common output resolutions: 1024×768@60Hz ll 1920×1080@60Hz
.Support 60Hz/50Hz/30Hz output frame rates
Splicing Output
12 outputs support splicing mode of arbitrary form, such as: 3×4, 2×6etc.
Eight-image Display
Render 8 or fewer images on screen at the same time, which can come from the same or different input signals.
Each image can be freely zoomed and arranged. Images can overlap each other.
EthernetMonitoring
VPX-500 signal image can be gained on computer at real time by the control software which includes both input signal and output signal.
Special Effect Switch .
When switching signal, users can choose fade-out effect or quick direct switching
PC Control RS232/RJ45 Ethernet
Input Power 100-240 VAC, 47- 63 Hz, ≤2A
Work Environment Temp:0-40℃; Humid: 0-95%
Warranty Free repair within 2 years
Size (mm) 66(H)×432(L)×256(D)
Weight (Kg) 4
