LG VL5F Series

Seamless video walls with razor-thin bezels.

Razor-thin 0.44mm even bezel design delivers one immersive, seamless image.
Wide viewing angles enable clear image presentation for more viewers in large spaces
700 nit brightness and non-glare panel provide high visibility 24/7.
Picture enhancement technology delivers optimized visuals

Videowall Brand : LG

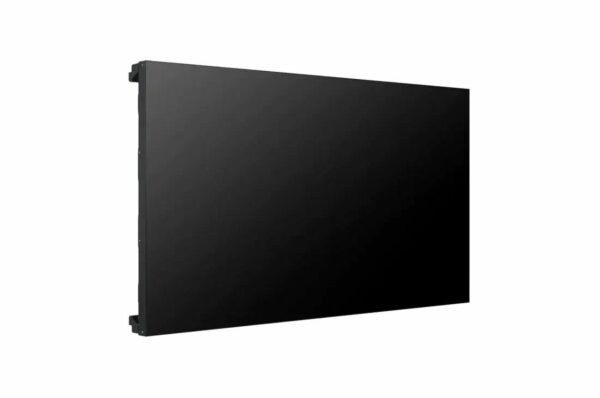

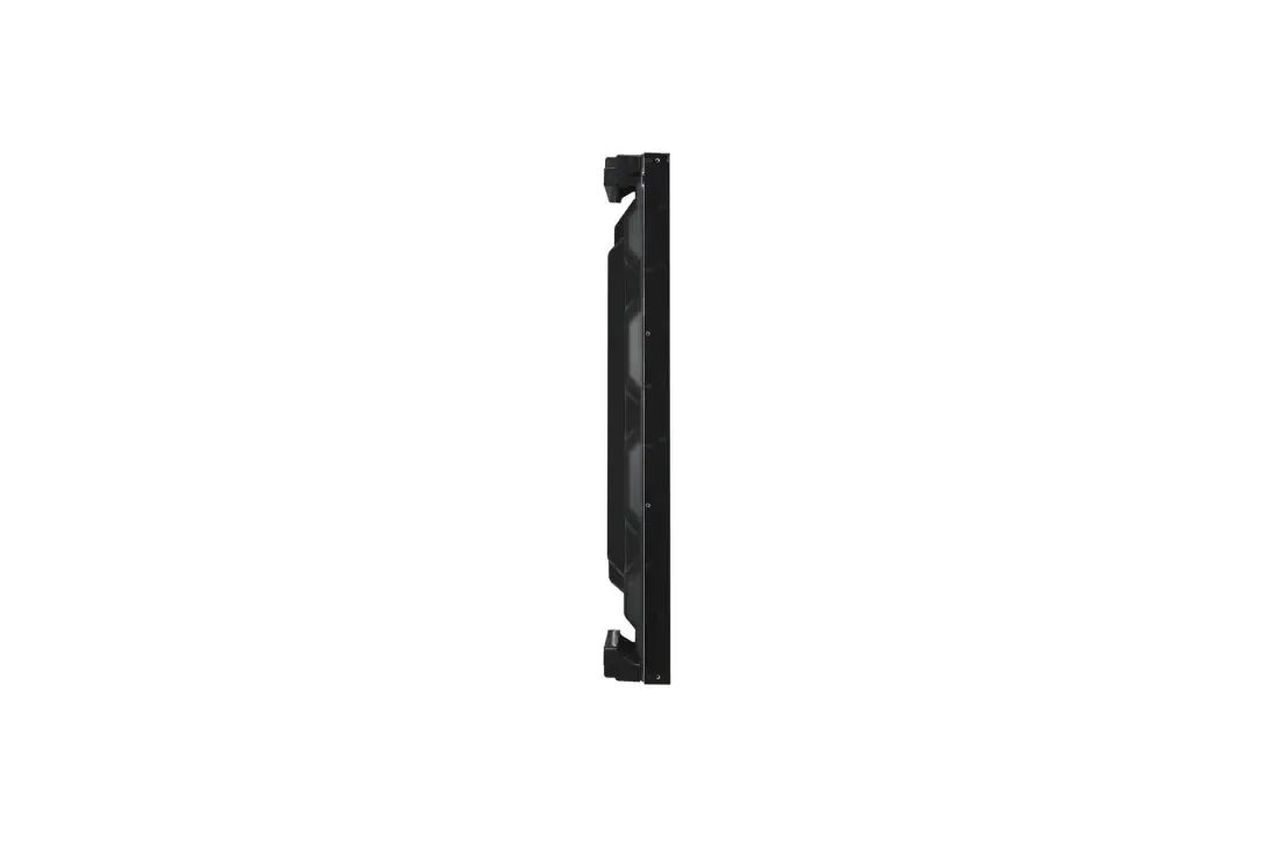

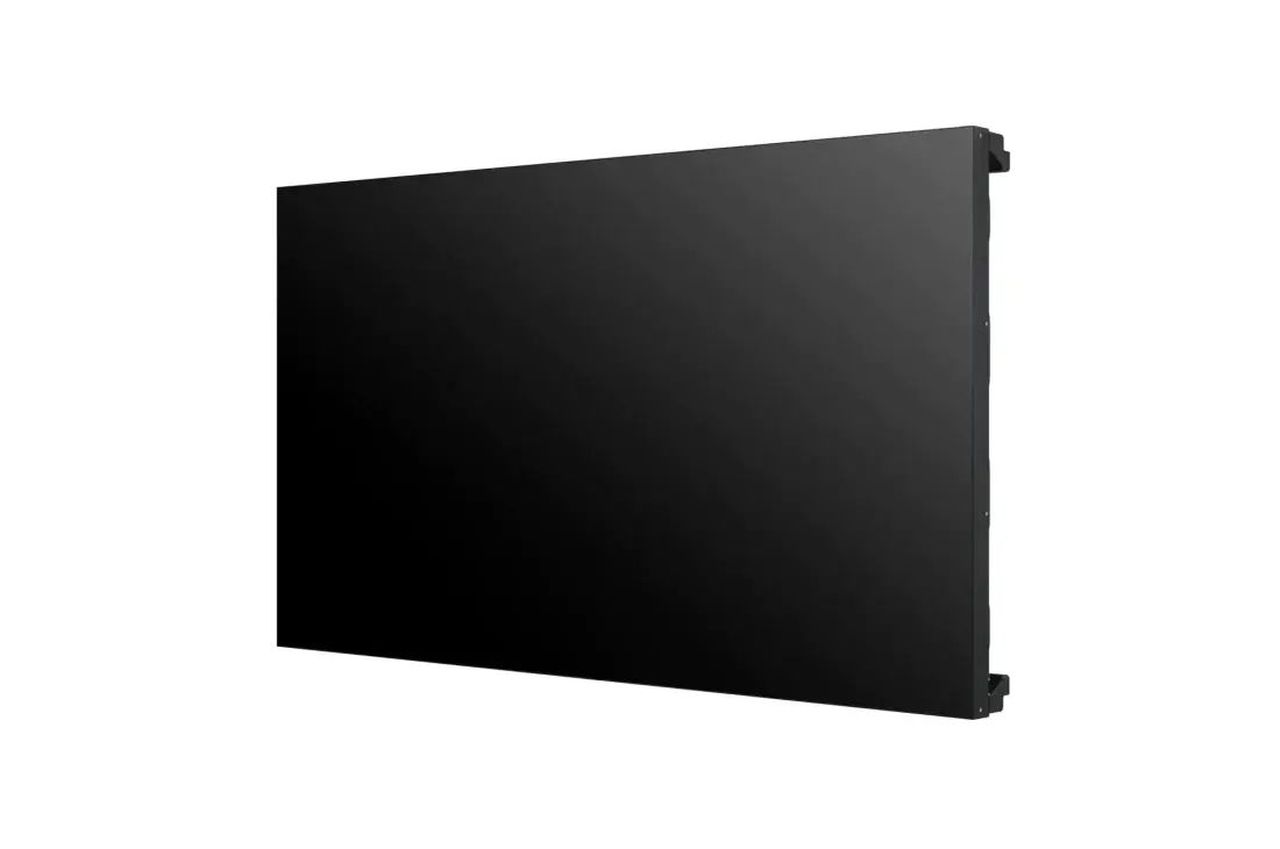

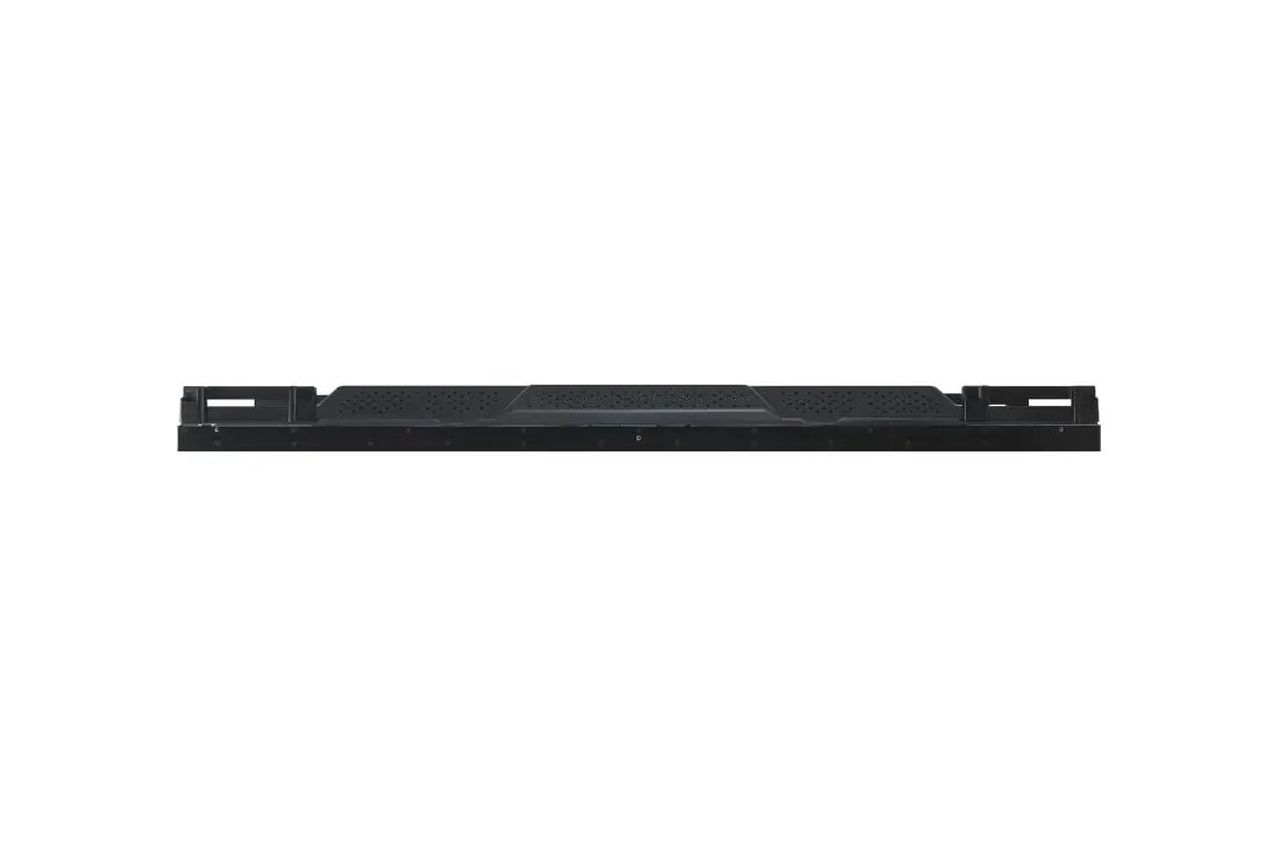

LG VL5F Series

LG VL5F Series - Image 2

LG VL5F Series - Image 3

LG VL5F Series - Image 4

LG VL5F Series - Image 5

LG VL5F Series - Image 6

Descriptions

Key Features

Achieving Incredible Immersion

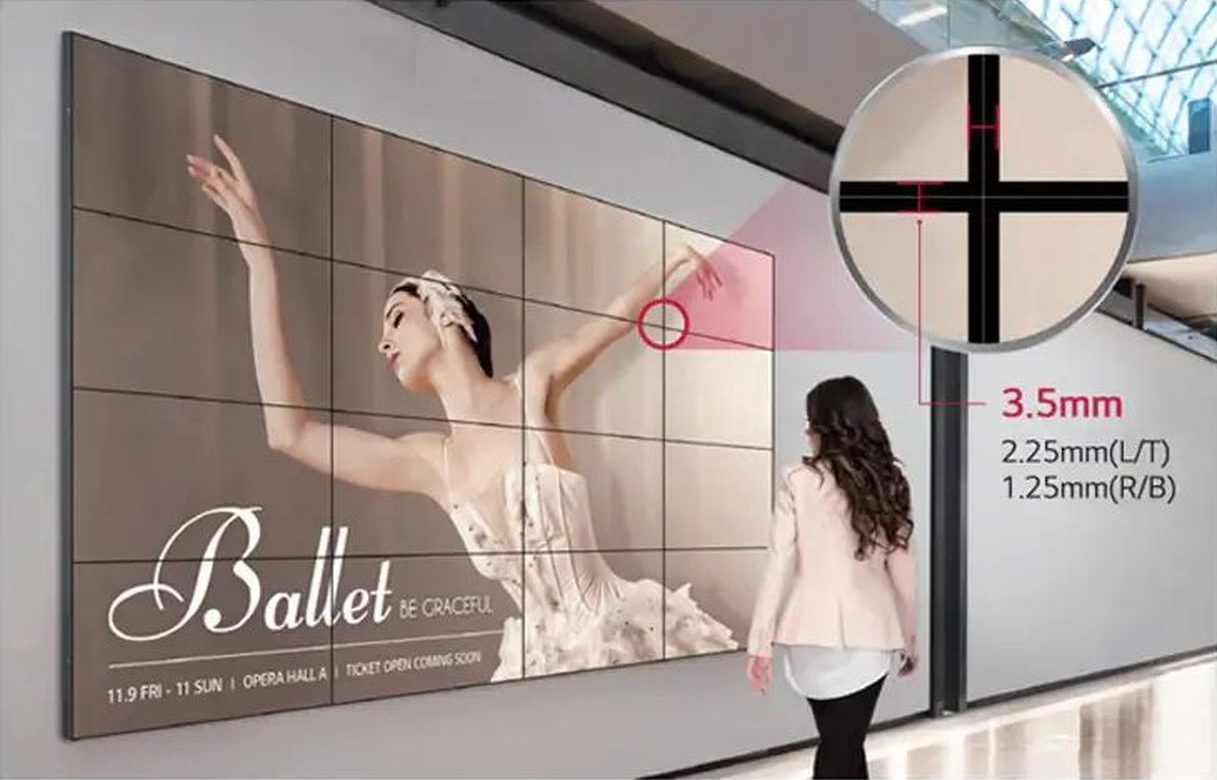

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

Achieving Incredible Immersion

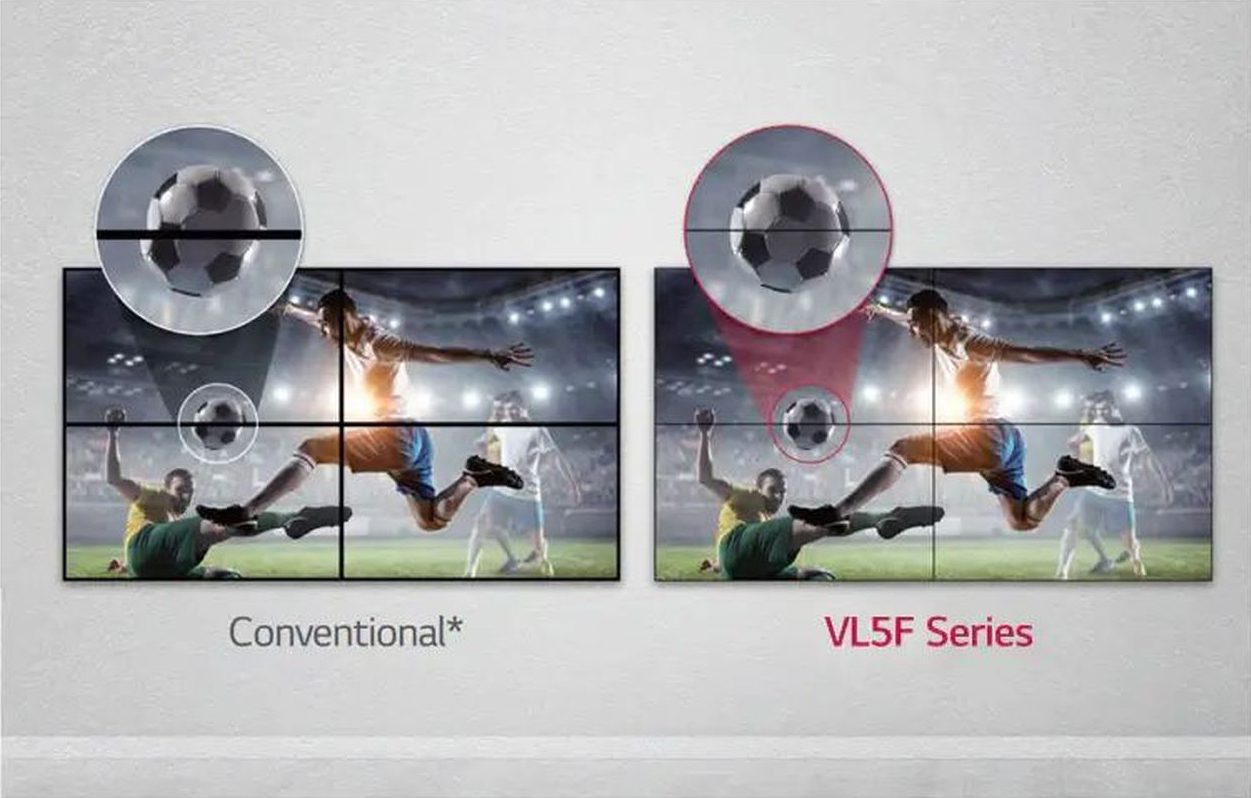

Image Gap Reduction

The VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The “Conventional” refers to displays which do not include an image improvement algorithm.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment

Vivid and Dynamic Picture Quality

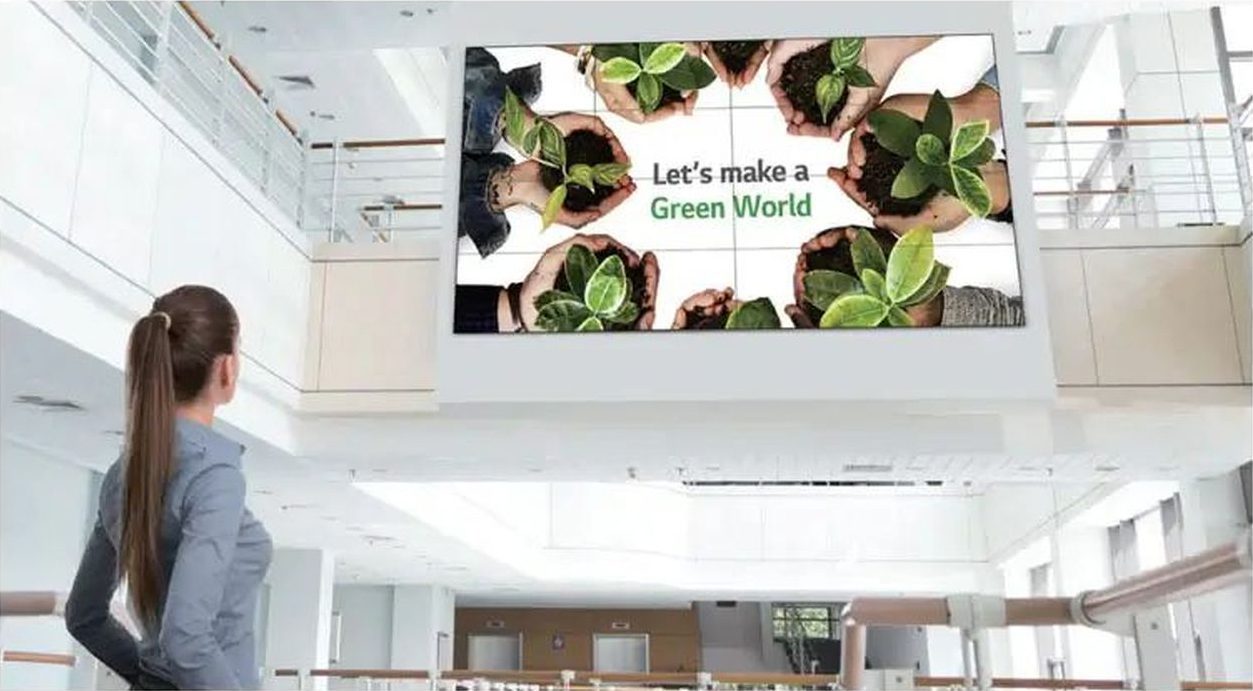

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5F series is high enough to display vivid colors throughout the screen with no distortion.

Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

User Convenience

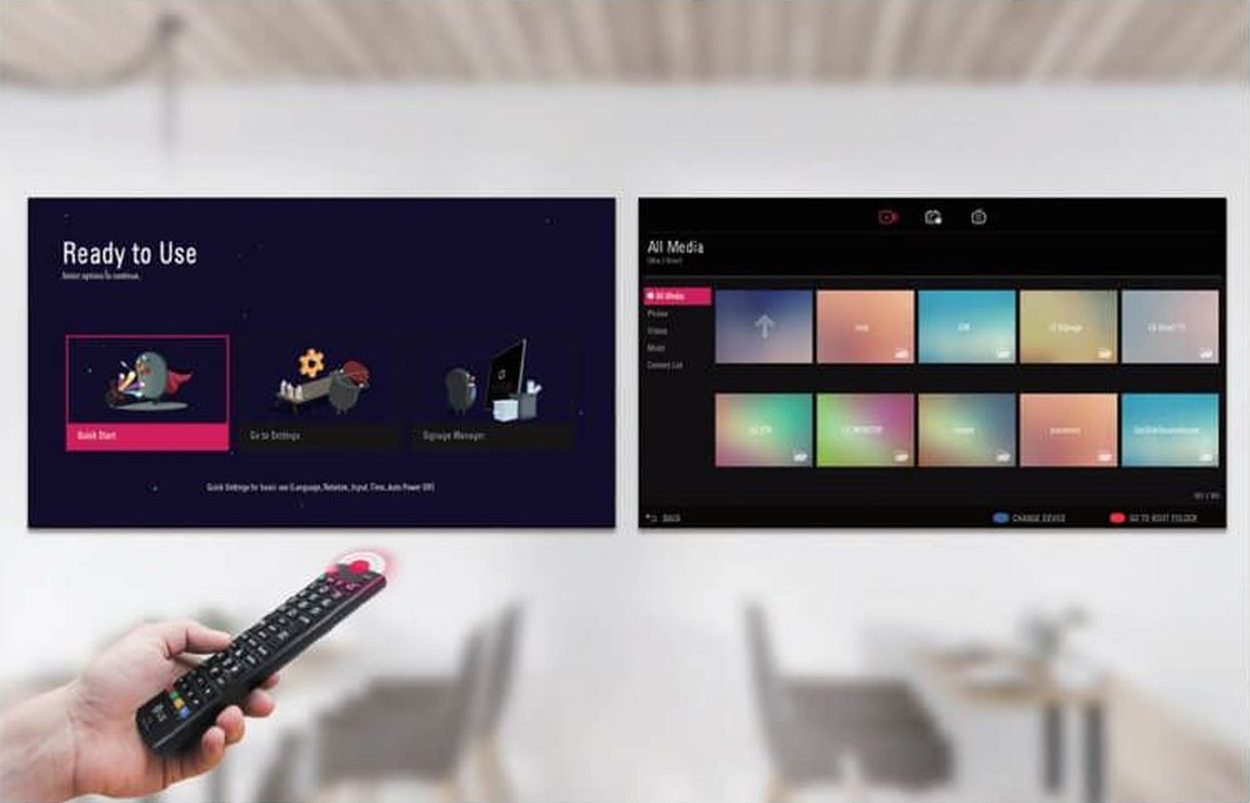

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

Specifications

PANEL

Screen Size 55"

Panel Technology IPS

Aspect Ratio 16 : 9

Native Resolution 1,920 x 1,080 (FHD)

Brightness(Typ.,cd/m²) 500

Contrast Ratio 1,200:1

Dynamic CR 500,000:1 (The luminosity ratio of Full Black/Full White color on video input condition.)

Viewing Angle (H x V) 178 x 178

Response Time 8 ms (G to G)

Surface Treatment 3%

Life time (Typ.) 60,000 Hrs

Operation Hours 24 Hrs

Orientation Landscape & Portrait

CONNECTIVITY

Input HDMI(2), DP, DVI-D, Audio, USB

Output DP, Audio

External Control RS232C In/out, RJ45(LAN) In, IR In

Operation Temperature 0°C to 40°C

Operation Humidity 10 % to 80 %

POWER

Power Supply 100-240V~, 50/60Hz

Power Type Built-In Power

POWER CONSUMPTION

Typ. / Max. 130 W / 150 W

Smart Energy Saving 62 W

CERTIFICATION

Safety CB / NRTL

EMC FCC Class "A" / CE / KC

ErP / Energy Star Yes (EU Only) / Energy Star 8.0

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible No

Bezel Color Black

Bezel Width 2.25 mm (T/L) / 1.25 mm(B/R)

Monitor Dimension (W × H × D) 1,213.4 x 684.2 x 93.1 mm

Weight (Head) 20.3kg

Carton Dimensions (W × H × D) 1,353 x 980 x 263 mm

Packed Weight 33kg

Handle Yes

VESA™ Standard Mount Interface 600 x 400 mm

Content Management Software SuperSign CMS

Control and Monitoring Software SuperSign Control/Control+

Basic Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
