Unilumin LED Display – UPANEL S Series

LED Screen

Intelligent front maintenance – software maintenance and smart bracelet induction maintenance
HDR highly dynamic display – stunning visual experience

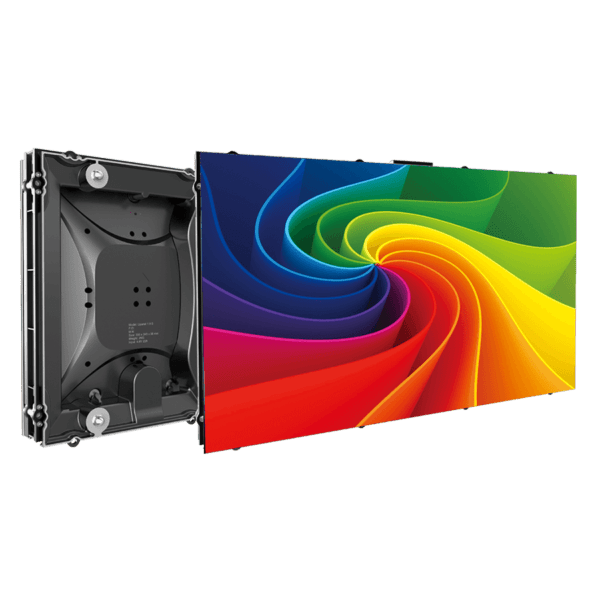

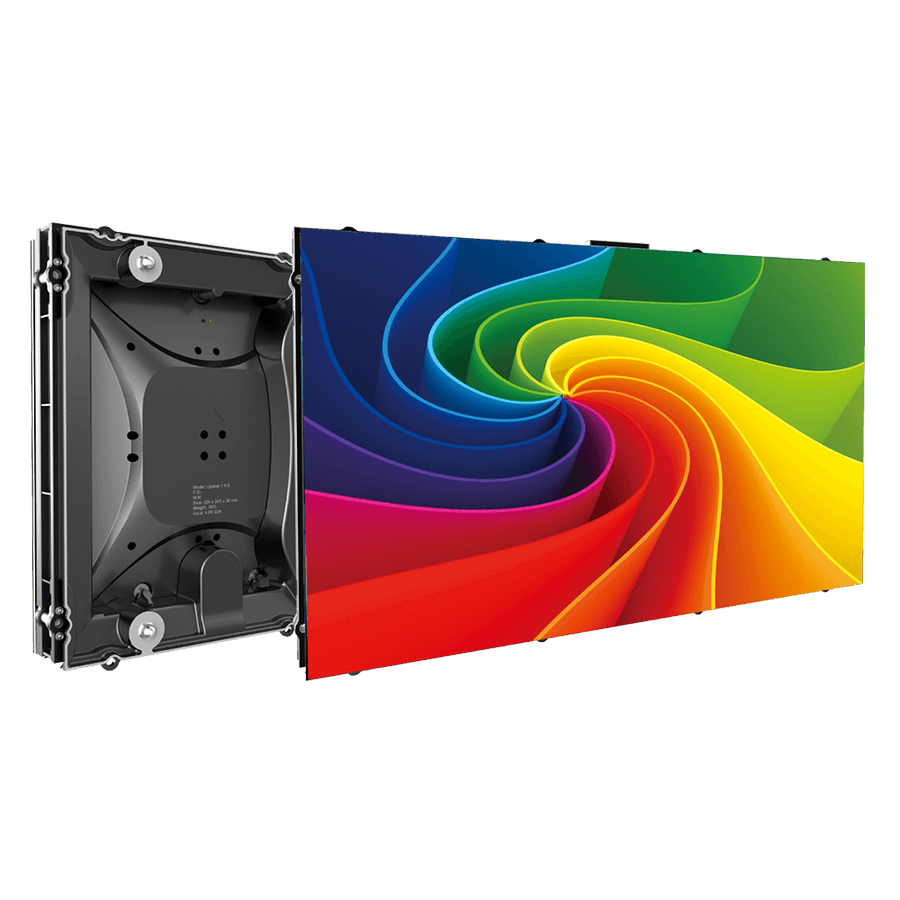

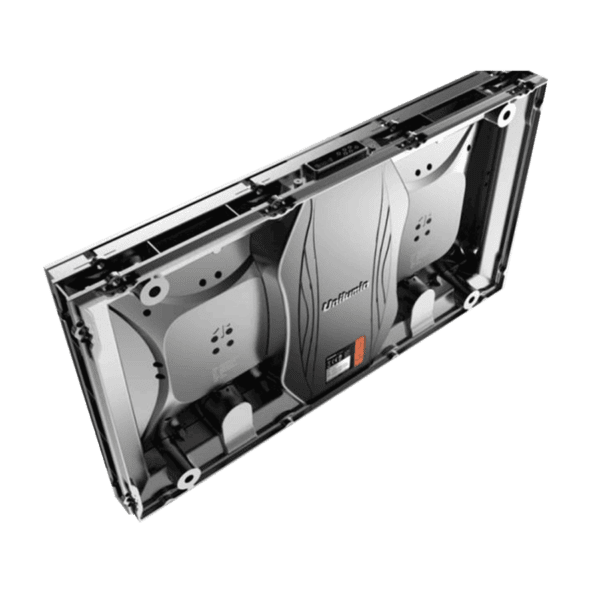

Revolutionary separate structure of cabinet and module – good heat dissipation
Seamless splicing between cabinets and modules
High gray scale under low brightness

Description

Descriptions

led display unilumin upanels cover 2
Play Video
led display unilumin upanels 01 2

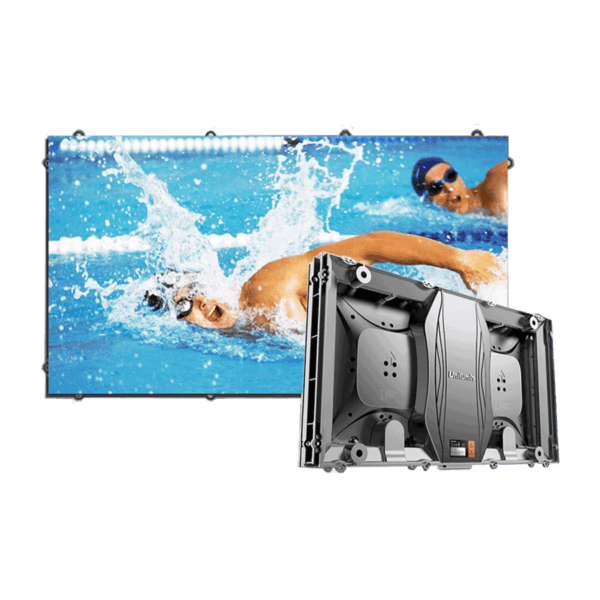

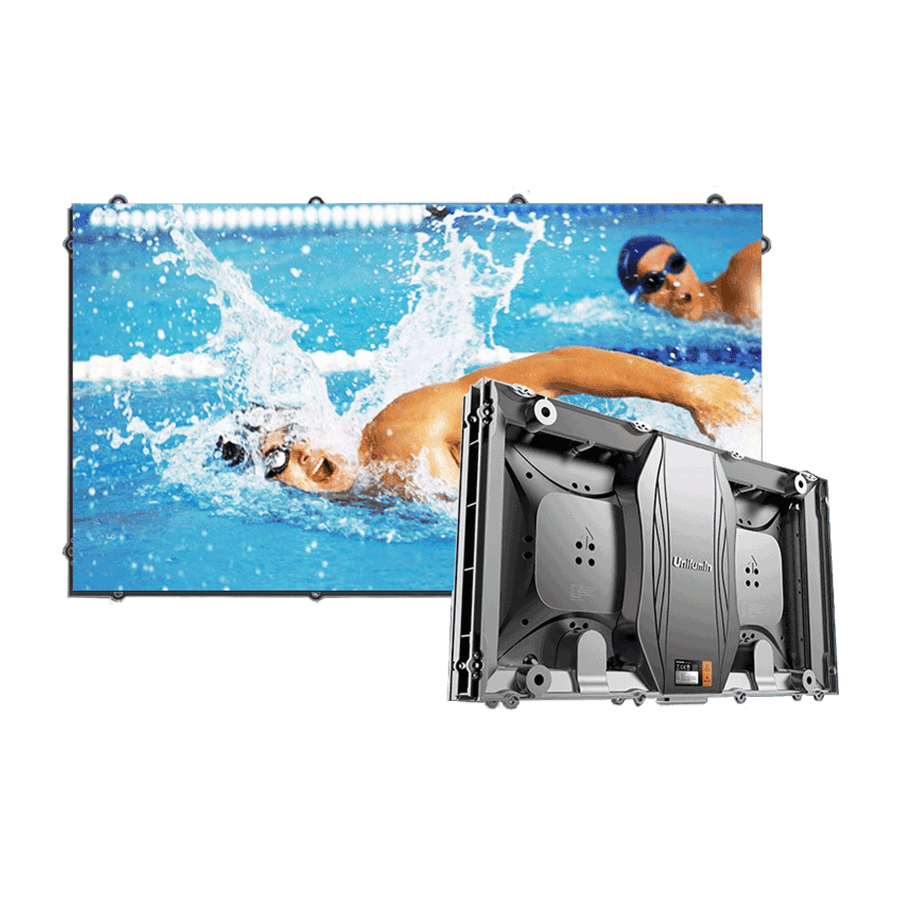

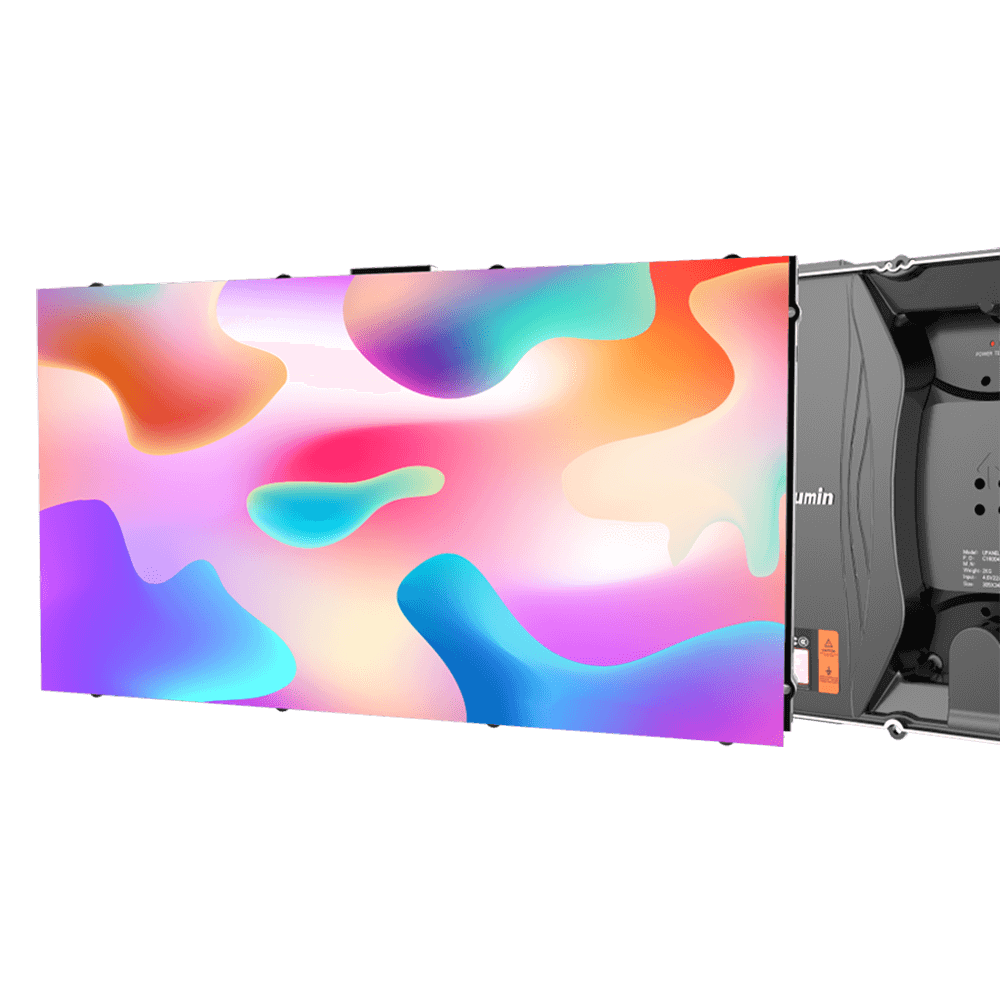

UPANEL S Series

Intelligent Front Access 16:9 LED Display Unit

Key Features

Application scenario

led display unilumin upanels t2

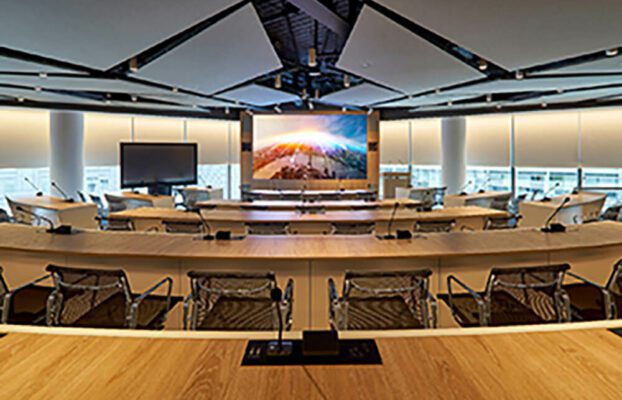

Conference

led display unilumin upanels t1

Control Room

led display unilumin upanels t3

Home

led display unilumin upanels t4

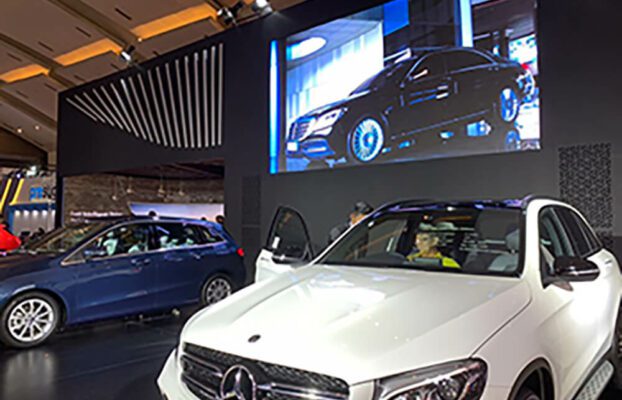

Showroom

led display unilumin upanels 02

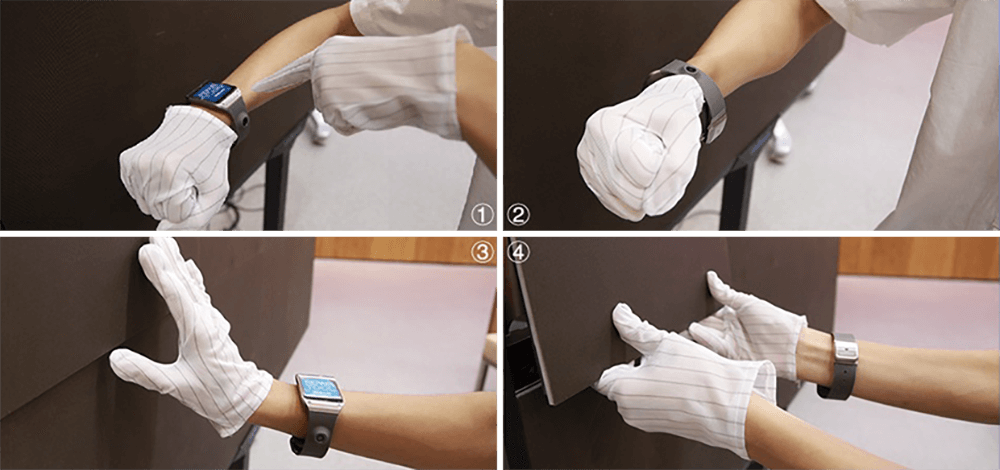

Intelligent Front Access

Non- touching system. All modules, systems, power supplies and cables are front accessible.

16:9 Ratio

The world’s first golden ratio of 16:9 standard cabinet

Consistent with the pupil ratio of the human eye

Compatible with 2K, 4K and 8K

Bezel-free LED Display

led display unilumin upanels 03
led display unilumin upanels 04

Dual Backup System

Power supply, signal cable, control system, socket backup available

Automatic Detection

Each LED module supports temperature, voltage and connection detection.

led display unilumin upanels 05
led display unilumin upanels 06

Automatic Calibration

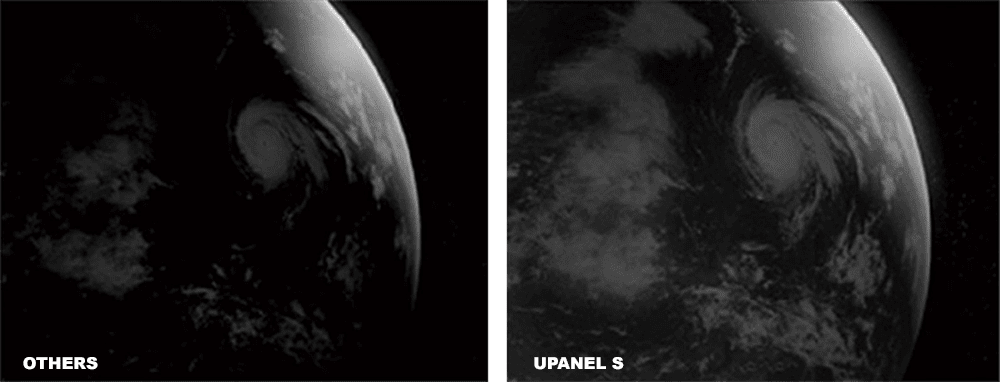

High Grey Scale Under Low Brightness

led display unilumin upanels 07
led display unilumin upanels 08

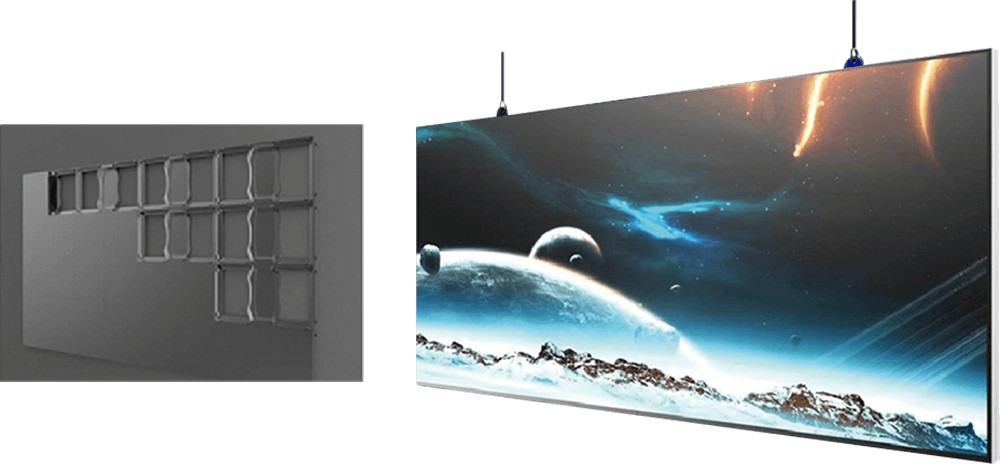

Support Wall Mounting And Hanging

Secure And Stable

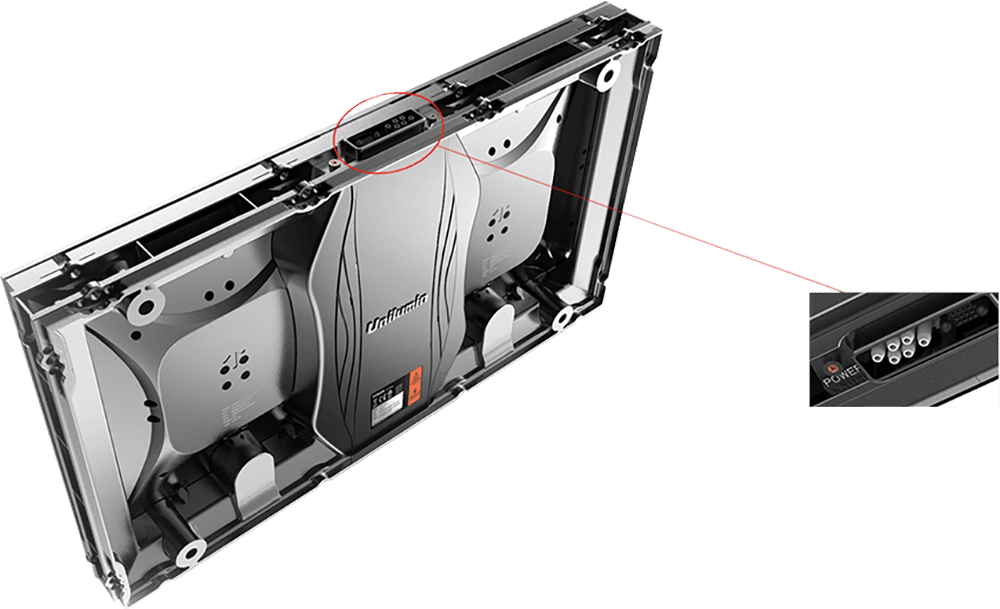

Cabinet and module are cable- free

led display unilumin upanels 09

Specifications

Parameter

Model

Value

Upanel 0.9S

Upanel 1.2S

Upanel 1.5S

Upanel 1.9S

Upanel 2.5S

Pixel Pitch

0.95mm

1.27mm

1.58mm

1.906mm

2.54mm

Pixel Density

1,101,068 dots/m²

620,001 dots/m²

396,550 dots/m²

275,267 dots/m²

155,000 dots/m²

Panel Size (W×H×D)

609.92mm ×

343.08mm × 71mm

609.92mm ×

343.08mm × 71mm

609.92mm ×

343.08mm × 71mm

609.92mm ×

343.08mm × 71mm

609.92mm ×

343.08mm × 71mm

Panel Resolution

640 × 360 dots

480 × 270 dots

384 × 216 dots

320 × 180 dots

240 × 135 dots

Material

Die-cast Magnesium Aluminum

Die-cast Magnesium Aluminum

Die-cast Magnesium Aluminum

Die-cast Magnesium Aluminum

Die-cast Magnesium Aluminum

Brightness

600 cd/m²

600 cd/m²

600 cd/m²

600 cd/m²

600 cd/m²

Color Temperature

2,000 - 9,500 K

Adjustable

2,000 - 9,500 K

Adjustable

2,000 - 9,500 K

Adjustable

2,000 - 9,500 K

Adjustable

2,000 - 9,500 K

Adjustable

Viewing Angle (H/V)

160°/160°

160°/160°

160°/160°

160°/160°

160°/160°

Panel Weight

6.8 kg

6.8 kg

6.8 kg

6.8 kg

6.8 kg

Aspect Ratio (W:H)

16:9

16:9

16:9

16:9

16:9

Service Access

Front

Front

Front

Front

Front

Input Power/Panel (Max.)

150 W

140 W

140 W

117 W

80 W

Input Power/Panel (Ave.)

50 W

46 W

46 W

42 W

26 W

Ingress Protection

IP50

IP50

IP50

IP50

IP50

Input Voltage

100 - 240 VAC

100 - 240 VAC

100 - 240 VAC

100 - 240 VAC

100 - 240 VAC

Refresh Rate

3,840 Hz

3,840 Hz

3,840 Hz

3,840 Hz

3,840 Hz

Operating Temperature / Humidity

-10°C to 45°C

/10% - 80% RH

-10°C to 45°C

/10% - 80% RH

-10°C to 45°C

/10% - 80% RH

-10°C to 45°C

/10% - 80% RH

-10°C to 45°C

/10% - 80% RH

Storage Temperature / Humidity

-20°C to 55°C

/10% - 85% RH

-20°C to 55°C

/10% - 85% RH

-20°C to 55°C

/10% - 85% RH

-20°C to 55°C

/10% - 85% RH

-20°C to 55°C

/10% - 85% RH
