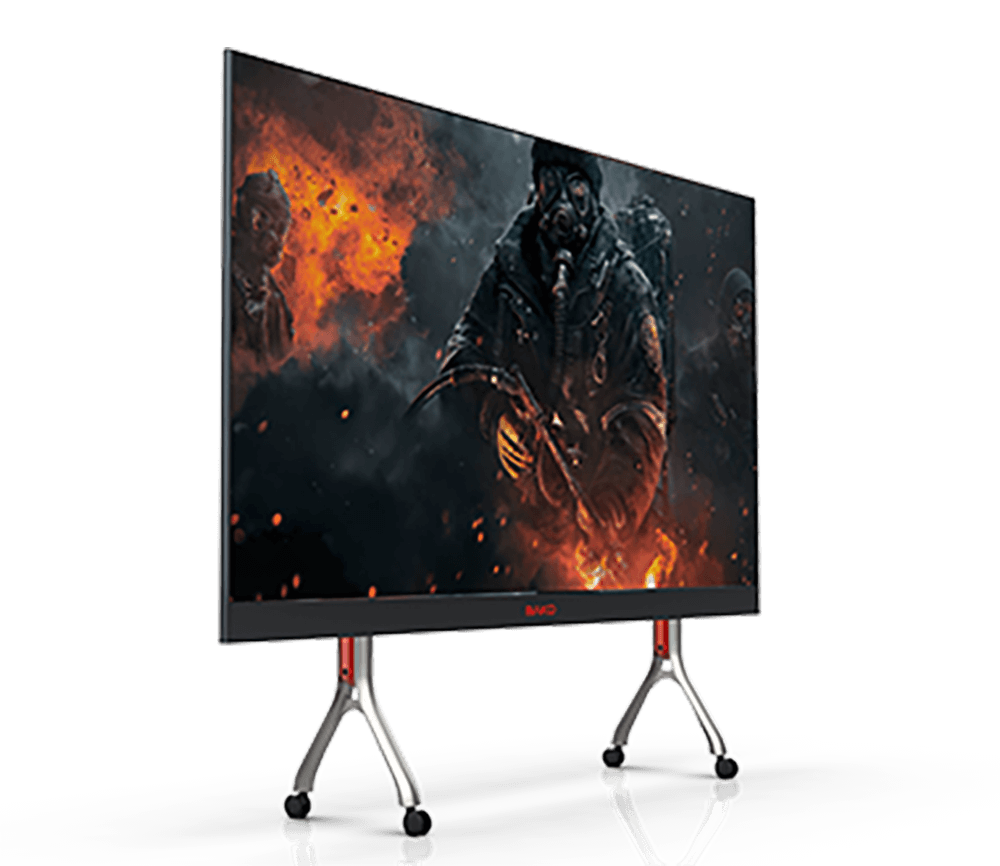

Bako LED Display – Super LED
LED ScreenIntelligent Large Size LED Display

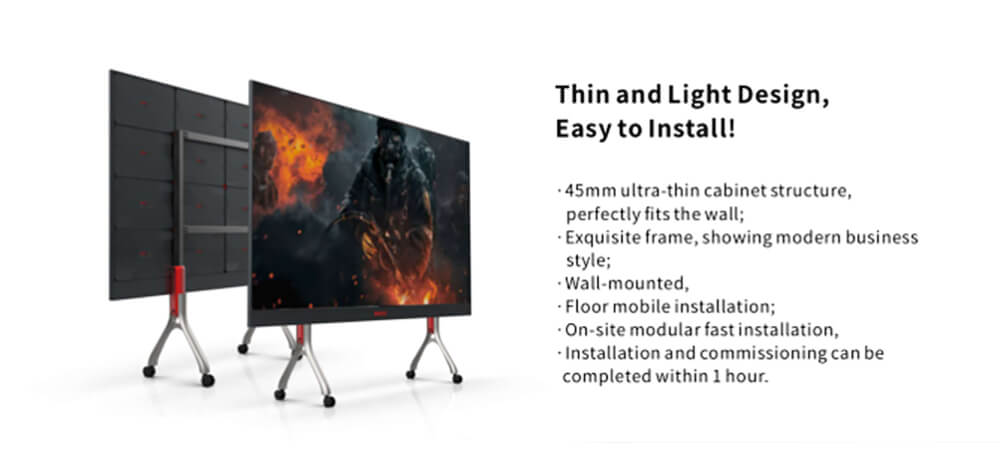

– Thin and Light Design, Easy to Install!

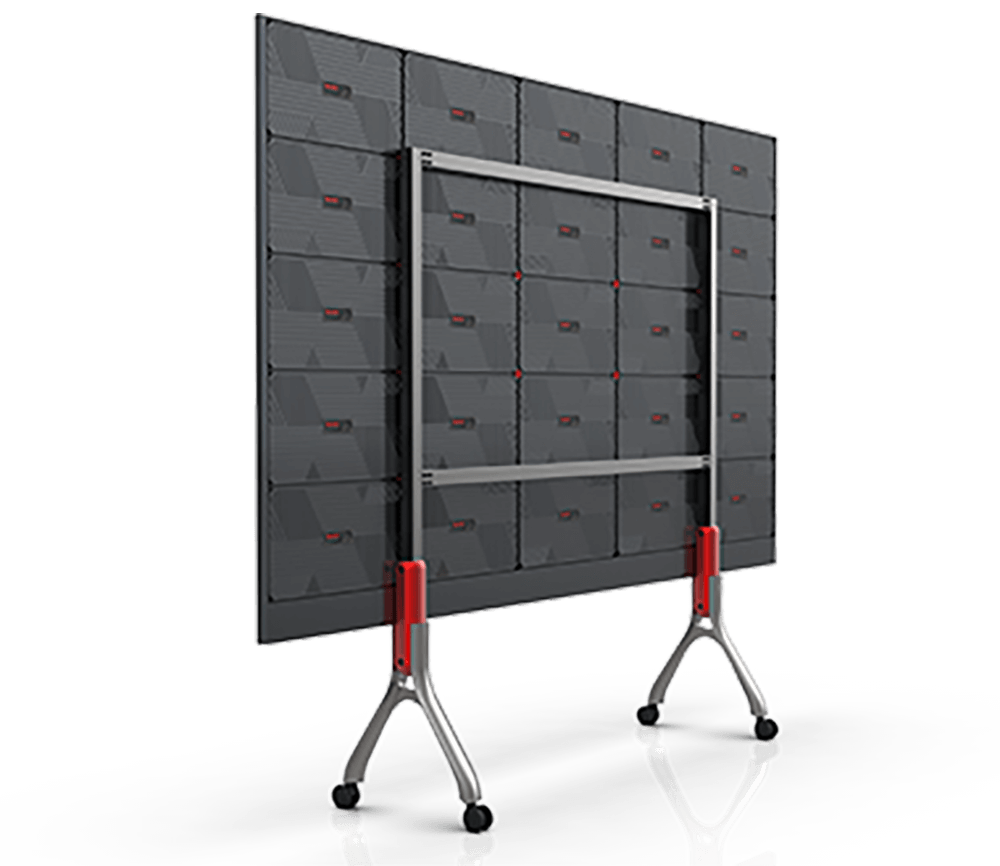

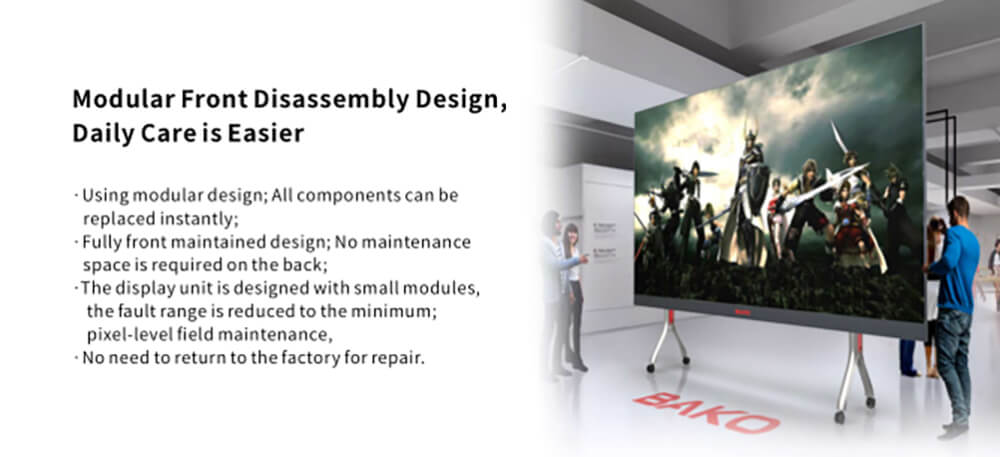

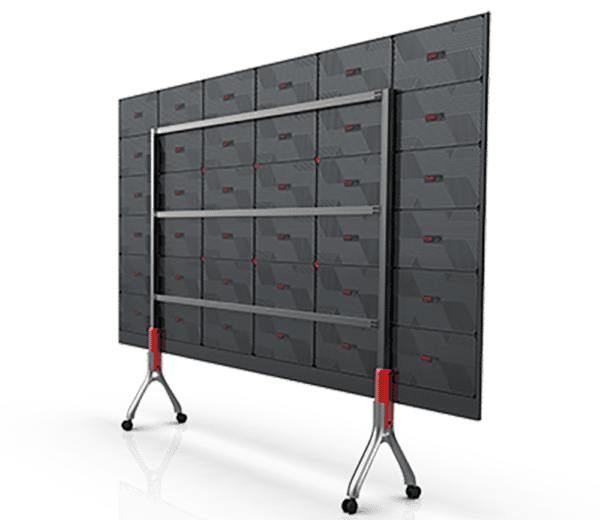

– Modular Front Disassembly Design, Daily Care is Easier

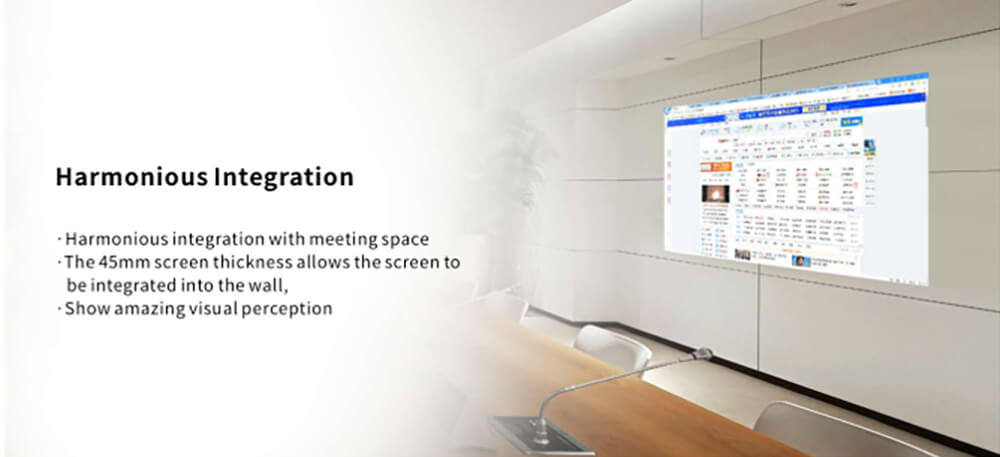

– Harmonious Integration

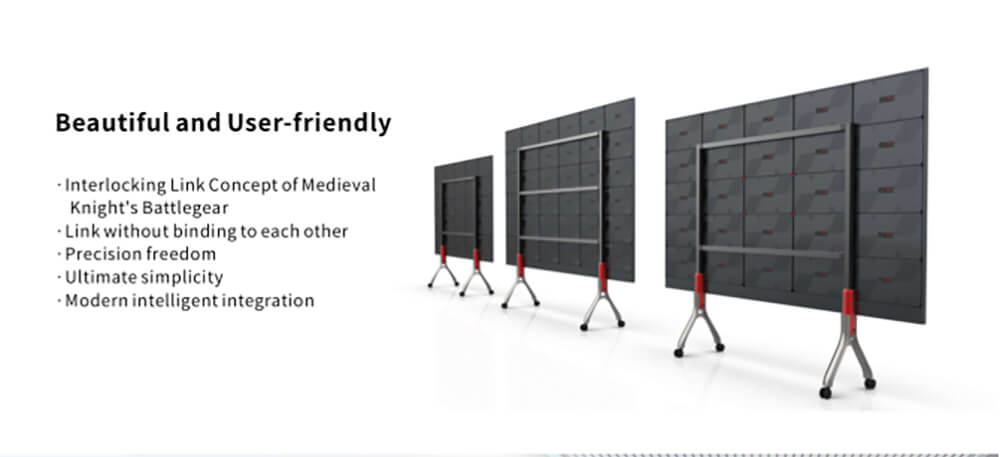

– Beautiful and User-friendly
– Simplify Complexity, Make Office More Simple and Efficient

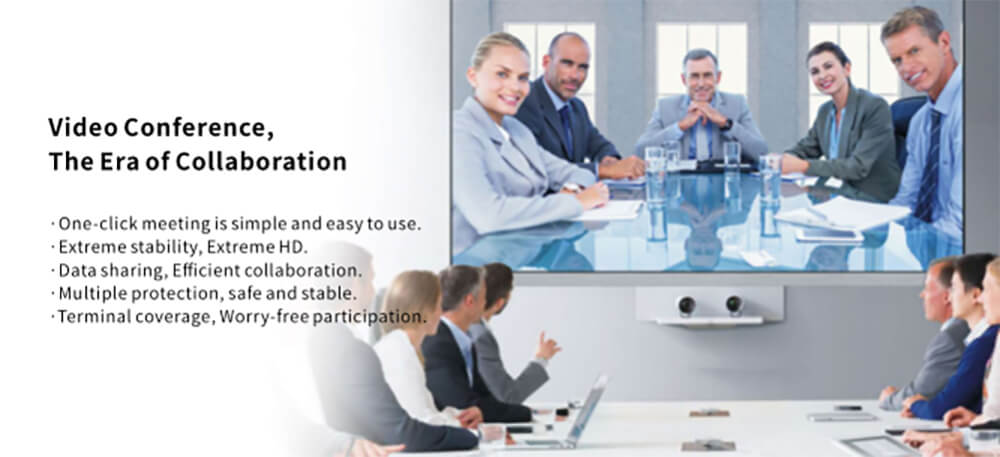

– Multi-screen Display, Easy interaction and Efficient Decision
Description

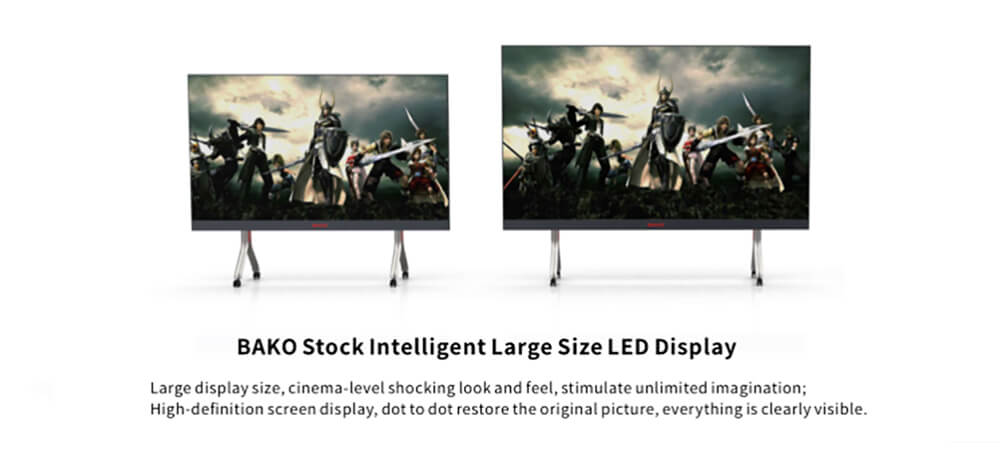

Intelligent Large Size LED Display
With excellence technological level top quality system LED Display
Key Features
Specifications
Product model P1.25
Display diagonal dimensions 108“
Screen size（mm）2400x1350x45
Resolution ratio 1920x1080
Brightness 600~800nits

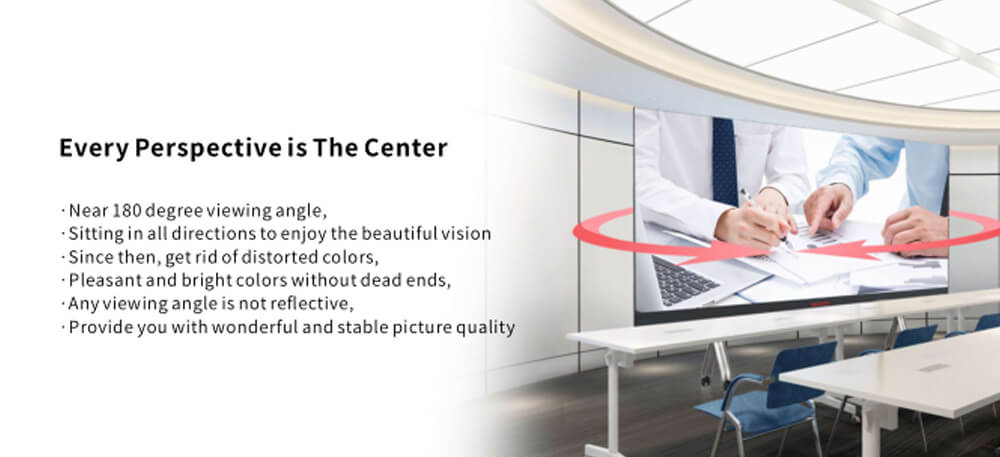

Viewing angle 160°
Contrast ratio 8000：1
Color gamut range 110%NTSC
Supply voltage 110-240V
Avg. consumption 0.6KW
Operating system Android（Standard）/Windows（Optional）
Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS
Best viewing distance 2.4m
Recommended scene area 20~30m²
Recommended attendance 10~20 people
* the parameters vary slightly depending on the configuration
Product model P1.25
Display diagonal dimensions 135”
Screen size（mm）3000x1687.5x45
Resolution ratio 2400x1350
Brightness 600~800nits
Viewing angle 160°
Contrast ratio 8000：1
Color gamut range 110%NTSC
Supply voltage 110-240V
Avg. consumption 0.6KW
Operating system Android（Standard）/Windows（Optional）
Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS
Best viewing distance 3.0m
Recommended scene area 30~40m²
Recommended attendance 20~40 people
* the parameters vary slightly depending on the configuration
Product model P1.25
Display diagonal dimensions 162“
Screen size（mm）3600x2025x45
Resolution ratio 2880x1620
Brightness 600~800nits
Viewing angle 160°
Contrast ratio 8000：1
Color gamut range 110%NTSC
Supply voltage 110-240V
Avg. consumption 0.6KW
Operating system Android（Standard）/Windows（Optional）
Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS
Best viewing distance 3.5m
Recommended scene area 40~50m²
Recommended attendance 40~60 people
* the parameters vary slightly depending on the configuration
Product model P1.56
Display diagonal dimensions 135”
Screen size（mm）3000x1687.5x45
Resolution ratio 1920x1080
Brightness 600~800nits
Viewing angle 160°
Contrast ratio 8000：1
Color gamut range 110%NTSC
Supply voltage 110-240V
Avg. consumption 0.6KW
Operating system Android（Standard）/Windows（Optional）
Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS
Best viewing distance 3.5m
Recommended scene area 50~80m²
Recommended attendance 30~40 people
* the parameters vary slightly depending on the configuration
Product model P1.56
Display diagonal dimensions 162“
Screen size（mm）3600x2025x45
Resolution ratio 2304x1296
Brightness 600~800nits
Viewing angle 160°
Contrast ratio 8000：1
Color gamut range 110%NTSC
Supply voltage 110-240V
Avg. consumption 0.6KW
Operating system Android（Standard）/Windows（Optional）
Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS
Best viewing distance 3.5m
Recommended scene area 80~120m²
Recommended attendance 40~60 people
* the parameters vary slightly depending on the configuration
Product model P1.875
Display diagonal dimensions 162“
Screen size（mm）3600x2025x45
Resolution ratio 1920x1080
Brightness 600~800nits
Viewing angle 160°
Contrast ratio 8000：1
Color gamut range 110%NTSC
Supply voltage 110-240V
Avg. consumption 0.6KW
Operating system Android（Standard）/Windows（Optional）
Interface type USB3.0 / USB2.0 /Type-C / HDMI / 3.5mm TRS
Best viewing distance 3.8m
Recommended scene area 80~120m²
Recommended attendance 40~60 people
* the parameters vary slightly depending on the configuration
