Digital Signage Media Player Axiomtek DSP302
Digital SignageMedia Player– Processor:
– Intel® Celeron® processor N6210/J6413
– Chipset:
– SoC integrated
– System Memory:
– LPDDR4 4GB memory onboard (8GB optional)
– Watchdog Timer:
– 255 levels, 1 to 255 sec./min.
– USB:
– 4 x USB 3.2 Gen 2
– Ethernet:
– 1 x GbE LAN
– Display:
– 3 x HDMI 2.0 (CPU: J6413)
– 2 x HDMI 2.0 (CPU: N6210)
– Audio:
– 1 x Audio jack (combo)
– Storage:
– 1 x 64GB eMMC onboard (128G optional)
– 1 x M.2 Key M 2242 slot (SATA/PCIe x2 signal)
– Expansion:
– 1 x Full-size PCI Express Mini Card slot for WiFi/BT/3G/4G (PCIe x1, USB 2.0 signal)
– 1 x M.2 Key M slot (SATA/PCIe x2 signal)
– 1 x SIM card slot
Description

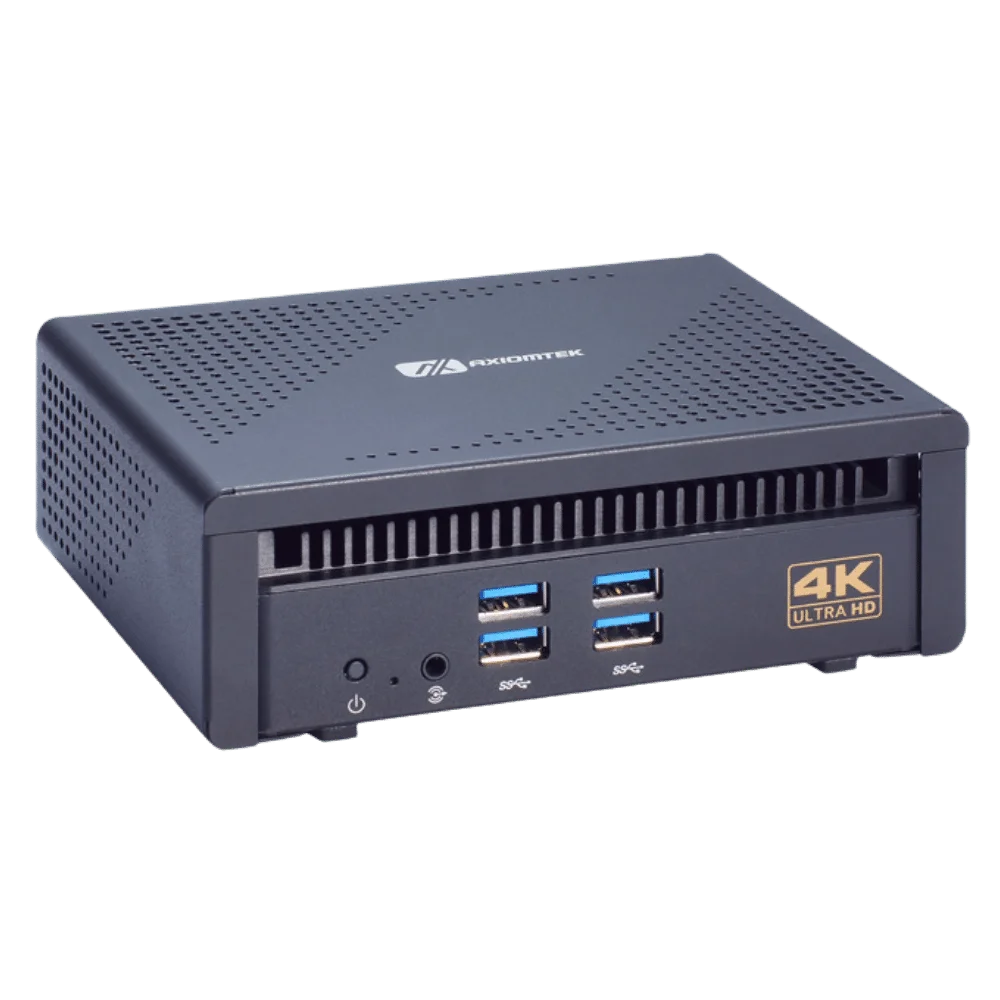

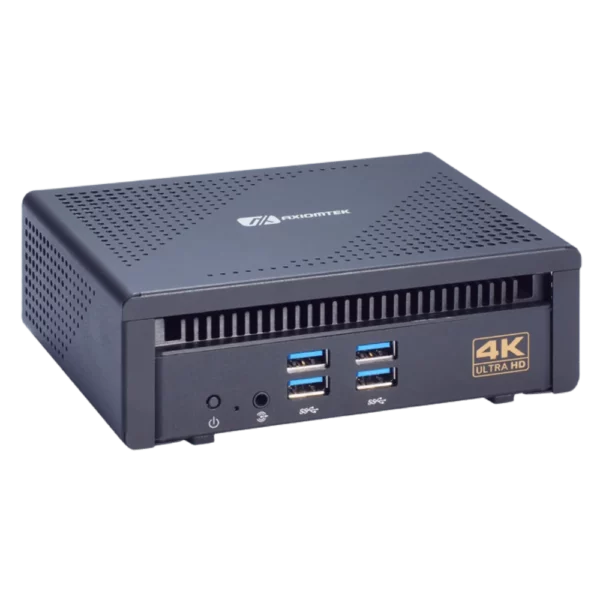

The DSP302 is a compact and versatile digital signage player powered by an Intel® Celeron® processor (N6210/J6413) with an integrated SoC chipset. Boasting 4GB LPDDR4 memory (expandable to 8GB) and a 64GB eMMC onboard storage (optional 128GB), it supports a range of connectivity options, including 4 USB 3.2 Gen 2 ports, 1 GbE LAN, and multiple HDMI 2.0 outputs. Designed for flexibility, it features expansion slots for Wi-Fi/BT/3G/4G, M.2 Key M storage, and a SIM card slot. With a compact form factor (106.2 x 149 x 48.4 mm), wall-mount capability, and compatibility with Win10 IoT/Win11/Linux, the DSP302 is ideal for diverse commercial applications, ensuring reliable performance and ease of installation.
