Digital Signal Processor- Arvia Mini Server MS-7710
AccessoriesHigh Computing Power, Discrete Graphics, Slim Form Factor Robust
Arvia Mini Server MS-7710 combines the Intel’s 10th generation desktop processor with an NVMe SSD (Intel® Optane™) to improve boot times and increase system performance even more. The device uses its discrete graphics cards for inferencing, video analytics or industrial processes.
Description
Descriptions

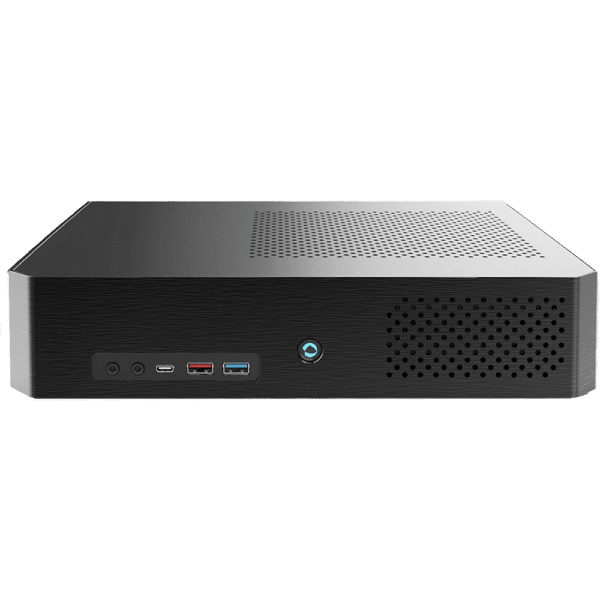

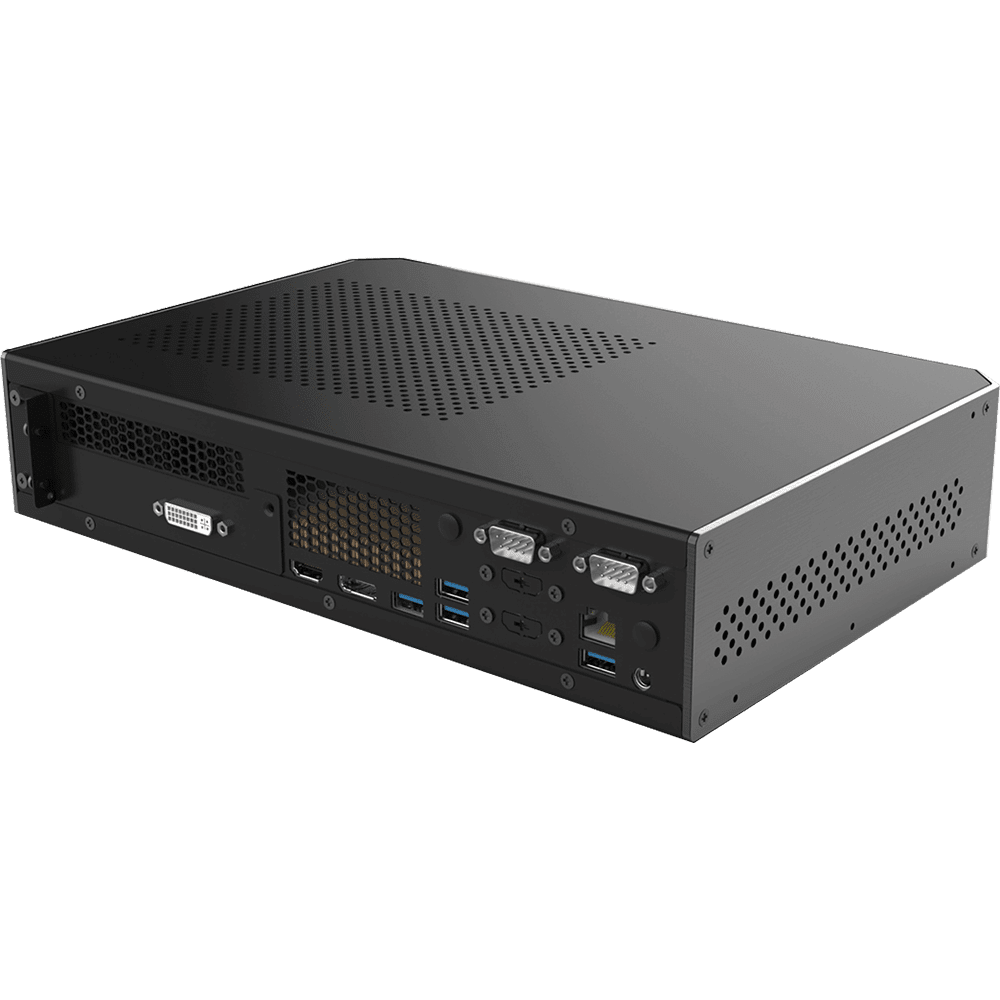

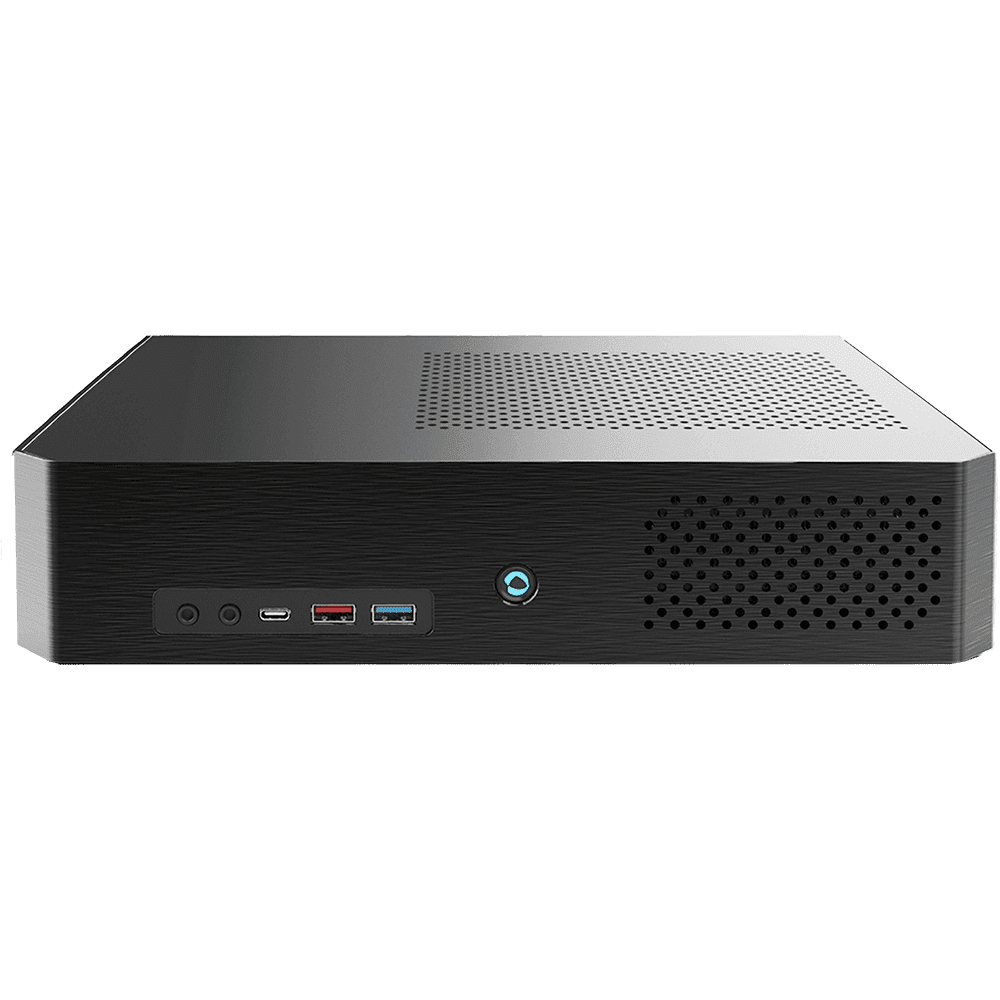

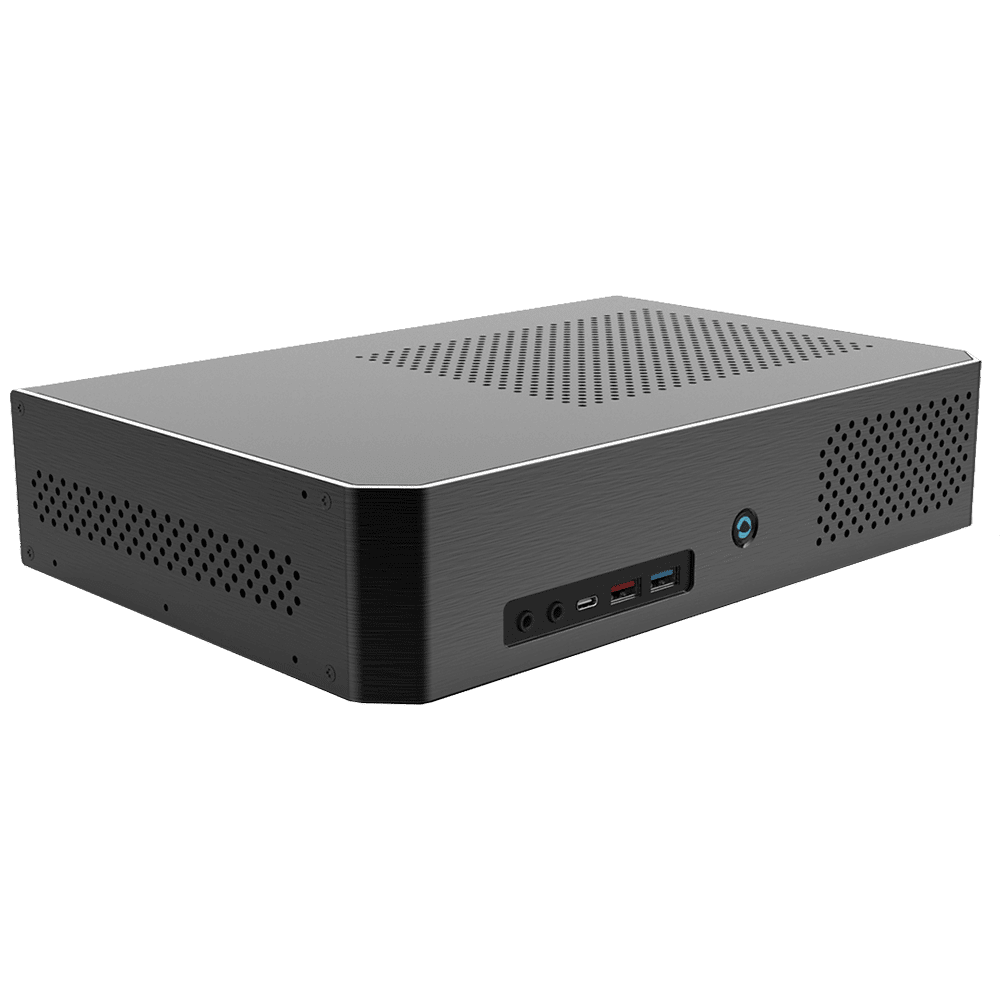

Arvia Mini Server MS-7710
High Computing Power, Discrete Graphics, Slim Form Factor Robust
Key Features
Engineered For Excellence

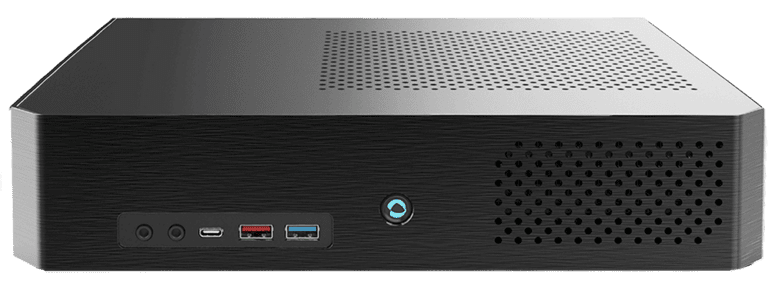

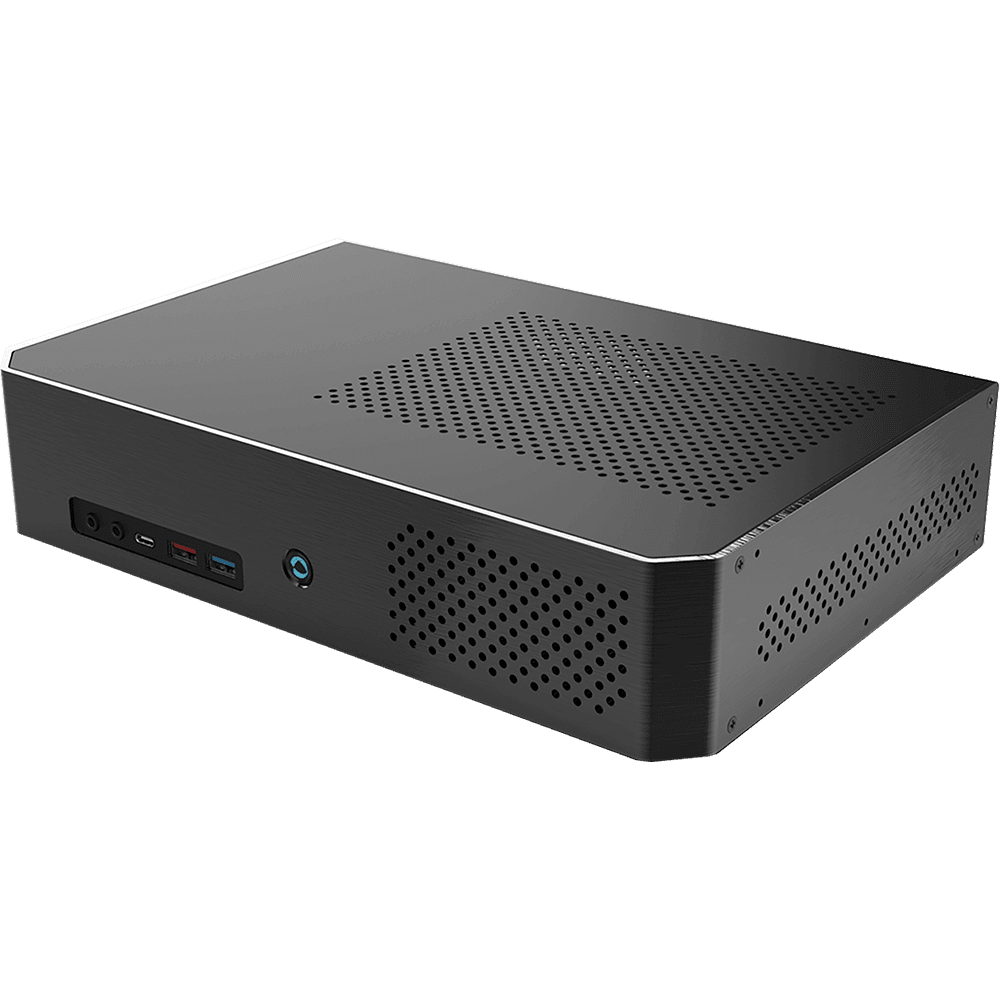

Rugged, slim form factor chassis with aluminum front panel that can withstand various challenging environments 24/7.
Intel Core-i Desktop Platform
Based on the 10th Generation Intel® Core desktop processor, Intel® Optane™ for powerful AI and IoT use cases.
Smart Vision Solutions
Support your Smart Vision requirements, from high-end video analytics, industrial process operation, automation or video surveillance to many more.

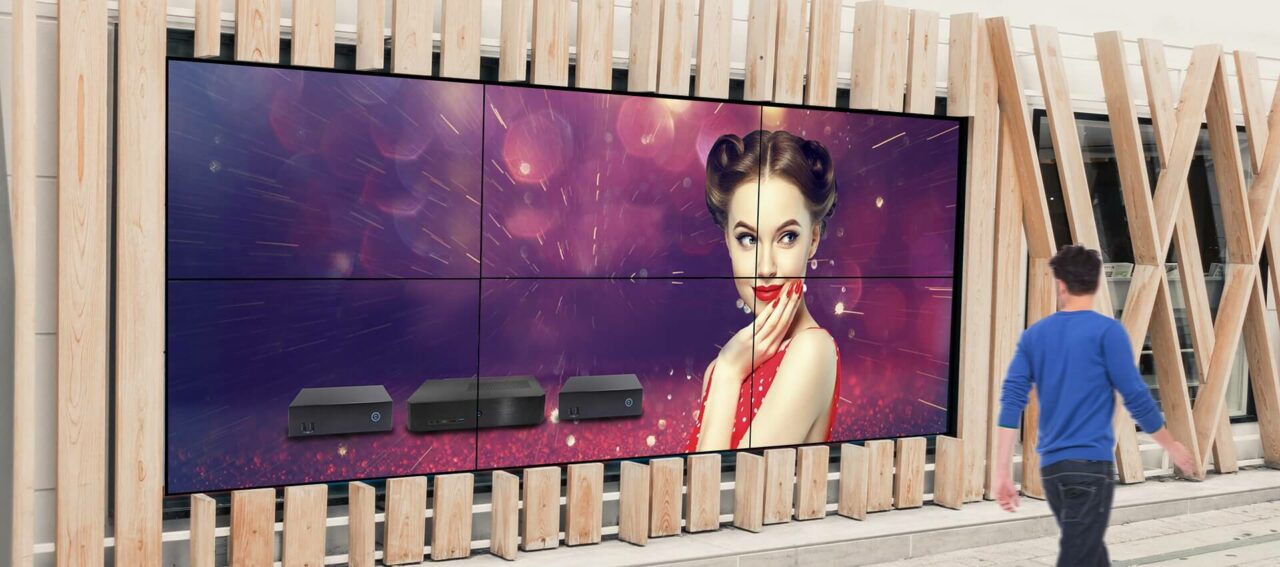

Multi-output Video Wall Solution
This player has a multi-output solution. Which means one player drives up to six screens. Computing devices with this feature are the perfect backbone for video walls and other multi-screen solutions.
Reliable High-end Computing, Low Power Consumption
Arvia Mini Server MS-7710 is created for 24/7 use. It is actively cooled with a fan and ensures low power consumption. Combine this feature with a long lifecycle and you will see why this Digital Engine will lower your Total Cost of Ownership (TCO).
Specifications
Dimension WxHxD 300 x 212 x 70mm
Volume 4.46L
Weight 3.2 kgs / 7.1 lbs
CPU
Socket: LGA1200
Type: Intel 10th Core i5-10500 (Standard SKU)
Type: Intel 10th Core i5-10500 (Standard SKU)
Chipset
Intel Q470
Memory
Channel: Dual Channel
Type: DDR4 SO-DIMM
Data Rate: 2400 / 2666 MHz
Max Memory: 32GB
Type: DDR4 SO-DIMM
Data Rate: 2400 / 2666 MHz
Max Memory: 32GB
GPU Chipset
Onboard: Intel UHD610/630
Deep Learning: Nvidia Geforce GTX 1650
Video Wall: AMD Radeon E8870
Deep Learning: Nvidia Geforce GTX 1650
Video Wall: AMD Radeon E8870
Audio
Type: Integrated high-definition sound
Jack: Line Out x1, Mic in x1
Jack: Line Out x1, Mic in x1

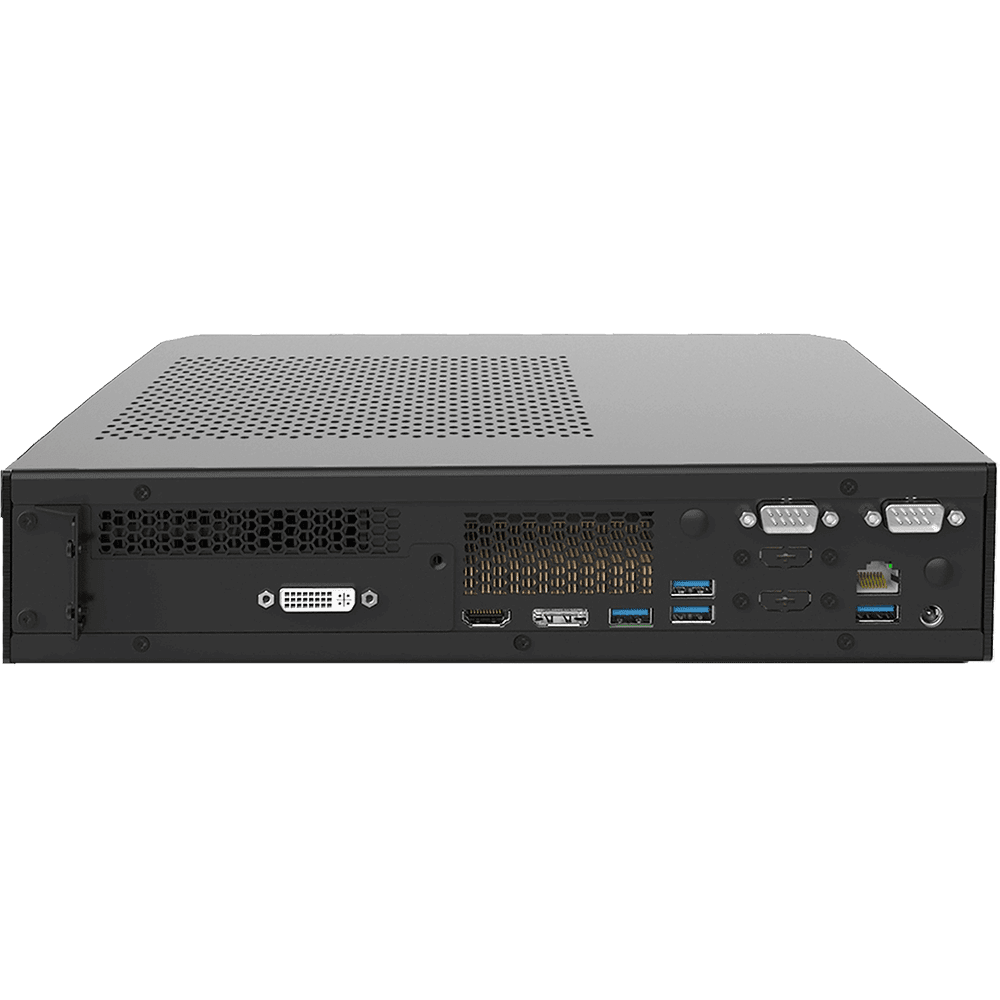

Video
HDMI x 1 (HDMI1.4) x 1
DisplayPort x 1 (DP1.4)
DisplayPort x 1 (DP1.4)
Discrete Graphics
Nvidia® GeForce® GTX 1650 (default)
Expansion
M.2 2242/2280 PCI-E or SATA SSD Slot
M.2 2230 PCI-E slot (for WiFi)
M.2 2280 Intel Optane Memory Slot
M.2 2230 PCI-E slot (for WiFi)
M.2 2280 Intel Optane Memory Slot
LAN
Chipset: Intel 219LM
Type: RJ45 Port by 10/100/1000Mbps
Type: RJ45 Port by 10/100/1000Mbps
USB
USB3.2 Gen1 Type A x 1 (Front x1, Rear x4)
USB3.2 Gen2 Type A x1 (Front x1)
USB3.2 Gen2 Type C x1 (Front x1)
USB3.2 Gen2 Type A x1 (Front x1)
USB3.2 Gen2 Type C x1 (Front x1)
COM
-
Storage
2.5" SATA Bay x1
M.2 2242/2280 SSD Slot
M.2 2280 Intel Optane Memory Slot
M.2 2242/2280 SSD Slot
M.2 2280 Intel Optane Memory Slot
TPM
TPM v2.0
Watchdog Timer
-
Power
-
OS
-
Warranty
-
MTBF
-
Operating Temperature
0 ~ 45ºC (32 ~ 113ºF)
Storage Temperature
-20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity
95% RH (45ºC Non-Condensing)
Voltage
180W (19.5V 9.23A) AC Adaptor
