Digital Signage Monitor MON 100
Digital SignageOur displays combine the visual power of its signage with the touch-driven efficiency of its interactive offerings to better serve the needs of retail, public, corporate and transportation environments, among others. Businesses benefit from the reduced total operational costs that come with a low-maintenance, hassle-free visual display upgrade.
• Full HD Display
• Supports Android/Windows/Linux System
• Supports LAN or WAN Digital Signage Content Management Software
• Diverse Customization
• Optional Touchscreen
• Panel Life Over 50000 hours
Description
Descriptions

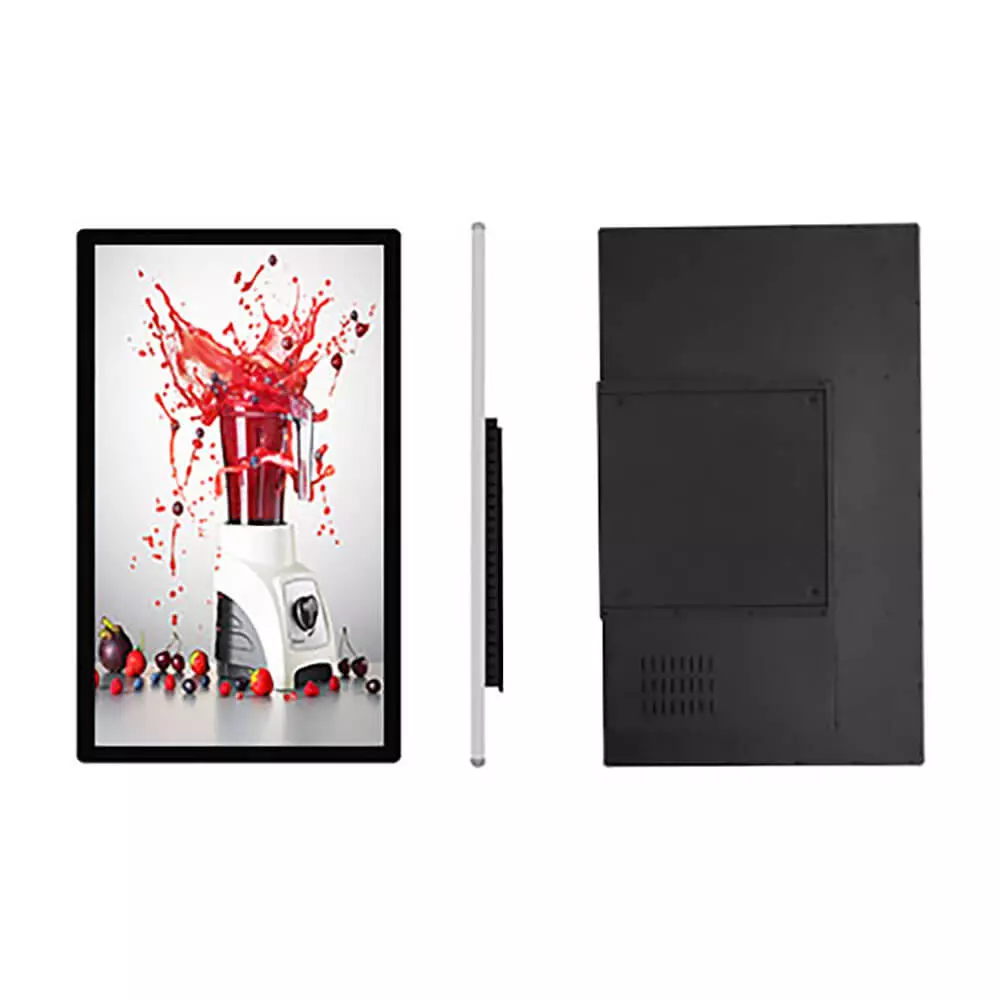

HD Wall Mounted LCD Advertising Player
Key Features
HD image qualiy,visual enjoyment

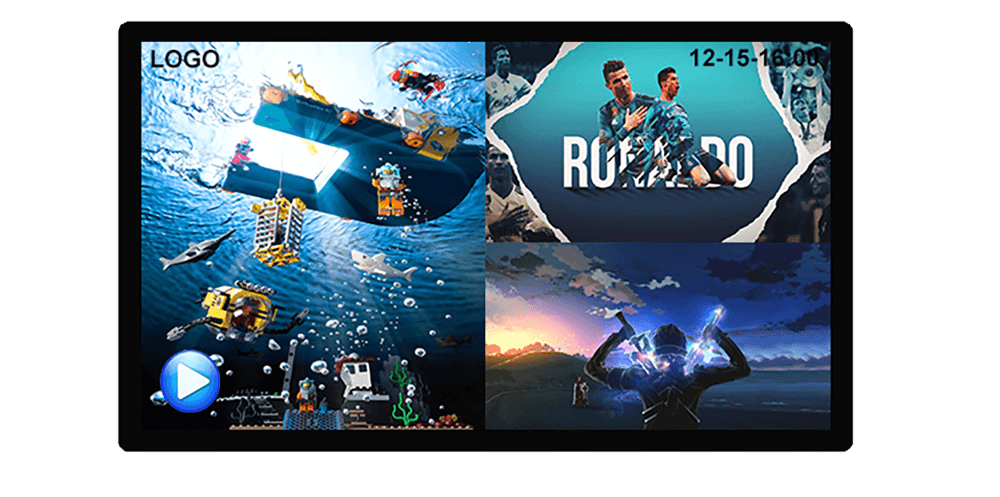

Smart split screen playback
Wide perspective and delicate color
178° wide-angle technology, high brightness display, high transmittance ,any angle can clearly show the picture
Support horizontal and vertical installation
Auto copy + loop playback
Cloud Intelligent Remote Publishing
All round protection
Pursue every details, what you worry about is what we consider.
– Original toughened glass explosion-proof and high temperature resistant.
– The back cover is made of imported cold-rolled steel plate.
– The frame is made of aluminum alloy, rust proof and not easy to damage.
– Rich cooling hole design effectively reduce the temperature.

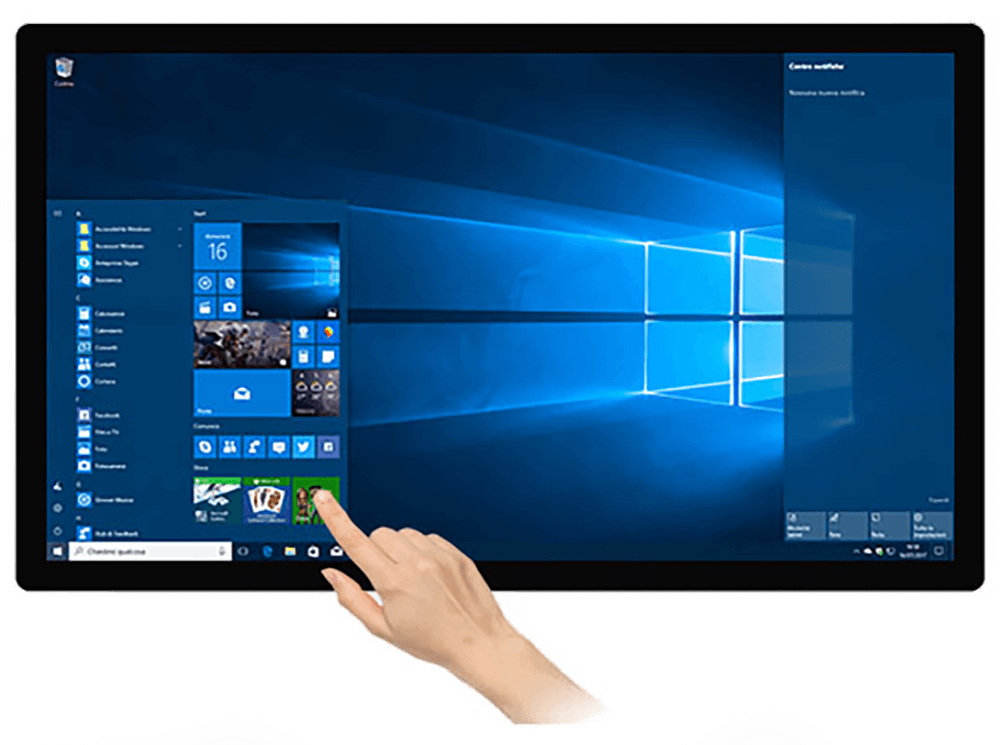

Touch screen (optional)
Support multi-touch, multi-person operation at the same time, providing a smooth control experience.
Specifications
OS Windows 7/10 or Android 5.1
CPU Intel i3, i5 or i7 RK3188 RK3288, eight-core ARM Cortex A7 2.0 GHz RK3366
GPU Intel HD Graphic / ARM Mail-764
RAM Windows 4GB-16GB Android : DDR 1GB (Upgradable to 4GB)
Built-in storage capacity Windows : 64GB - 512GB SSD Android: 8GB (Upgradable to 64GB)
WIFI WIFI module+WIFI AntennaPanel Size 15.6” – 98” real color LCD screenPanel Original LG Panel A+ Aspect Ratio 16:9 Max. Resolution 1920x 1080 Dot Pitch 0.74mm(H) x 0.74mm(W) Number of Color 16.7M Brightness 250-450cd/m2Contrast Ratio 3000:1 Optional Touch Technology Projective Capacitive Touch, Touch foil Responsive Time 5ms Panel Life above 50000 hours
Optional Media
Panel Size 15.6” – 98” real color LCD screen
Panel Original LG Panel A+
Aspect Ratio 16:9 Max. Resolution 1920x 1080
Dot Pitch 0.74mm(H) x 0.74mm(W)
Number of Color 16.7M
Brightness 250-450cd/m2
Contrast Ratio 3000:1
Optional Touch Technology Projective Capacitive Touch, Touch foil
Responsive Time 5ms
Panel Life above 50000 hours
Video formats MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
Audio formats MP3
Photo formats JPG
Scrolling Text ROL(UNICODE)
Input/output interface USB,HDMI,VGA,RJ45
Shell Material Metal shell + Aluminum Alloy frame + toughened glass
Surface Metal case with powder burning; Tempered glass to protect LCD panel
Speaker 2*10W built-in stereo speakers
Heat Dispersion Built-in DC fans
Standby ≤3W
Working 30W-180W
Power supply AC 110V - 240V, 50/60HZ
Storage -7 to 65 Celsius degree
Normal Working -5 to 65 Celsius degree
OSD Language
English, Chinese, French, German, Italian, Spanish, Arabic
