Leyard LED Display – CV-18 Indoor Series

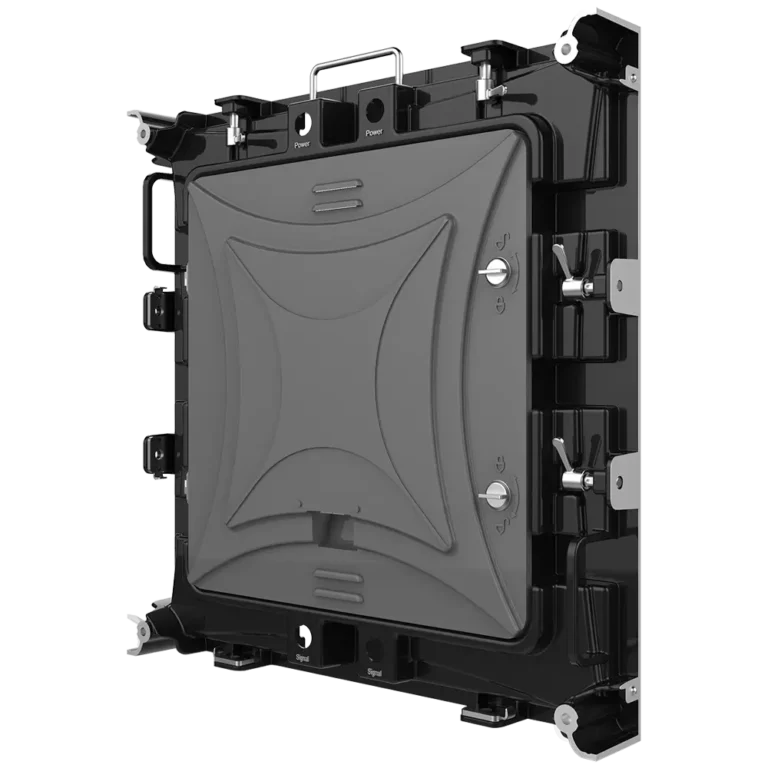

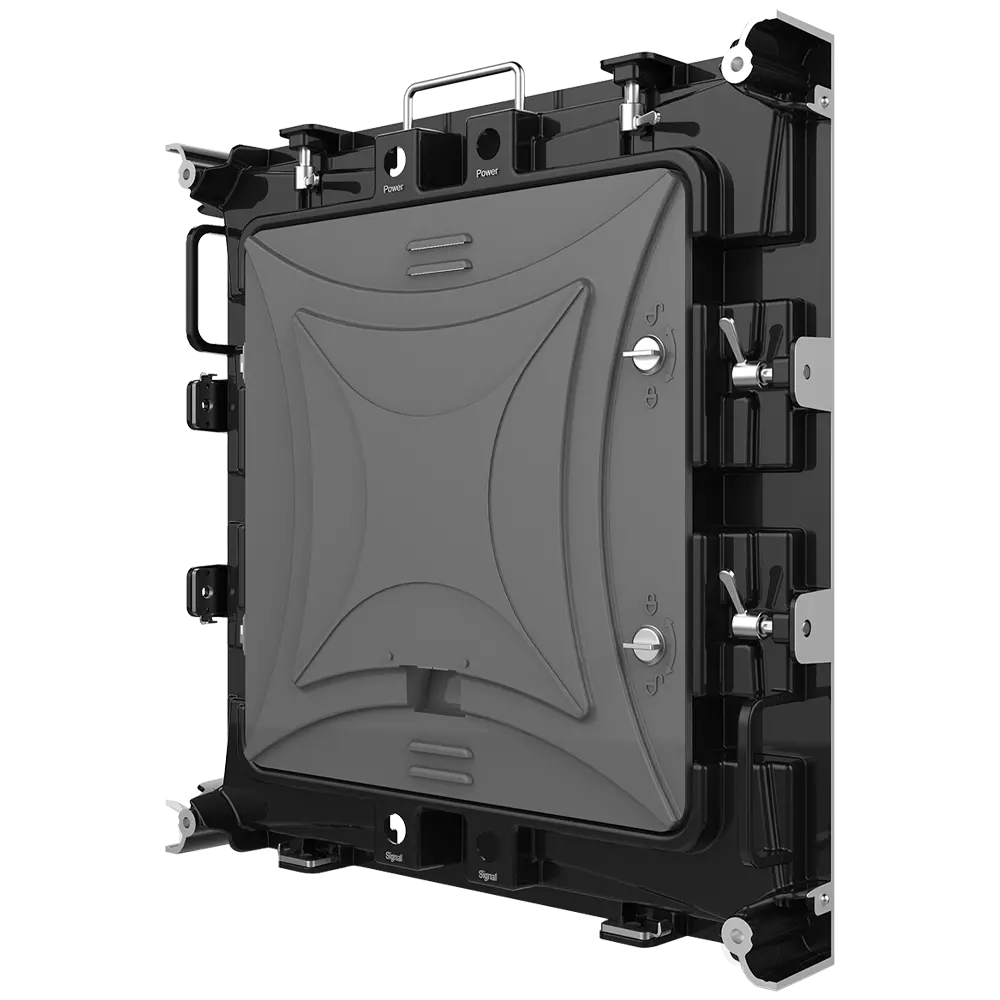

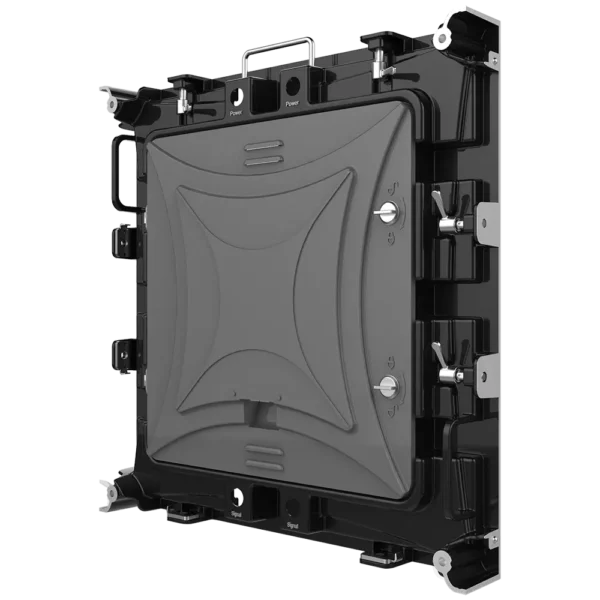

LED ScreenLeyard CV-18 Indoor Series integrated and die-casting cabinet, solid and reliable. The cabinet is equipped with fast assembly connection which can make screen disassembled fastly. Meanwhile, it is designed with automatic alignment mechanism which can realize fast installation by single person.
Description
DESCRIPTIONS
CV-18 Fixed Indoor LED Display
CV-18 series indoor LED display is an entry-level model for indoor use in shopping malls, advertisements, conferences, etc. It has a complete display hardware system by adopting Leyard’s widely acclaimed SV, USV, ESV series wholesale modules. It realizes the possibility of mass production and rapid delivery services, witch effectively reduces the user’s procurement costs.
KEY FEATURES
Adopting SV, USV and ESV modules
The die-casting cabinet of CV-18 is suitable for SV, USV and ESV modules, with stable quality and excellent performance.
High-precision aluminum alloy die-casting cabinet
CV-18 series adopts a high-strength and light-weight aluminum alloy die-casting structure with ultra-high structural accuracy, which can meet the needs of indoor fine pitch display.
Front or rear maintenance optional
The cabinet structure of CV-18 can be front or rear maintenance, so that the product can be suitable for different use environments.
Fast installation mechanism
Adopting quickly assembled connectors and automatic alignment mechanism for fast installation.
SPECIFICATIONS
Item | CV1.5-18 | CV1.8-18 | CV2-18 | CV2.5-18 | CV3-18 | CV3(L)-18 | CV4-18 |
Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
Pitch(mm) | 1.538 | 1.86 | 2 | 2.5 | 3 | 3.076 | 4 |
Module Resolution(WxH) | 208x104 | 172x86 | 128x64 | 128x64 | 64x64 | 104x52 | 80x40 |
Module Size(mm)(WxHxD) | 320x160x16 | 320x160x16 | 256x128x16.5 | 320x160x16.5 | 192x192x16.5 | 320x160x16.5 | 320x160x16.5 |
Module Weight(Kg) | 0.46 | 0.46 | 0.24 | 0.30 | 0.24 | 0.35 | 0.30 |
Module Composition(WxH) | 2x4 | 2x4 | 2x4 | 2x4 | 3x3 | 2x4 | 2x4 |
Cabinet Resolution(WxH) | 416x416 | 344x344 | 256x256 | 256x256 | 192x192 | 208x208 | 160x160 |
Cabinet Size(mm)(WxHxD) | 640x640x90 | 640x640x90 | 512x512x86 | 640x640x90 | 576x576x86 | 640x640x90 | 640x640x90 |
Unit Area( ㎡ ) | 0.4096 | 0.4096 | 0.2621 | 0.4096 | 0.3318 | 0.4096 | 0.4096 |
Cabinet Weight(kg/㎡ ) | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
Pixel Density(pixel/㎡ ) | 422500 | 288906 | 250000 | 160000 | 111111 | 105625 | 62500 |
Surface Flatness(mm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
Brightness(nits) | ≥500 | ≥500 | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
Color Temperature(K) | 3000-10000 Adjustable | ||||||
Horizontal Viewing Angle (° ) | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
Vertical Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Deviation of LED Luminance Center | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% | ≤3% |
Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
Chromaticity Uniformity | ±0.003Cx,Cy within | ||||||
Max Power Consumption (W/㎡) | 533 | 500 | 480 | 480 | 450 | 450 | 480 |
Average Power Consumption (W/㎡) | 175 | 160 | 160 | 160 | 150 | 150 | 160 |
Power Supply | AC100~240V (50/60Hz) | ||||||
Drive Mode | Constant Current Drive | ||||||
Frame Rate(Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
Refresh Rate(Hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
Lifetime(hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Operation Temperature(℃) | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 |
Storage Temperature(℃) | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 |
Operation Humidity(RH) | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% |
Storage Humidity(RH) | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
