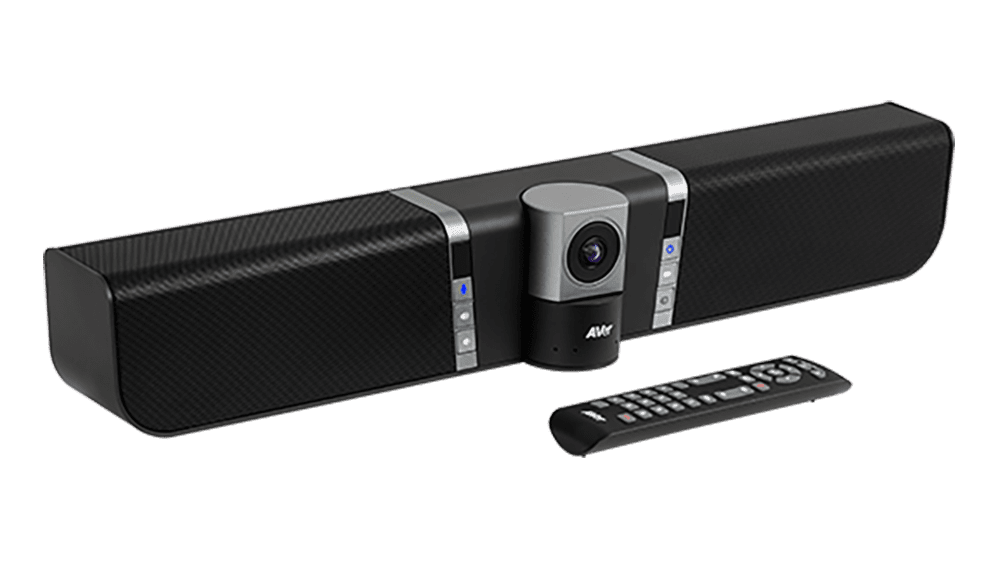

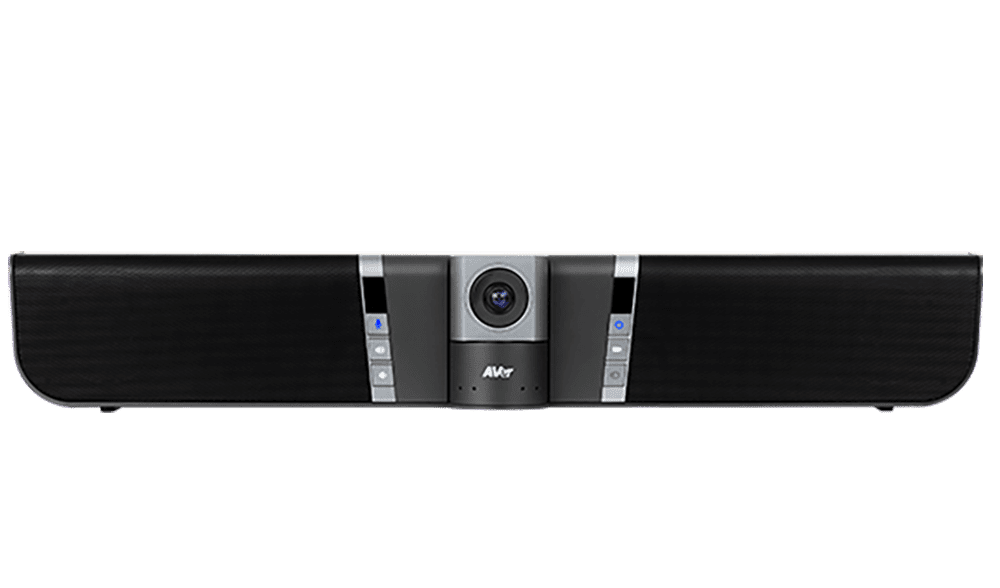

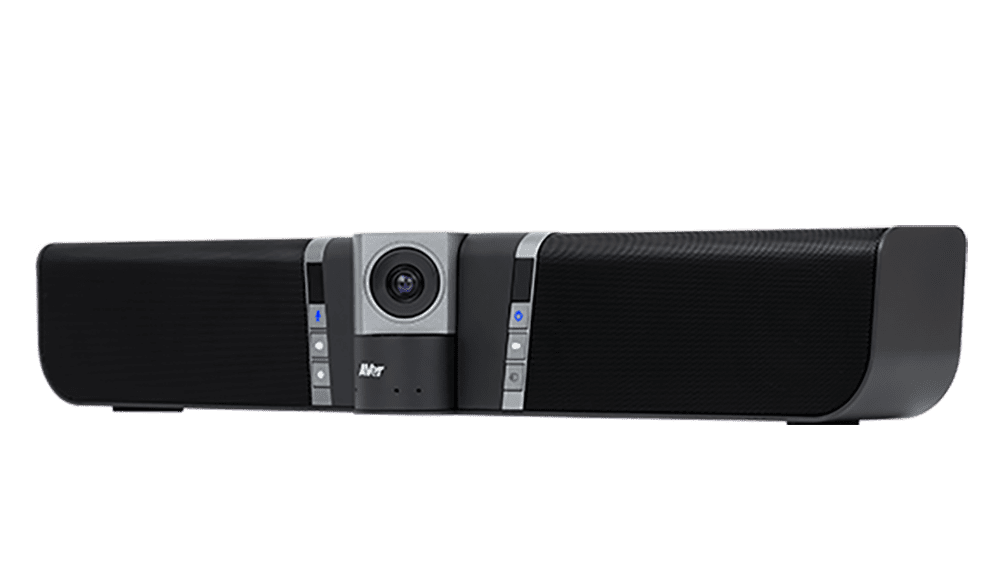

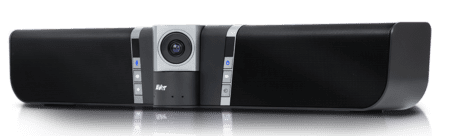

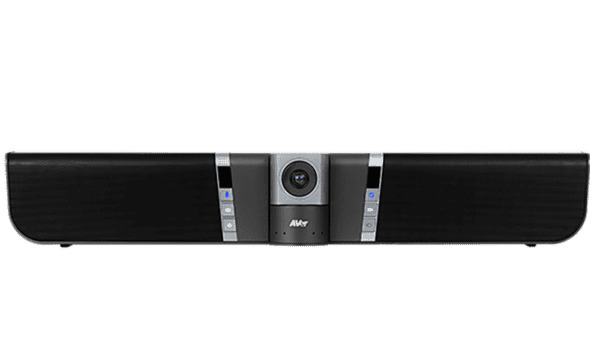

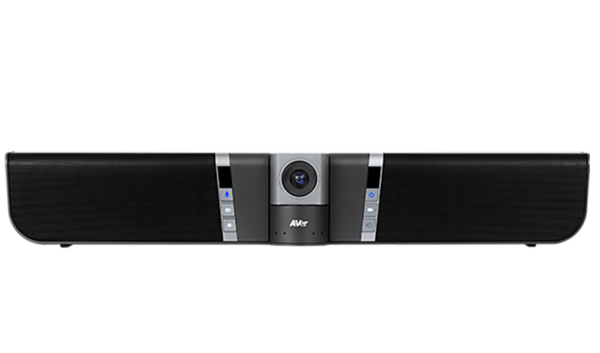

All in one USB 4K UHD Huddle Room Camera and Audio
The new VB342+ makes group video calls easier and more efficient, delivering exceptional audio and video quality for enterprises. It is also equipped with cutting-edge features like SmartFrame, SmartSpeaker, True WDR, and FOV 120° to upgrade your conferencing experience.
Key Features
AVer SmartFrame Captures Everyone
SmartSpeaker Instantly Identifies Speakers

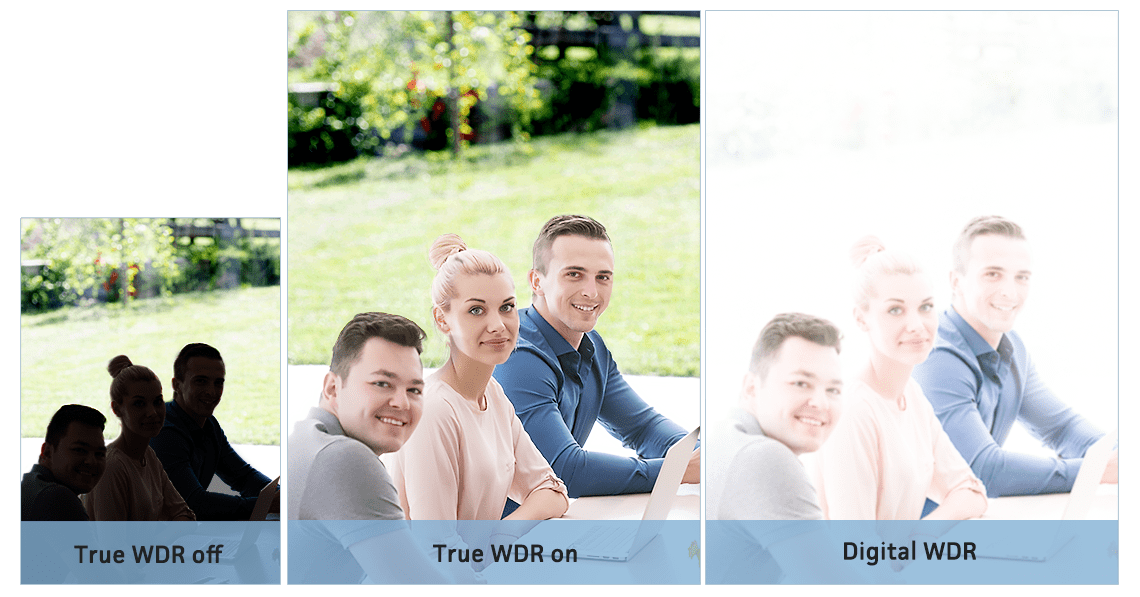

Constant Clarity with True WDR
Constant Clarity with True WDR
Analytics for Efficient Meeting Rooms
Specifications
Package dimensions: 739 x 193 x 229 mm
Package weight: 4.16 kg/9.3 lbs
Camera: 650 x 100 x 109.5 mm/2.133 kg
Remote control: 200 x 50 x 21 mm/0.09 kg
Windows 7/10
MacOS X 10.7 or higher
Google Chromebook version 29.0.1547.70
Android 5 or higher
Camera
Sony Exmore sensor: Ultra crystal-clear image support up to 4K
Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
SmartFrame & SmartSpeaker: Automatic FOV adjustment (auto focus) to fit all participants and focus on the speaker
120° wide field of view
True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
Digital zoom rate up to 4X leveraging 4K sensor
3D denoise technology maintains clear and natural imaging in low light conditions
Mirror, AE, white balance: Auto, manual override via PTZApp
Minimum focus distance: 80 cm
Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
Motorized Pan and Tilt Movement
Pan: Total horizontal viewing area 180°
Tilt: Total vertical viewing area 105°
10 camera presets (through remote control)
Fast and quiet pan & tilt movement
Audio
Microphones: 2 unidirectional microphones supporting 6 m pickup
5Wx2 stereo full range speakers with professional bass port tuned for communication
Volume up to 96 dB SPL at 1/2 meter
Echo cancellation
Noise suppression
3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones
HDMI
DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
1080p HDMI output to TV**
** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp
Connectivity
12V/5A power adaptor
Mini DIN6 for RS232 connection
USB type C connector
HDMI out connection (DisplayLink)
Phone in (3.5 mm audio jack)
Mic input
Wireless connection with mobile devices**
**Wireless function is not supported in the USA and some other countries. Please contact a local agent for details.
**Wireless connection does not support wireless speakerphone devices.
Video Format
YUV, YUY2, M-JPEG
USB
3.1 Gen 1, backward compatible USB 2.0
UVC (USB Video Class) 1.1
Control
IR remote control
VISCA/pelco P/pelco D via RS232
UVC/UVA plug-and-play
PTZApp
Security and Mount
Camera wall-mount bracket included
VB342+ unit
Power cable 10 ft (3 m)
USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
USB 3.1 type-A to type-C adapter
Quick-start guide
Wall-mount bracket and screws
Warranty card
Remote control
Battery
