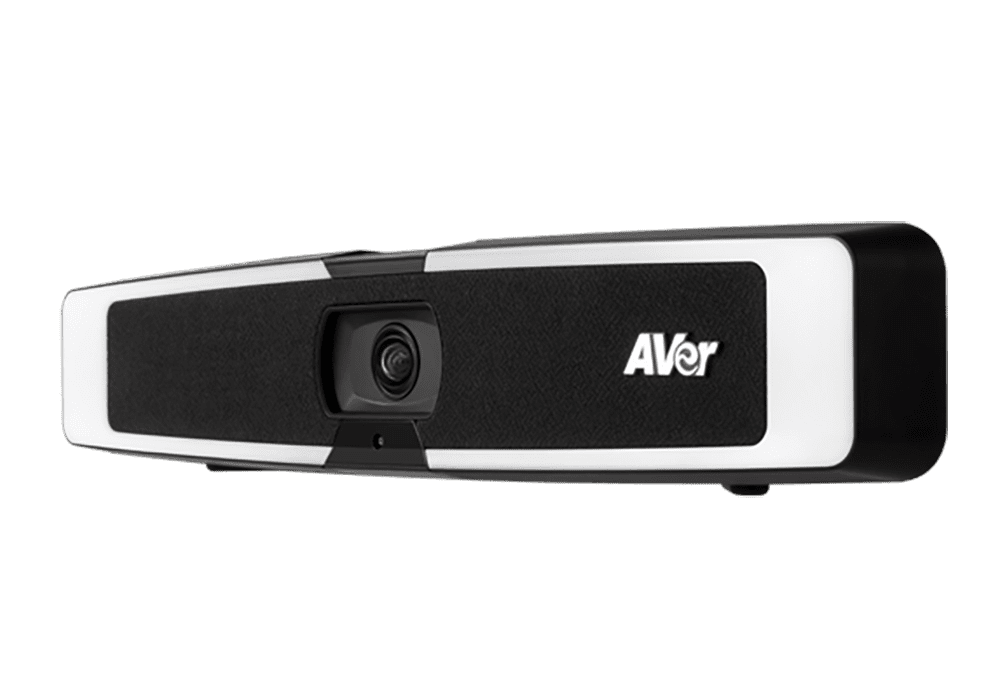

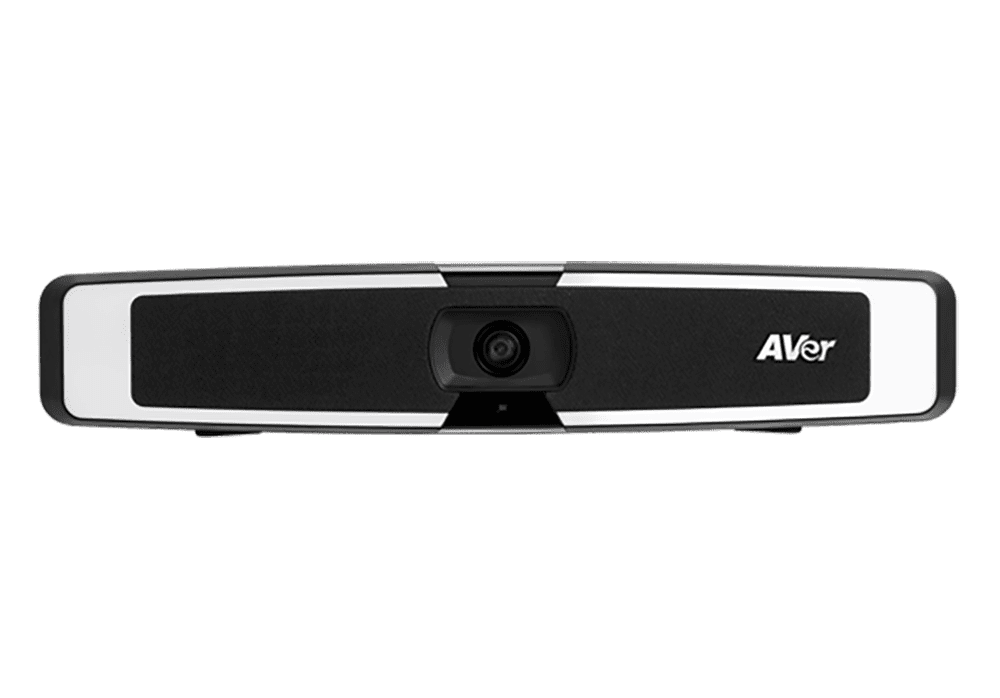

The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.
Look energetic and professional onscreen no matter where you are. AVer’s VB130 automatically adjusts lighting levels during virtual meetings in dim rooms*, and it also offers full-range color temperature (2700–5700 K) to fit any environment. Show your best side via AVer Intelligent Lighting.
Make sure you have an uninterrupted video meeting experience with the VB130’ s audio shield. AVer noise-blocking technology provides an adjustable audio fence that lets you silence any sound outside the viewing angle. Maintain focus on the meeting at hand to take advantage of every business opportunity.
Package dimensions
406(L)x146(W)x189(H) mm
Package weight
2.358 kg
Camera
350(L) x 65(H) x 75(D) mm/0.922 kg
Remote control
149.72 x 42.3 x 19.29 mm/50g
Windows® 7/10
MacOS X 10.7 or later
Google Chromebook™ version 29.0.1547.70
Camera
4K optics lens, 120° FOV, up to 4X zoom
Sony 4K sensor: ultra-crystal-clear image in any lighting
Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
Adjustable audio fence: freedom to define your meeting area

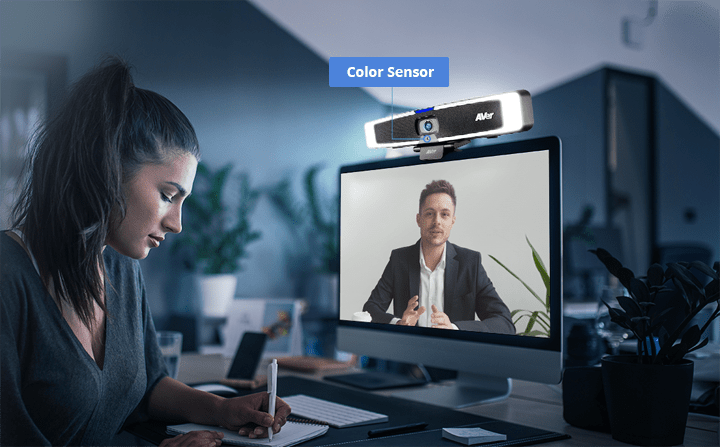

Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment*
SmartFrame: automatic FOV adjustment (auto focus) to fit all participants

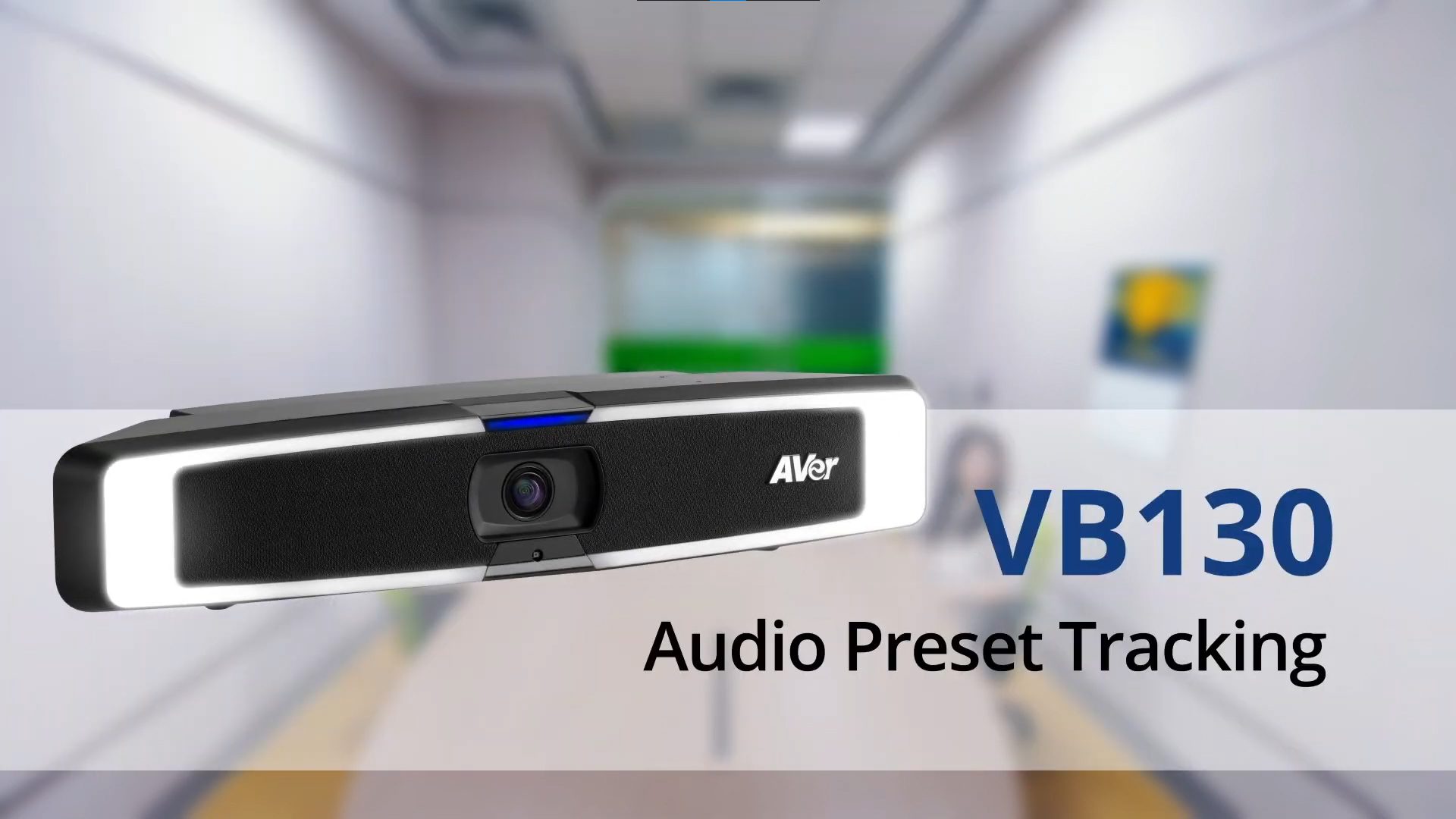

SmartSpeaker: Voice triggered tracking people or specific preset areas.
True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
Mirror, flip, AE, white balance: auto/manual override via PTZApp2
Minimum focus distance: 60 cm
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
10 camera presets (through remote control and IP web page)
*The best lighting distance is for people sitting within 1meter far from the camera
Audio

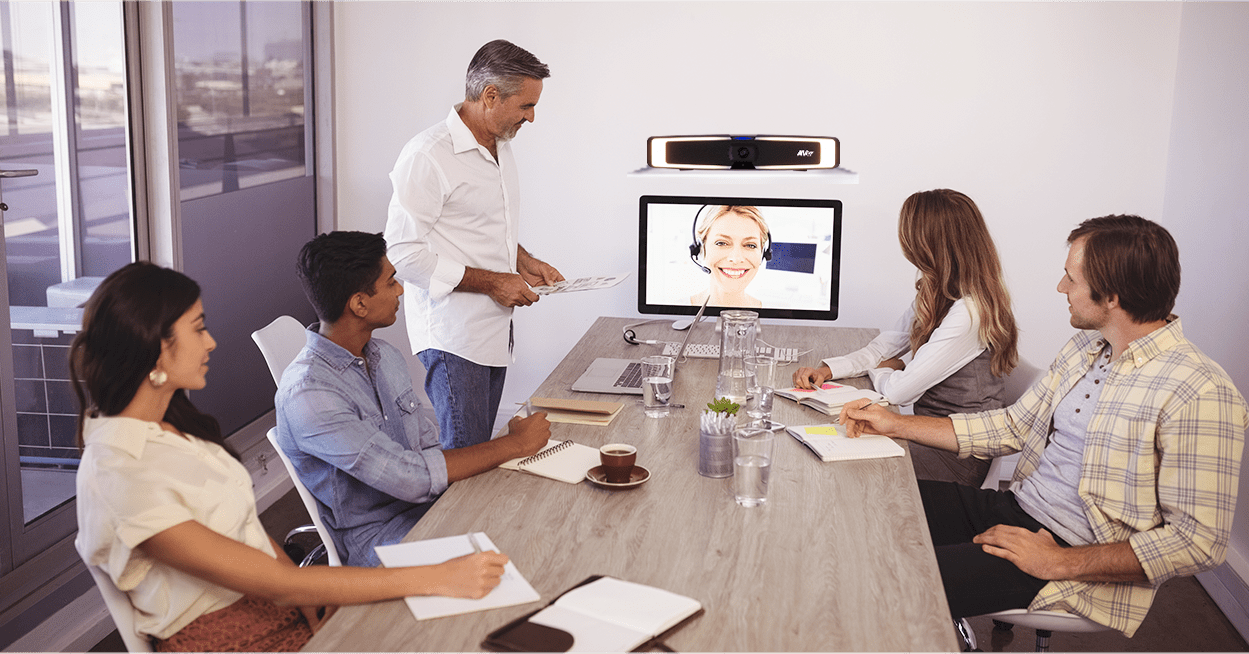

Beamforming microphone array: 5 microphones, 4-meter pickup range
Echo cancellation and background noise suppression
Supports an expansion microphone
6W speaker with a professional bass port tuned for communication
180Hz–20kHz speaker frequency response
Output volume: 94dB SPL +/-2dB at 0.5 meters

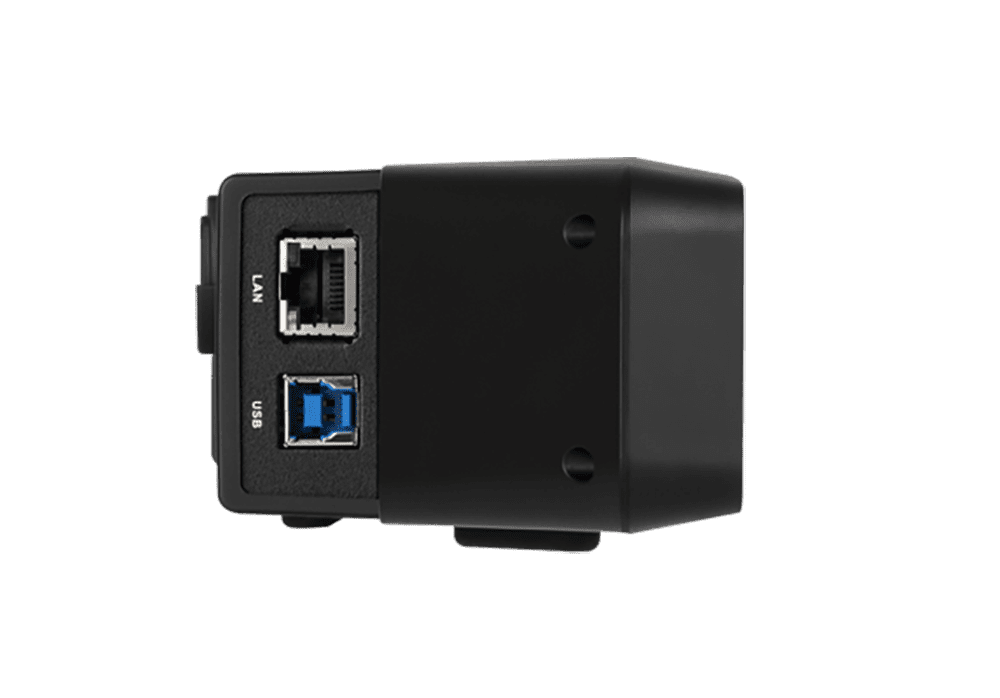

Connectivity
12V/2A power adapter
Mini-B for expansion microphone connection
USB Type-B 3.1 connector, backward compatible with USB 2.0
RJ45 port for Ethernet
USB 2.0 Type-A for wireless connection*
*Optional wireless dongle is required to connect with mobile phone
Video Format
YUV, YUY2, MJPEG
Network video compression format: H.264
Network protocols: RTSP, RTMP*
*When USB streaming is in use, RTSP and RTMP are not available.
USB
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB video), UAC 1.0 (USB audio)
Control

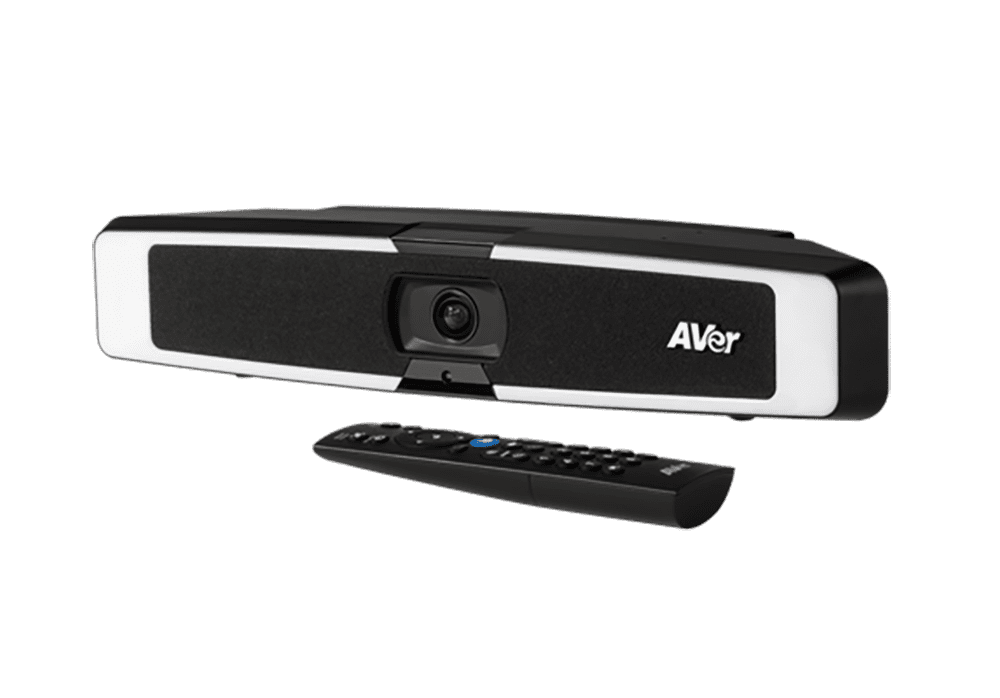

IR remote control
WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)
UVC/UVA plug-and-play
PTZApp 2
Mount
Screen mount kit
Camera wall-mount bracket
Optional Accessories
Wall mount and mounting screws
Screen mount kit
BT Dongle
10m/20m expansion microphone
10m/20m/30m USB 3.1 extension cable
USB 3.1 GEN1 Type-B to Type-A cable, 3 m
Warranty
Camera: 3 years
Accessories: 1 year
Hardware Specs
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0
Power Supply
AC 100V–240V, 50/60 Hz
Consumption: 12V/2A
Free Applications for Meeting Collaboration
(Free Apps support on Windows® and Mac® computers)
EZManager 2: Camera Central Management Software
Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp 2: Camera Setting Software
View live video, people counting number, meeting interval information
Enable Skype for Business far-end control
Upgrade firmware automatically or manually
Control the camera
Set parameters and adjust the camera image
Diagnose operating status
EZLive: Broadcasting Software
Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording
Environmental Data
Operation temperature: 0 ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20 ~ 60°C
Storage humidity: 20% ~ 80%
VB130 unit
Power cable 10 ft (3 m)
USB 2.0 Type-B to Type-A Cable 15 ft (5 m)
QR code card
Screen mount or wall mount*
Remote control
Tripod screw
