Description
Descriptions

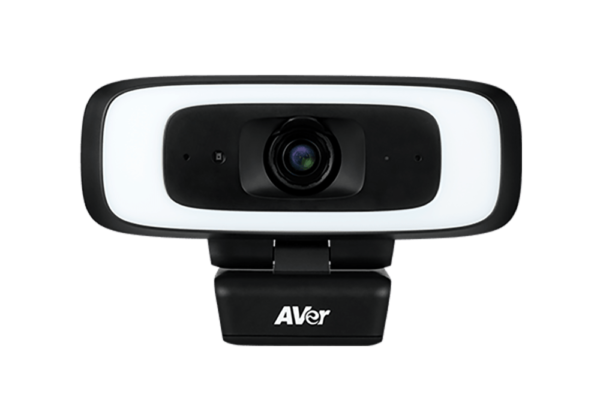

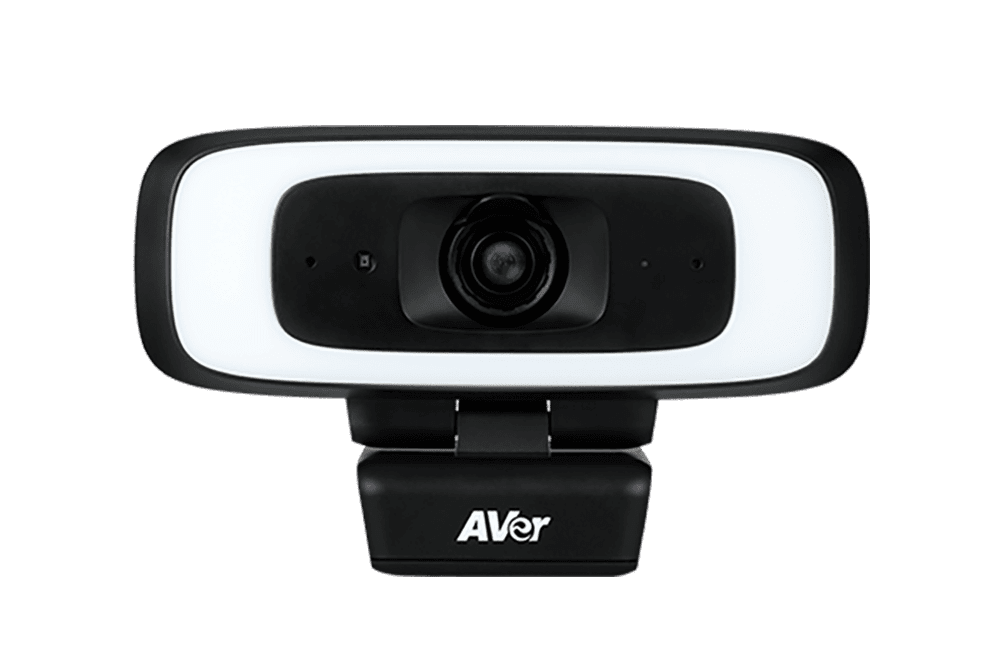

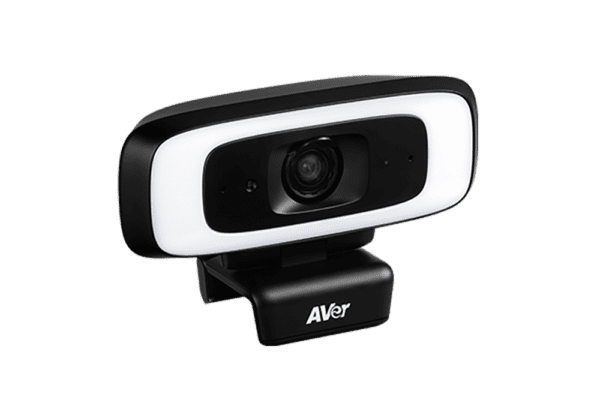

4K Camera with Intelligent Lighting for Small Rooms and WFH
The CAM130 is a 4K camera with intelligent lighting for use in small rooms and WFH. Embedded auto and preset framing can follow and capture meeting participants even when they’re wearing masks, saving time and enhancing meeting efficiency. Also, a built-in lens cover is designed to protect your privacy from hackers, and flexible mounts fit diverse usage scenarios. All that innovation adds up to brighter and better video conferences.
Key Features
Professional 4K Camera Offers Lifelike Imaging
Lens Cover Secures Privacy in a Virtual World
Intelligent Lighting Automatically Adjusts to Fit Light Conditions
Establish an energetic and professional image in virtual meetings. When you’re working from home in a dim room, the camera offers full-range color temperature and automatic lighting level adjustments. The CAM130 ensures that you look great in any light.
Auto Framing That’s Easy to Use

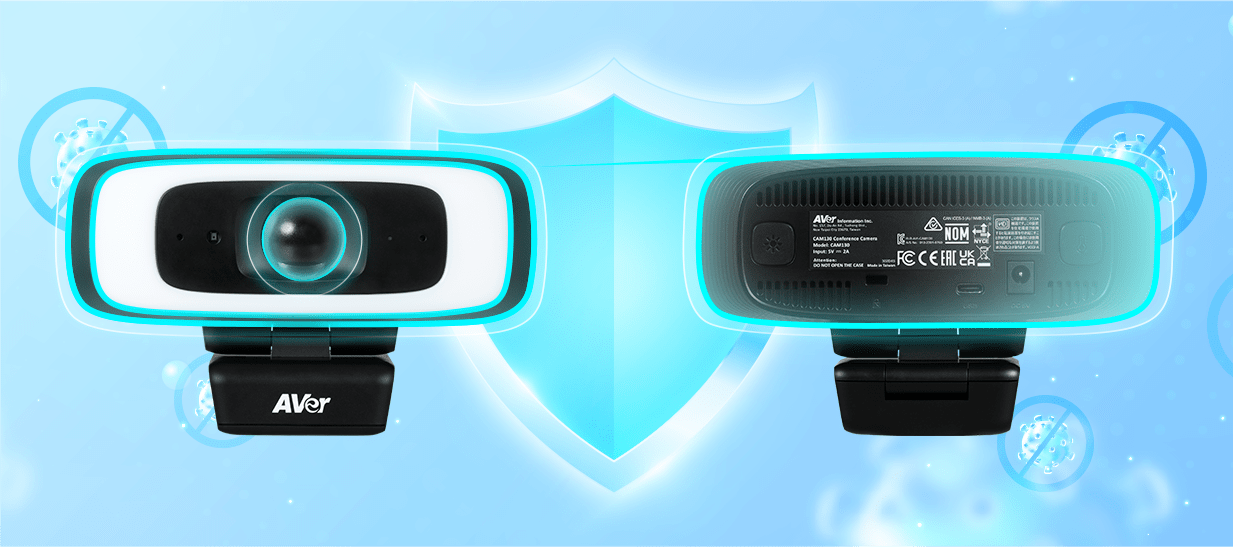

Antibacterial Surface Guards Your Health
AVer’s germ-free solution provides health and safety for meetings. Three spray-coating layers cover the camera with antibacterial protection, so you can operate it without worrying about infection.
Specifications
Main unit
217(L)*155(W)*118(H) mm
Package weight
0.729 kg
Camera
160 (L) x 37 (H) x 60 (D) mm/ 0.282kg
Remote control
149.72 x 42.3 x 19.29 mm/50g (optional item)
Windows® 7/10
MacOS X 10.7 or later
Google Chromebook™ version
29.0.1547.70
Camera
4K optical lens, 120° FOV, up to 4X zoom via ePTZ
Sony 4K sensor: ultra-crystal-clear image in any lighting
Frame rates: (16:9) 4K 30fps ; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
Intelligent fill light: automatically adjusts lighting levels to make you look energetic in a dim environment*
SmartFrame: automatically adjusts FOV (auto focus) to track and fit all participants onscreen
Innovative Preset Framing: Follows the presenter through preset areas
True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
Mirror, flip, AE, white balance: auto/manual override via PTZApp2
Minimum focus distance: 60 cm
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
10 camera presets (through remote control and IP web page)
Standard tripod screw holes
* For best lighting results, sit within 1 meter away from the camera
Microphone
2 unidirectional microphones
Frequency response: 100–12K Hz
Sensitivity: -37 dB
Connectivity
USB type-C 3.1 connector, backward compatible with USB 2.0
DC jack for power adapter (for USB 2.0 connection while using fill-light function)
Video Format
YUV, YUY2, MJPEG
USB
3.1 Gen 1, backward compatible with USB 2.0
UVC 1.1 (USB video), UAC 1.0 (USB audio)
Control
IR remote control
UVC/UVA plug-and-play
PTZApp 2
Security and Mount
Built-in TV clip
Kensington slot
1/4" tripod mounting screw
System Requirements
Windows® 7/10
MacOS X 10.7 or later
Google Chromebook™ version 29.0.1547.70
Hardware Specs
3.2 GHz Intel® Core™ i5-4460 processor
4 GB RAM or more
USB 3.1 port, backward compatible with USB 2.0
Power Supply
AC 100V–240V, 50/60 Hz
5V/2A
Environmental Data
Operation temperature: 0 to 40°C
Operation humidity: 20% to 80%
Storage temperature: -20 to 60°C
Storage humidity: 20% to 80%
CAM130 unit
Power adapter (10 ft/3 m)
USB 3.1 type-C to type-A cable (6 ft/1.8 m)
QR code card
Tripod screw
