Aten 4×4 True 4K HDMI Matrix Switch VM0404HB

Videowall Controller

ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

Tag: Aten

Description

Descriptions

Aten_videowall_vm0404hb

ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

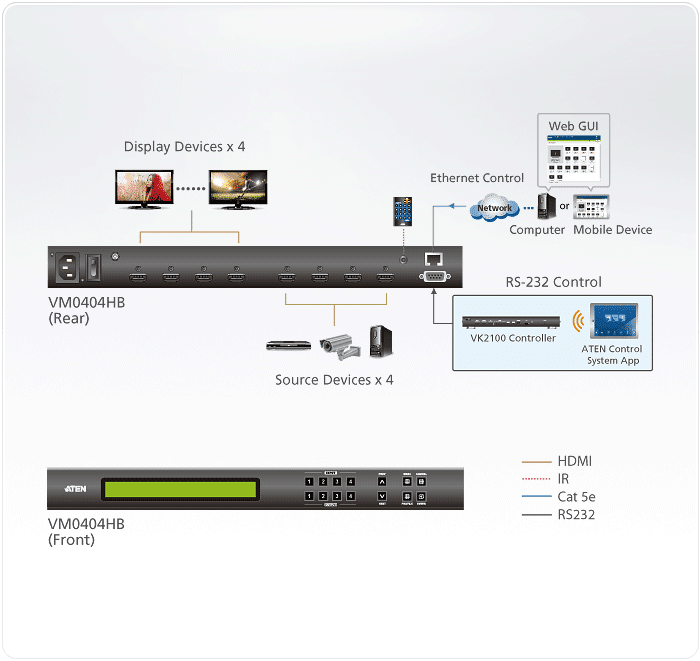

The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Key Features

  • Connects any of 4 HDMI sources to any of 4 HDMI displays
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Signaling rates up to 6 Gbits for flawless true 4K output
  • Supports Dolby True HD and DTS HD Master audio
  • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
  • Supports Consumer Electronics Control (CEC)
  • Power-on Detection – switches to the next powered-on source when one source is powered off
  • ESD protection for HDMI
  • Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
  • Firmware upgradeable
  • Rack mountable (1U design)
aten_videowall_VM0808hb

Specifications

Weight2.47 kg ( 5.44 lb )
HousingMetal
Dimensions (L x W x H)43.72 x 15.28 x 4.40 cm
(17.21 x 6.02 x 1.73 in.)
Operating Temperature0-40°C
Humidity0 - 80% RH, Non-Condensing
Storage Temperature-20 - 60°C
Video Input
Interfaces4 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance5.0 m / 4K@60Hz (4:4:4)
Video Output
Interfaces4 x HDMI Type A Female (Black)
Max. Distance5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance100 Ω
Video
Max. Pixel Clock600 MHz
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate18 Gbps( 6 Gbps Per Lane)
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power1 x 3-Prong AC Socket
Carton Lot1 pc
Power ConsumptionAC110: 17.8W:83BTU
AC220:17.6W:83BTU
Power
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Rack Mounting Kit
  • 1x User Instructions
