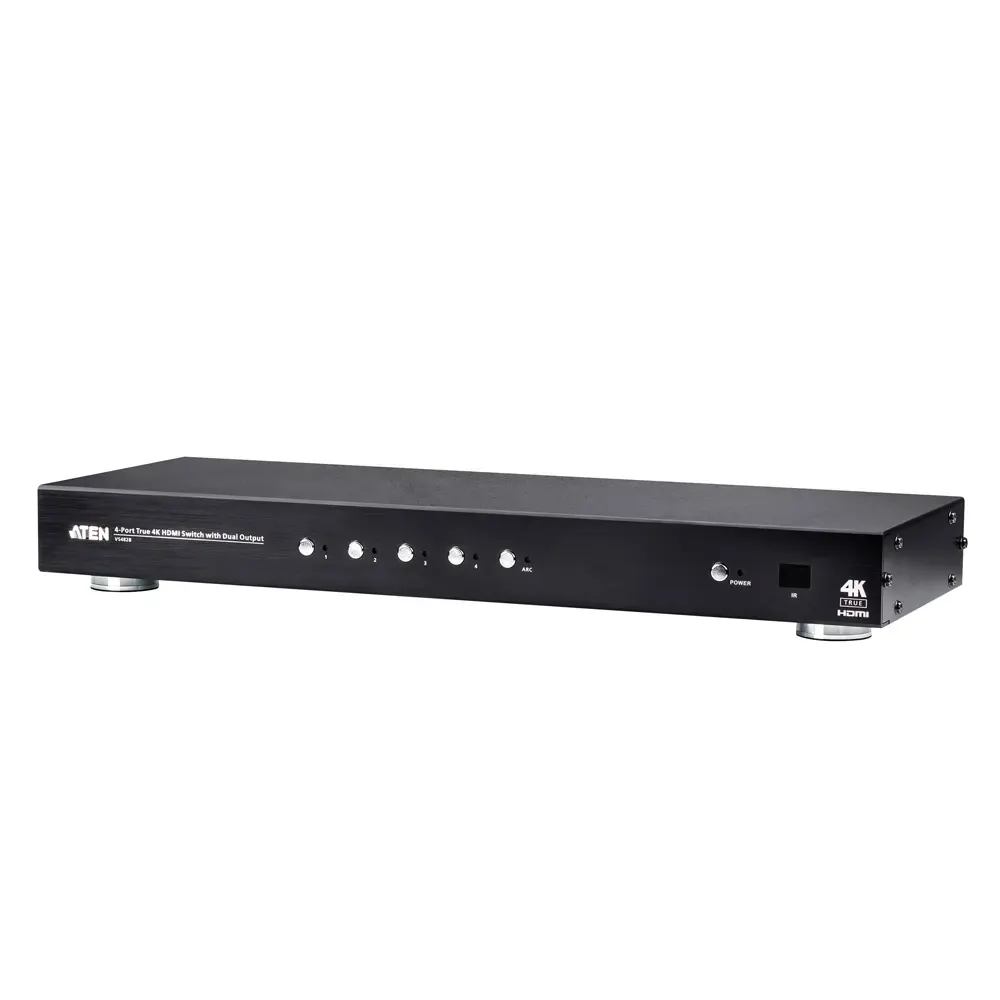

Aten 4-Port True 4K HDMI Switch with Dual Output – VS482B

Videowall Controller

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable. Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input.

Tag: Aten

Description

Descriptions

vs482b.professional audiovideo.video switches.45

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.

Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert™, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

Key Features

  • Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
  • Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
  • HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
  • Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
  • Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
  • OSD for system configuration settings and information display
  • Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
  • Built-in bi-directional RS-232 serial control port for high-end system control
  • HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
  • Supports 5.1 channel audio output
  • Supports Consumer Electronic Control (CEC)
  • Rack mountable
  •

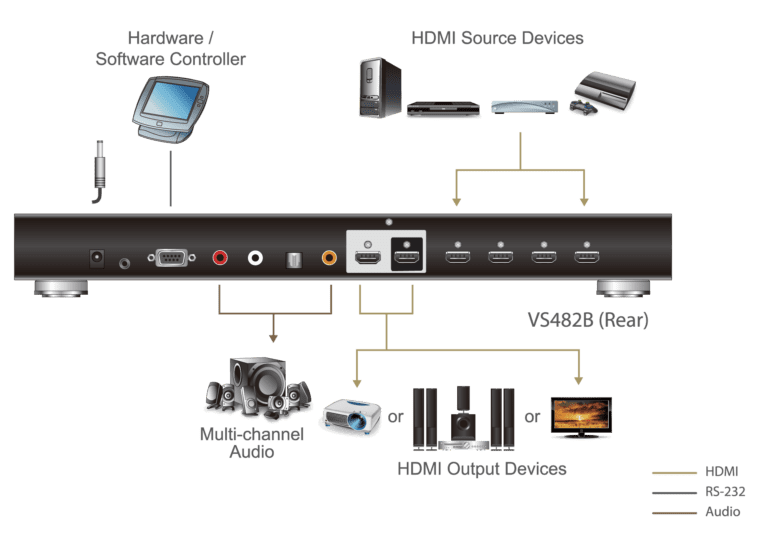

DIAGRAM

vs482b.professional audiovideo.video switches diagram

Specifications

LEDs
Input LED (Green) x 4 (HDMI-In)
Audio LED (Green) x 1 (ARC ON/OFF)
Power LED (Green/Orange) x 1 (Power ON/OFF)

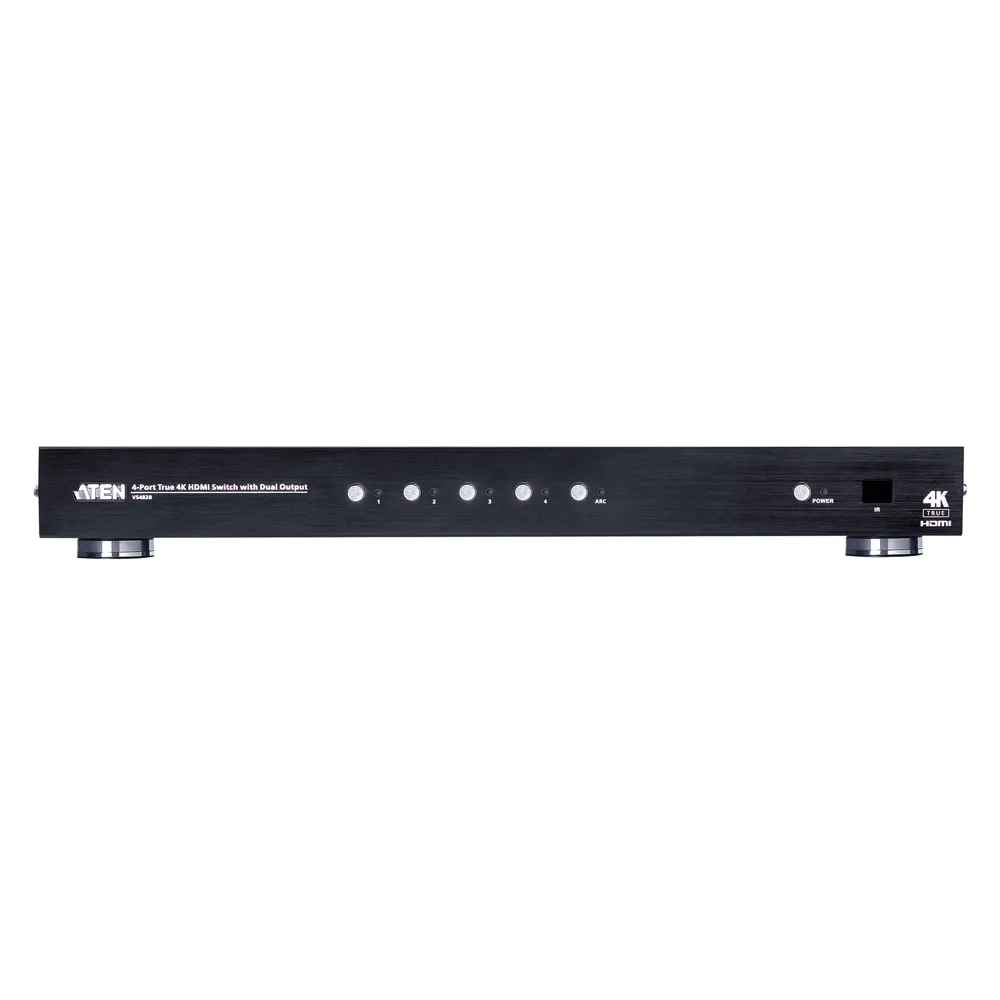

Switches
Video Input Port Selection Push button x 4 (HDMI-In)
Mode Selection Push button x 1 (ARC ON/OFF)
Power Push button x 1 (Power ON/OFF)

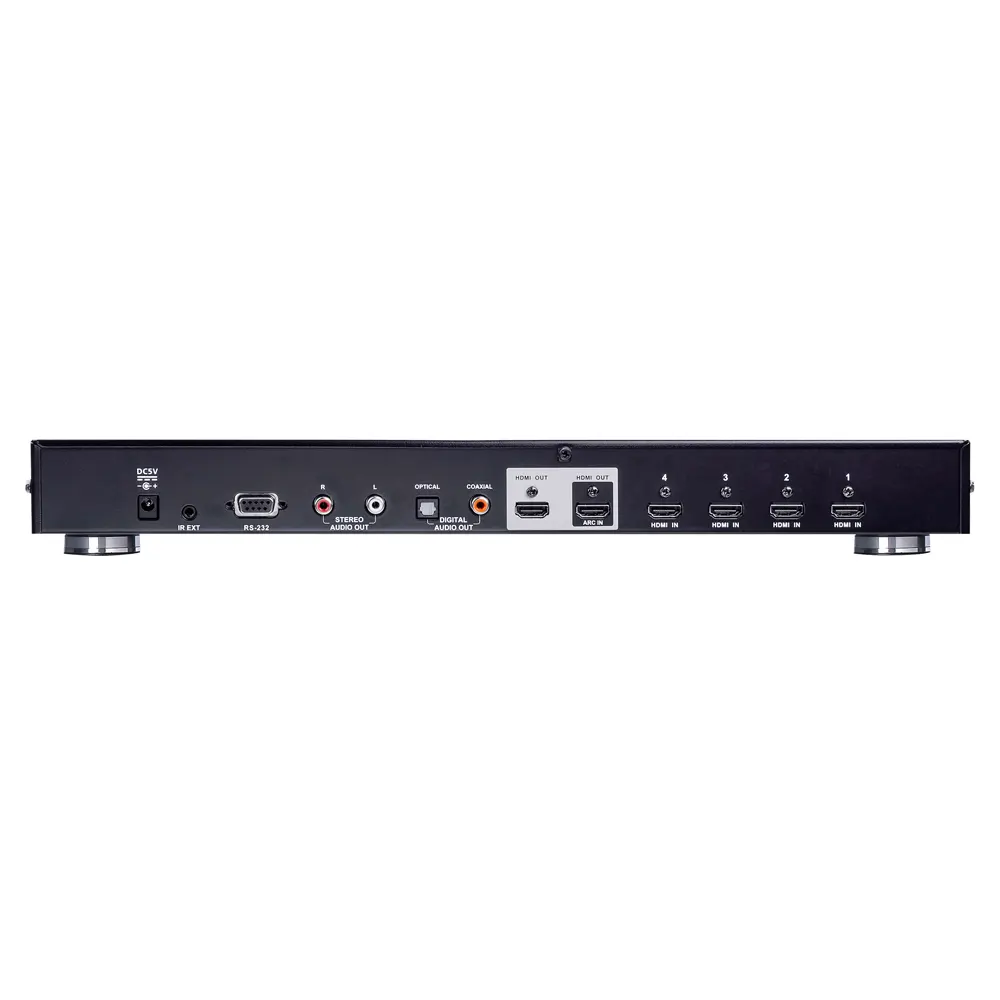

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5m (4096x2160@60Hz, 4:4:4)

Video Output
Interfaces 2 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5m (4096x2160@60Hz, 4:4:4)

Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Audio Return Channel, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance Up to 5m (input / output)

Audio
Input 4 x HDMI Type A Female (Black)
Output Analog: 2 x RCA (Red / White)
Digital:
2 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange)

Control
RS-232 Function: Port switching & FW upgrade
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8,
Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
1 x IR Receiver
EDID Settings EDID Mode: Default (4K@60Hz) / Port-1 / Remix

Connectors
Power 1 x DC Jack
Power Consumption DC5V:3.29W:15BTU

Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing

Physical Properties
Housing Metal (aluminum)
Weight 0.09 kg ( 0.2 lb )
Dimensions (L x W x H) 8.80 x 6.00 x 15.00 cm
(3.46 x 2.36 x 5.91 in.)

Carton Lot 10 pcs

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

  • 1x VS92DP 2-Port True 4K DisplayPort MST Hub
  • 1x USB Type-A to USB Micro-B cable
  • 1x user instructions
