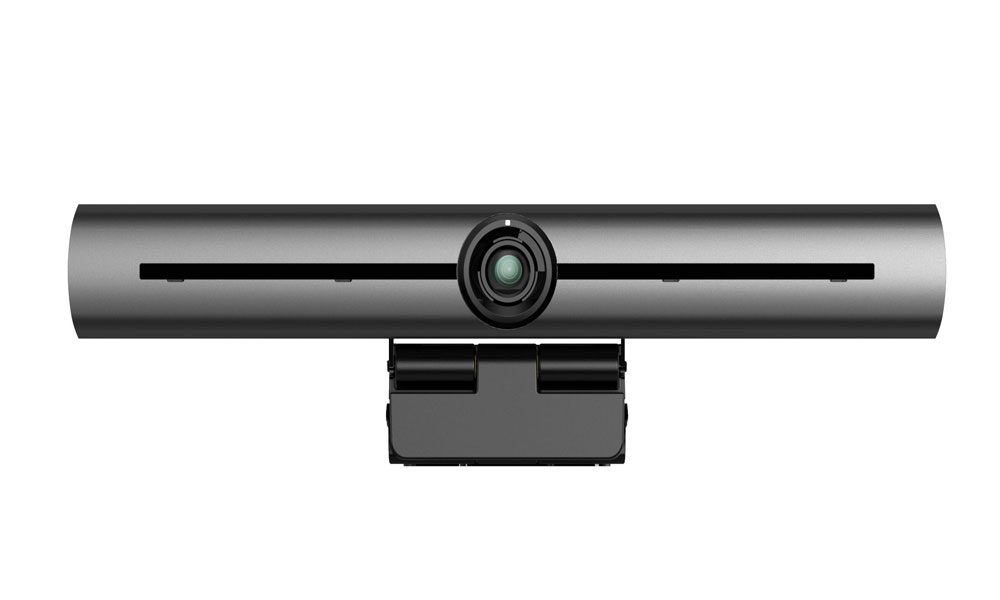

Arvia Video Conferencing PTZ Camera ARV-VC200
Video Conferencing4K, EPTZ, Wide Angle, Metal Case. This product is a new 4K UHD ePTZ video conference camera. It is built with AI functions, which can automatically frame all people in the meeting and make them at the middle of the scene.It also has perfect functions and superior performance, which adopts advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. Easy and convenient to install and maintain, stable and reliable.
Description
4K, EPTZ, Wide Angle, Metal Case. This product is a new 4K UHD ePTZ video conference camera. It is built with AI functions, which can automatically frame all people in the meeting and make them at the middle of the scene.It also has perfect functions and superior performance, which adopts advanced ISP processing algorithms so as to provide vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. Easy and convenient to install and maintain, stable and reliable.
- 4K UHD: It employs 1/2.5 inch, 8 million pixels high-quality CMOS sensor; supports 4K UHD; provides 4K@ 30fps MJPG video resolution at most; and provides clear UHD video and vivid expressions and movements. At the same time, it is compatible with 1080p and 720p resolution.
- EPTZ: EPTZ and 4X digital Zoom
- Built-in pickup: Includes 2 built-in pickups, all-round pickup. Noise suppression algorithm ensures your voice be perfect. The effective pickup distance is up to 5 meters.
- Dual-stream output: The USB3.0 port support mainstream and sub-stream output at the same time.
- Auto framing: With an excellent facial detection algorithm, automatically adjust the zoom according to the number of people in the meeting. It can frame all the meeting people and make them shown in the middle of the scene.
- Wide view angle without distortion: 83°/ 87°/ 120° super wide view angle lens for options
- Low Noise and High SNR: Low Noise CMOS effectively ensures high SNR of video. The image is still clear even under low light conditions.
- Multiple Video Conferencing Installations: Standard equipped with mold clamp. Easy to install on any devices, such as LCD screen, PC, table and tripod.
- Easy to Use: No need to download driver; USB Plug and play.
- Wide Applications: Personal video conferencing, enterprise video conferencing, unified collaboration and etc.
VIDEO CONFERENCING CAMERA SPECIFICATION
| Model Number | AM | BM | HM | |||
| Camera Parameter | ||||||
| Image Sensor | 1/2.5 Inch High-Quality 4K CMOS Sensor | |||||
| Effective Pixels | 8.28MP 16:9 | |||||
| Video output port | 1* USB3.0, Type B, support audio output over USB3.0 | |||||
| Audio input | 2 built-in MIC pickups | |||||
| View Angle | 93.5°(D)/83°(H)/ 53.1°(V) | 95°(D)/87°(H)/ 56°(V) | 126°(D)/120°(H)/85°(V) | |||
| Video Format | Main stream: 3840×2160@30fps、1920×1080P@30fps/25fps、1280×720P@30fps/25fps, etc.
Sub-stream:1280×720P@30fps/25fps、640×480P@30fps/25fps；320×172P@30fps/25fps, etc. | |||||
| Min Illumination | 0.1Lux (F1.8, AGC ON) | |||||
| Lens | f=3.5mm | f=3.24mm | f=2.72mm | |||
| Aperture | F2.0±5% | F2.1 | F2.5 | |||
| Digital zoom | 4X | |||||
| DNR | 2D & 3D DNR | |||||
| Ultra-low illumination | On/off | |||||
| White Balance | Auto / Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K | |||||
| Focus | Auto / Manual/ One push Focus (available on AM series) | |||||
| Exposure | Auto / Manual | |||||
| Auto framing | On/off/sensitivity | |||||
| Backlight compensation | On/off | |||||
| Dual stream | On/off | |||||
| SNR | >55dB | |||||
| USB Feature | ||||||
| Operation Systems | Windows 7(1080p at the most), Windows 8.1, Windows 10 ; macOS™ 10.10 or higher, Linux (Require to support UVC.) | |||||
| Video Compression format | YUY2, MJPG, H.264, H.265 | |||||
| Audio over USB3.0 | Support | |||||
| USB communication protocol | UVC, UAC | |||||
| PTZ control | Support EPTZ | |||||
| Hardware requirement | 2.4 GHz Intel@ Core 2 Duo processor or higher，2GB RAM or more，USB 2.0 /USB3.0 port ( USB 3.0 is needed for 4K) | |||||
| Other Parameters | ||||||
| Input Voltage | 5V | |||||
| Input Current | 1A(Max.) | |||||
| Power consumption | 5W(Max.) | |||||
| Store Temperature | -10℃～+60℃ | |||||
| Store Humidity | 20%～90% | |||||
| Working
Temperature | -10℃～+50℃ | |||||
| Working Humidity | 20%～80% | |||||
| Dimension（W*H*D） | 222mm×93.25mm×56.5mm | |||||
| Weight | Around 0.53kg | |||||
| Application | Indoor | |||||
| Accessory | User Manual; Warranty card, remote controller, USB3.0 cable | |||||
