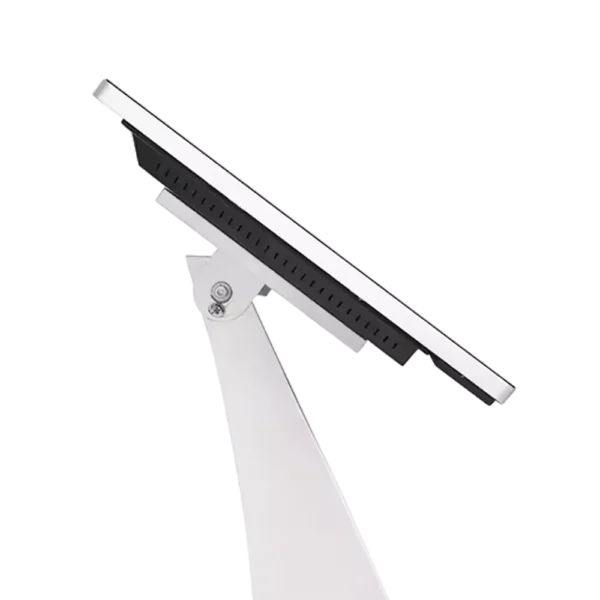

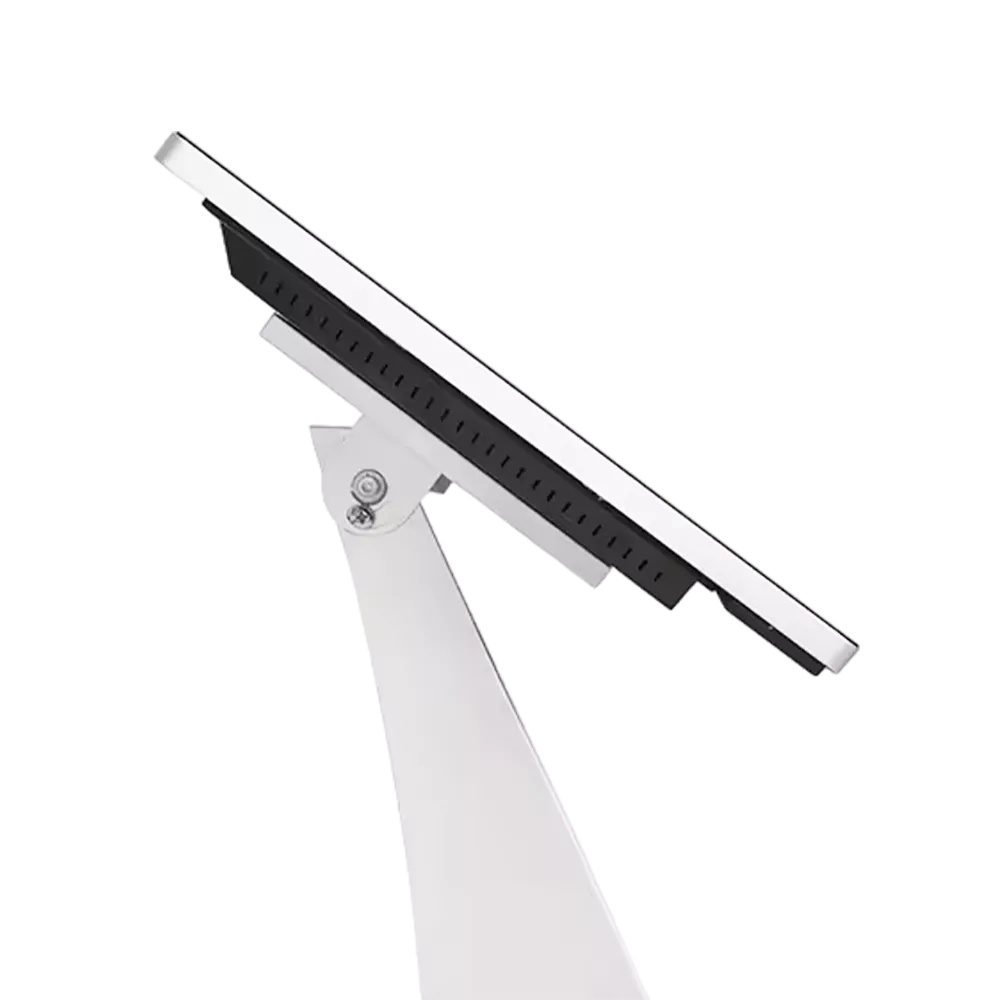

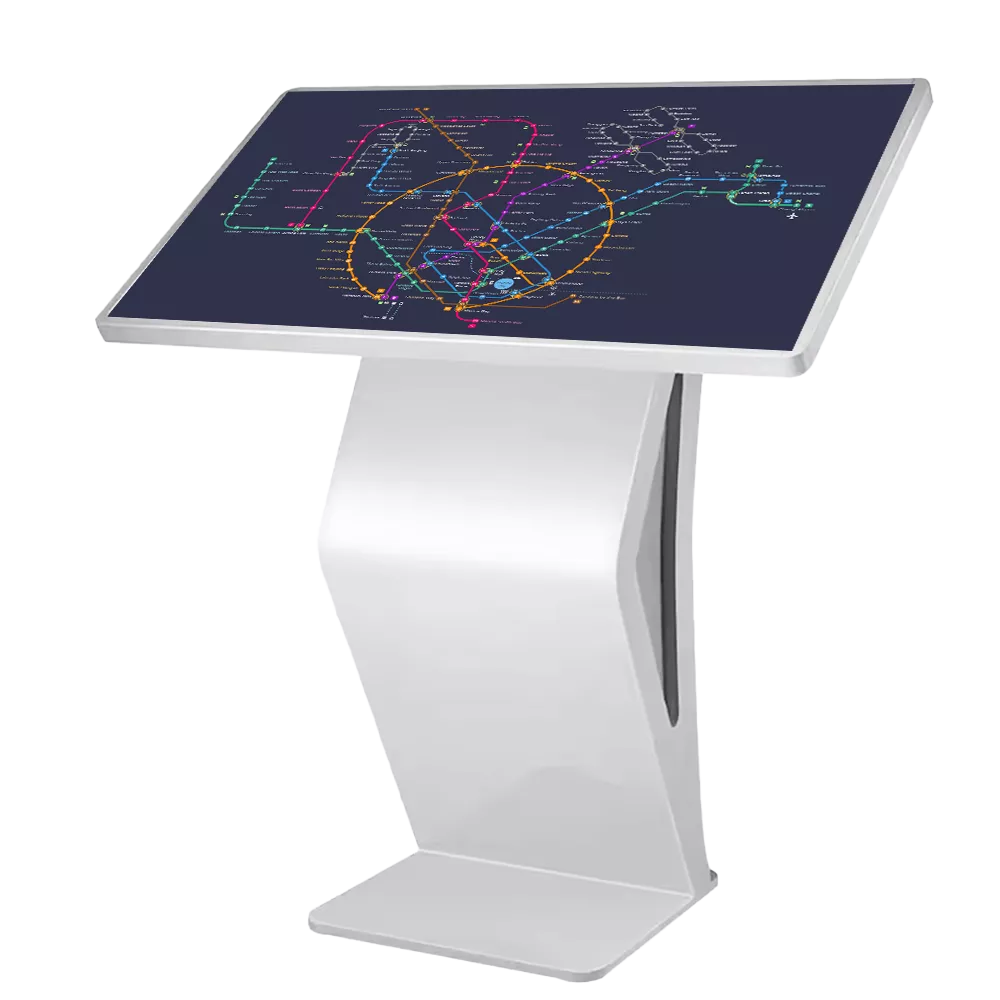

Arvia TMK 002 Horizontal Kiosk
Digital SignageFloor Standing KioskHorizontal Floor-standing Digital Signage Display
• Full HD Stable Display
• Supports Android/Windows/Linux System
• Supports LAN or WAN Digital Signage Content Management Software
• Diverse Customization
• Optional Touchscreen
• Panel Life Over 50000 hours
Description
Descriptions

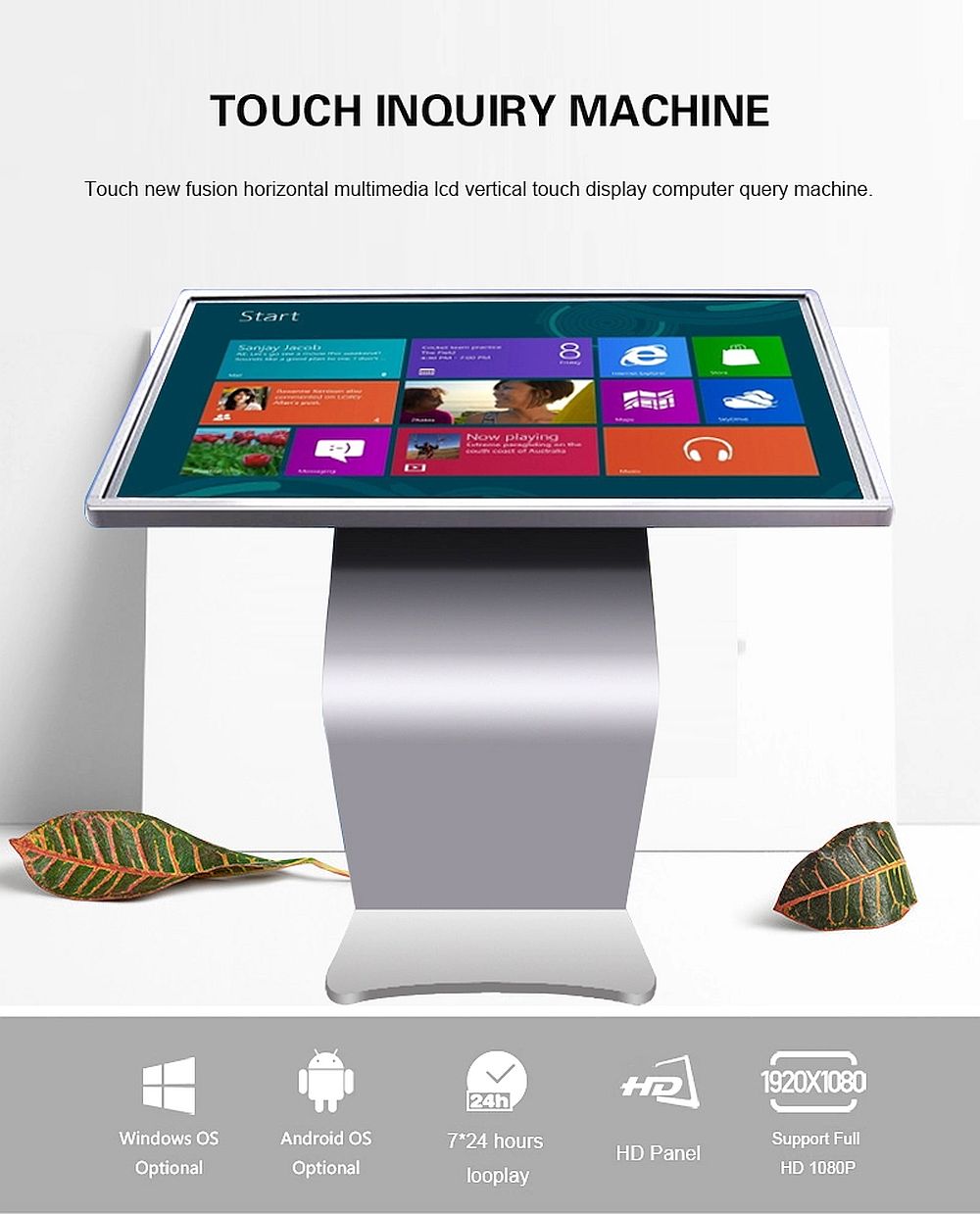

The Touchscreen Kiosk (Horizontal design) is perfect for retail, showroom, shopping mall, lobbies and many
more place. It can be actract people to do something at your kiosk. The integrated, powerful operating
system offers users exciting capabilities to deliver rich, engaging content with minimal operational burden
required. Beyond a potential for sales and engagement, businesses also benefit from the reduced total
operational costs that come with a low-maintenance, hassle-free visual display upgrade.
Key Features

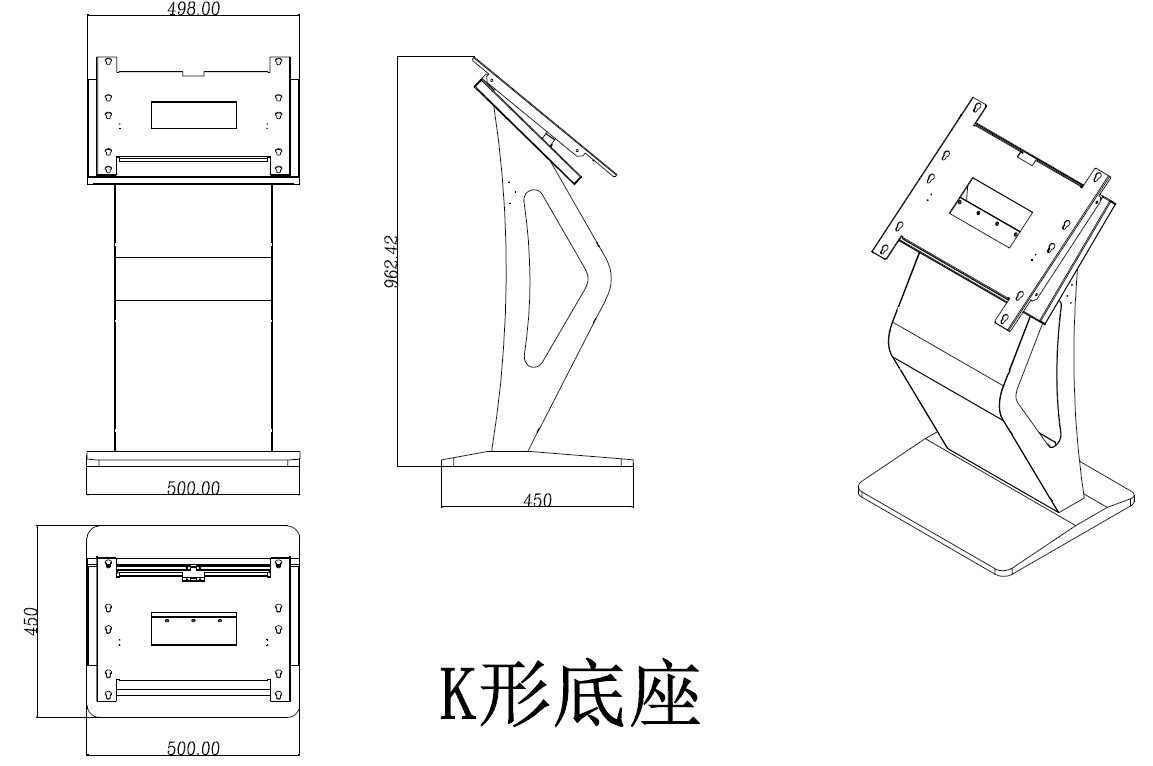

KIOSK STAND TMK 002 DIMENSION
Specifications
OS
Android 6
CPU
RK3288, eight-core ARM Cortex A7 2.0
GHz Upgradeable to RK3366
GPU
ARM Mail-764 / Intel HD Graphics
RAM
DDDR 2GB (Upgradable to 4GB)
Built-in
storage capacity
16GB SD, Support up to 32GB
WIFI
WIFI module + WIFI Antenna + RJ45 Black & White
Panel Size
24”-65” real color LCD screen
Aspect Ratio
16:9
Max. Resolution
1920x 1080
Dot Pitch
0.74mm(H) x 0.74mm(W)
Number of Color
16.7M
Brightness
450cd/m2
Contrast Ratio
3000:1
Touch Technology
Infrared, Touch Foil & Capasitive
Responsive Time
5ms
Panel Life
above 50000 hours ( Warranty 1 year )
Video formats
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2),
MPEG1 (VCD: DAT/MPG1)
Audio formats
MP3, WMA
Photo formats
JPG,PNG,BMP
Scrolling Text
ROL(UNICODE)
Input/output
interface
USB,HDMI,VGA,RJ45
Shell Material
100mm x 100m Casing : Plastic
Surface
Metal case with powder burning;
Tempered glass to protect; and
LCD panel
Speaker
2*10W built-in stereo speakers
Heat Dispersion
Built-in DC fans
Power
Standby
≤3W
Working
30W-180W
Power supply
AC 110V - 240V, 50/60HZ
Temperature
- Storage
- 7 to 65 Celsius degree
- Normal Working
- 5 to 65 Celsius degree
OSD Language
English, Chinese, French, German, Italian, Spanish, Arabic
