Arvia Mini PC V310-i5 8250U

CPU

Onboard Intel Core i5-8250u

TDP

15W

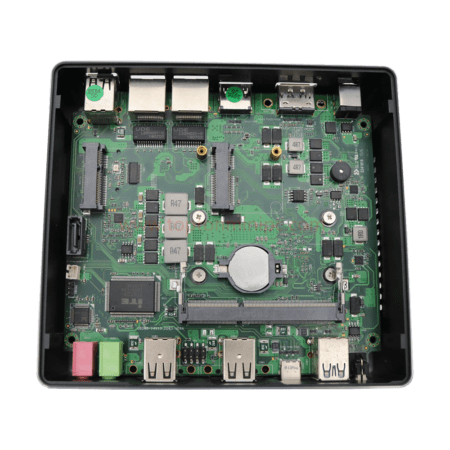

Motherboard

140 x 130mm customized size

Chipset

Intel Kaby Lake R

Memory

2 x SO-DIMM DDR4 Slot

Support 4GB/8GB/16GB/32GB

DDR4-2133/2400

OS

Windows 10/Linux

PXE

YES

Network

Onboard Realtek PCI-E Gigabit Ethernet NIC

10/100Mbps/1000Mbps BaseT LAN

Video

Intel® UHD Graphics 620

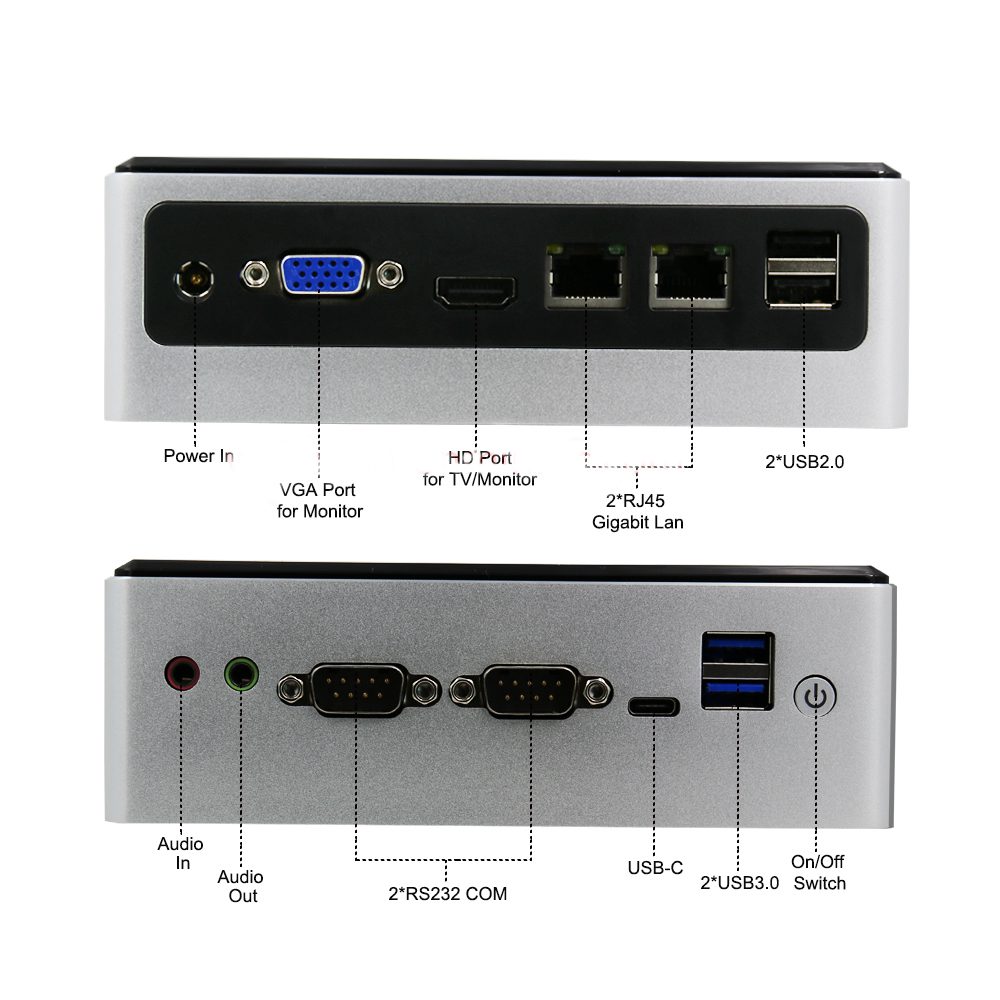

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x Power In

USB

6 x USB2.0, 2 x USB3.0

SD Card

1 x SD Card Reader

USB-C

1 x Type-C USB3.0

Display

1 x DP, 1 x HDMI

LAN

2 x RJ45 Giga LAN

Audio

1 x MIC, 1 x SPK

Storage

MSATA

1 x M.2 slot for NGFF/NVME SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install)

Wi-Fi

Module

1 x MPCIe slot for Wi-Fi module

Antenna

2 x inner RF cables and without external antenna

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

0/70 Centigrade

Relative Humidity

10%~85%

Product Dimension & Details

Size

137*150*50mm

Weight

Net 0.65kg, Gross 1.15kg

Shell

Black/Silver color aluminum alloy

Cooling Mode

With a copper cooling fan

Functions

AWAL, PXE, Wake On LAN, RTC

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord

Optional

1xHDMI cable, 1xUser Manual
