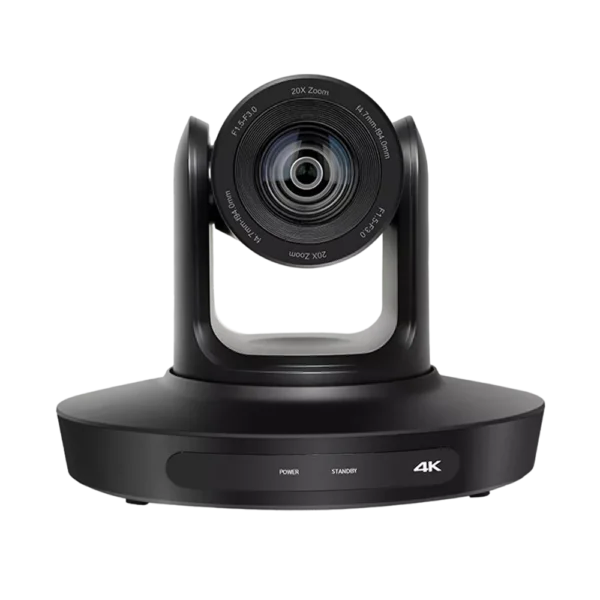

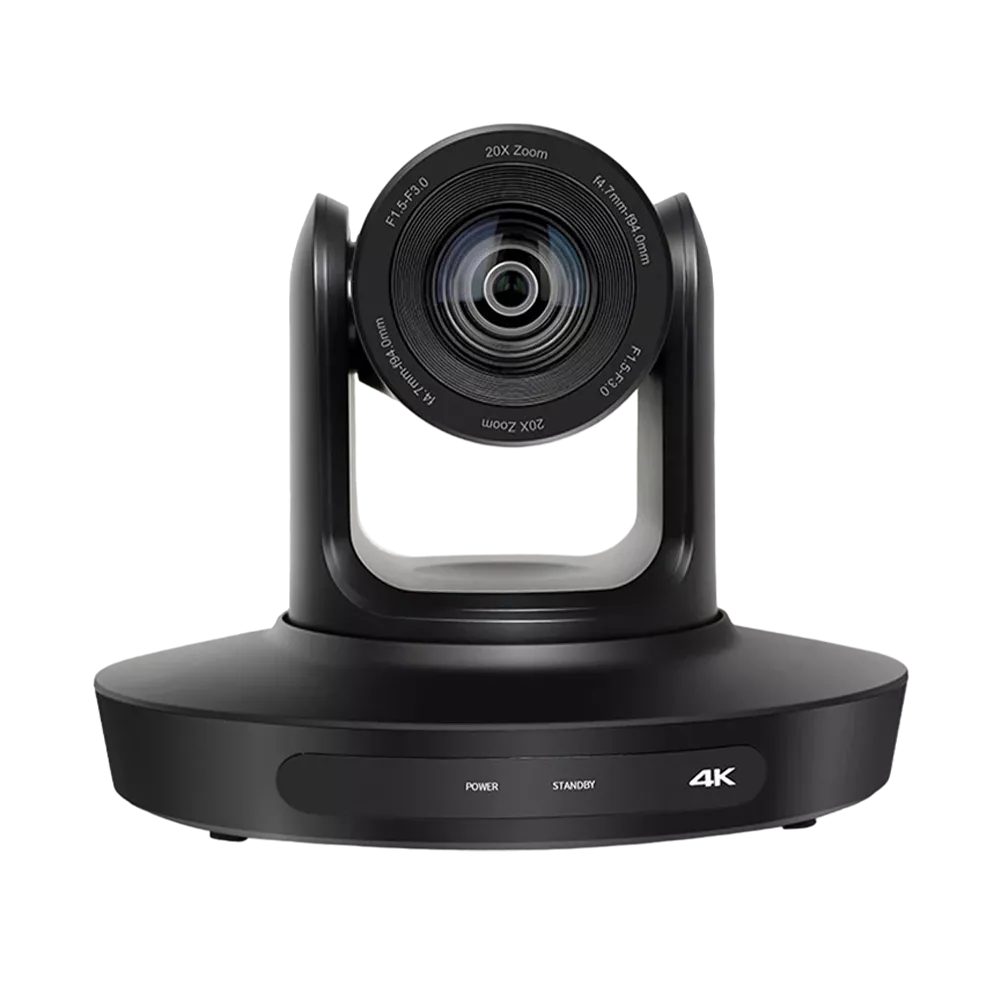

Arvia 4K PTZ Camera 360° – ARV-VC45

Description

– 4K Ultra HD Camera
– SONY 1/2.8” Progressive CMOS sensor
– 8.50 Megapixels
– High resolution with frame rate up to 4K 30fps (3840×2160)
– 20x Optical Zoom Lens
– High quality 20x optical zoom capability
– Wide-angle view of 58.7 degrees
– IR Remote Control
– Receives signals from its own infrared remote control
– Receives signals from consumer infrared remotes
– Sends signals through the VISCA port
– Low Light Sensor
– Advanced CMOS sensor reduces image noise in low-light conditions
– Maintains good quality with noise reduction
– Lens
– 20x optical zoom, f=5.2mm(w)~104mm(f)
– Horizontal Angle
– 58.7°～3.2° (T)
– White Balance
– Auto, Indoor, Outdoor, ATW, Manual
– Iris/Sensor
– F1.5～F3.0, SONY 1/2.8” CMOS
– Effective Pixels
– 8.29 Megapixels
– S/N Ratio
– 45dB
– Exposure
– Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority
– Minimum Illumination
– 0.1 Lux @ (F1.5, AGC ON)
– Resolution
– 3840*2160 p30/25
– 1920*1080 p60/59.94/50/30/29.97/25
– 1280*720 p60/50
– Digital Noise Reduction
– Supports 2D & 3D noise reduction
– Encoding Format
– H.264, H.265
– Profile
– Main, High, Baseline (H.264 only)
– Streaming Protocol
– RTMP, RTSP, SRT
– Main Code Stream Resolution
– 1080 (p30/25/20/15/10/5/3)
– Auxiliary Code Stream Resolution
– 640*480, 640*360, 480*360, 352*288, 320*240, 176*144
– HDMI
– HDMI1.4
– HDMI Mode: HDMI, DVI
– HDMI Color Space: RGB, YCbCr422, YCbCr444
– Audio In
– Unbalanced analog input (Line In) 3.5mm
– Sampling rate: 44.1K, 48K
– Encoding format: AAC
– USB
– Protocol: UVC1.1, UAC1.0
– UVC Video Coding Format: YUY2, MJPEG
– UVC Video Frame Rate: Max.30
– UAC Audio Coding Format: PCM
– Control Mode
– IP, RS-232 (RJ45), RS-422/485 In (RJ45), IR Remote
– Network Control Protocol
– ONVIF, VISCA Over IP
– Serial Control Protocol
– VISCA, Pelco D, Pelco P
– Pan Range
– 168°~+168°
– Tilt Range
– -30°~+90°
– Pan Speed
– 0.1°/S~60°/S
– Tilt Speed
– 0.1°/S~60°/S
– Pan Positioning Accuracy
– 0.1°±10%
– Tilt Positioning Accuracy
– 0.1°±10%
– Preset Speed
– 7 Levels
– Preset Position Numbers
– 255
– Input Voltage
– DC12V IEC60130-10 (JEITA Standard RC-5320A) TYPE4
– Input Current
– Max 1.5A
– POE
– 802.3af (Optional)
– Power Consumption
– Max. 18W
– Operational Temperature
– -10-40°C
– Storage Temperature
– -20-60°C
– Camera Dimensions
– 224.1*170.1*172.2mm
– Color
– Black
– Weight
– 1.2kg
– Special Effects
– Backlight Compensation: Support
– Digital Noise Reduction: Support
– Mirror: Support
– Electronic Flip: Support
– Flip: Normal
