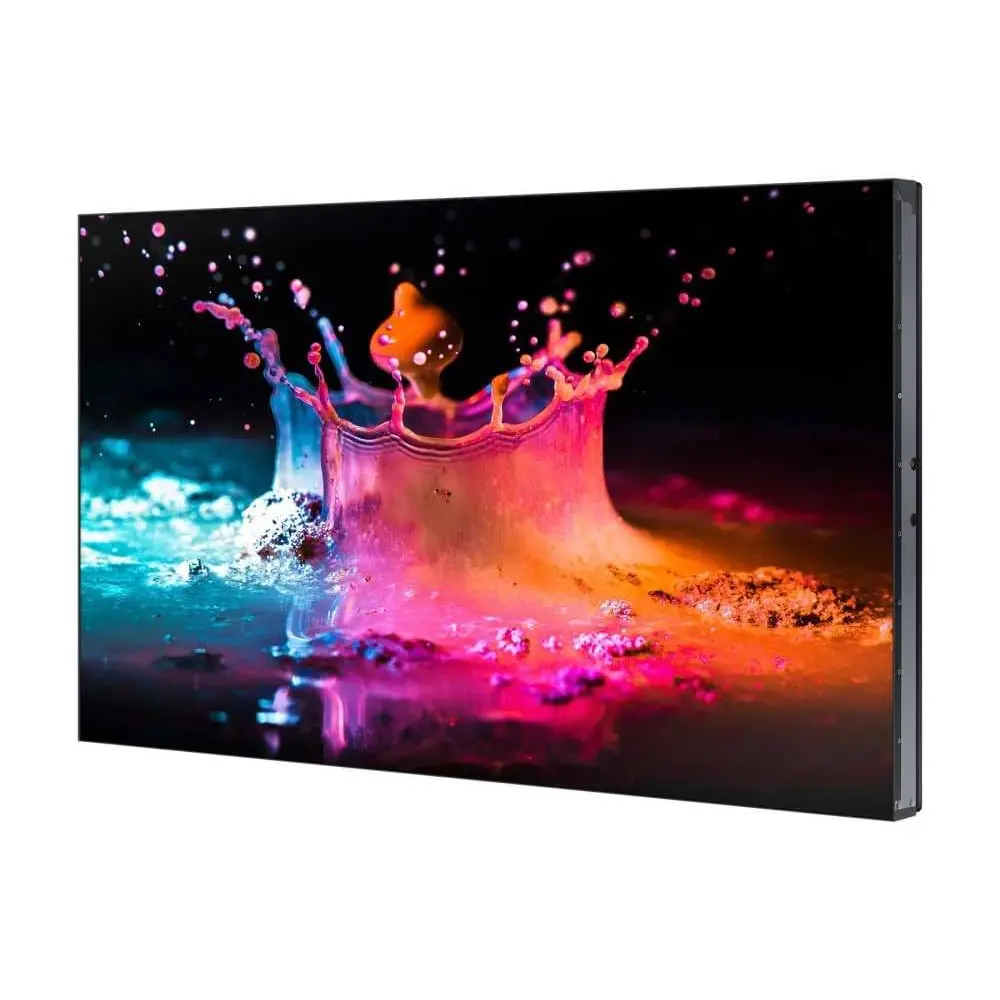

Samsung Videowall UDE-A Series
Videowall• Multifaceted UHD video wall solution based on daisy chain
• Brightness 700 nits uniformity and color accuracy with Samsung Color Expert Technology
• Ultra-narrow 3.5mm bezel-to-bezel design for a near-seamless appearance of the video wall
• Clear message through an anti-glare panel (haze 44%), with reliable 24/7 operation
Description
DESCRIPTIONS
KEY FEATURES

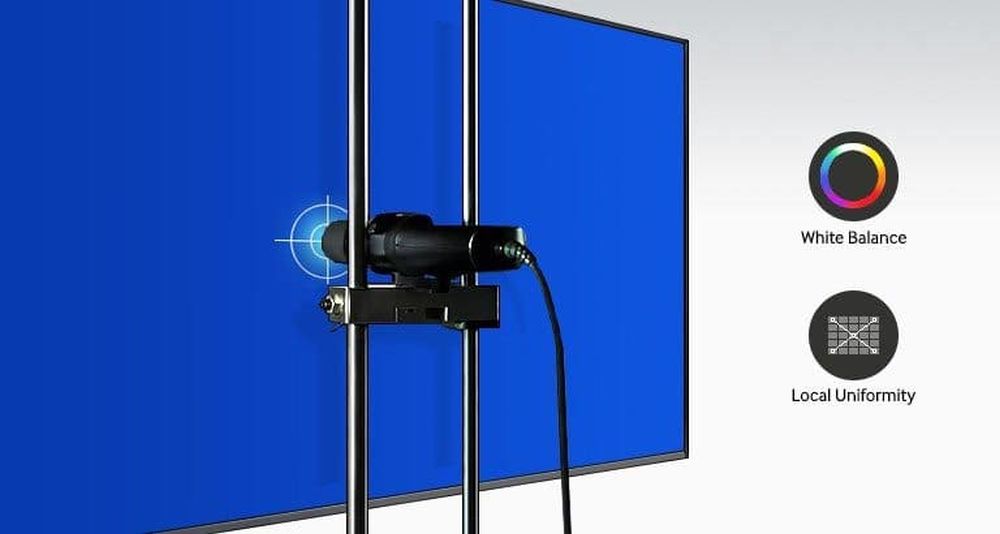

Achieve Ultimate Picture Quality through Advanced Calibration
Any irregularity in a video wall’s brightness and color accuracy across displays can negatively impact the viewing experience. To eliminate these types of color expression gaps and maintain a fully-aligned, consistent and captivating presentation, Samsung’s UDE Series video walls feature advanced factory tuning, innovative hardware and exceptional user calibration tools. Samsung’s multi-step factory calibration process tunes video wall displays to the highest-performing uniform brightness and color across each display. After calibration, the displays offer an industry-leading local uniformity of more than 90 percent for optimal color accuracy across the entire display. The calibration process also enables the displays to offer a superior white balance.* In addition to rigorous factory calibration, users can manage brightness and color uniformity conveniently with Samsung Color Expert, a powerful free software program. Through these advanced color management solutions, the UDE Series video walls enable large-scale presentations to feature superior uniformity, consistency and performance for the ultimate in color expression.

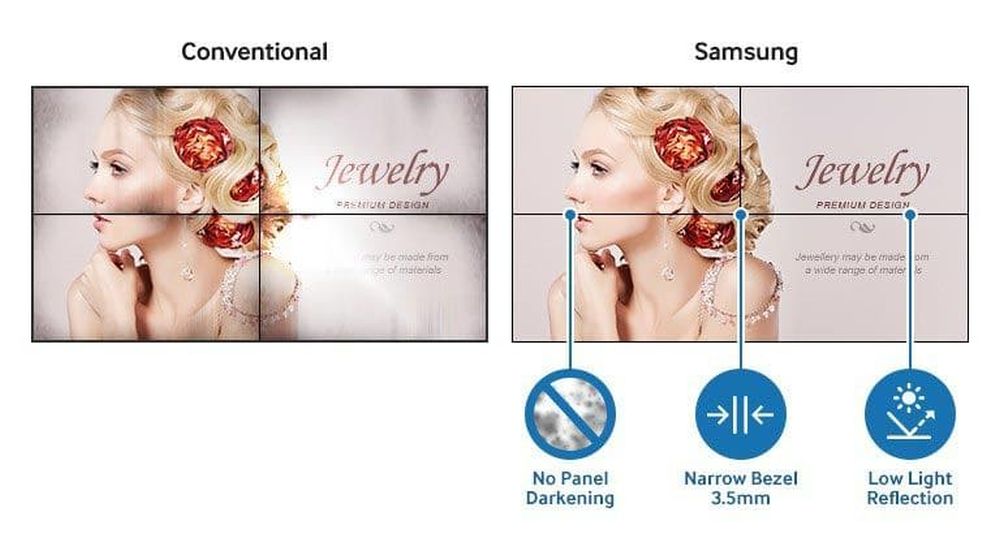

Captivate Audiences through a Narrow Bezel and Optimized Panel Design
The enhanced panel quality of Samsung’s UDE-A video wall elevates visual messaging and content through a seamless image and superior clarity. Featuring an ultra-narrow 3.5mm bezel-to-bezel design format (2.3mm bezel on the left and top sides and 1.2mm bezel on the right and bottom sides), which is the slimmest bezel in the video wall industry, the display creates a virtually uninterrupted viewing experience to keep audiences focused on content rather than the display itself.

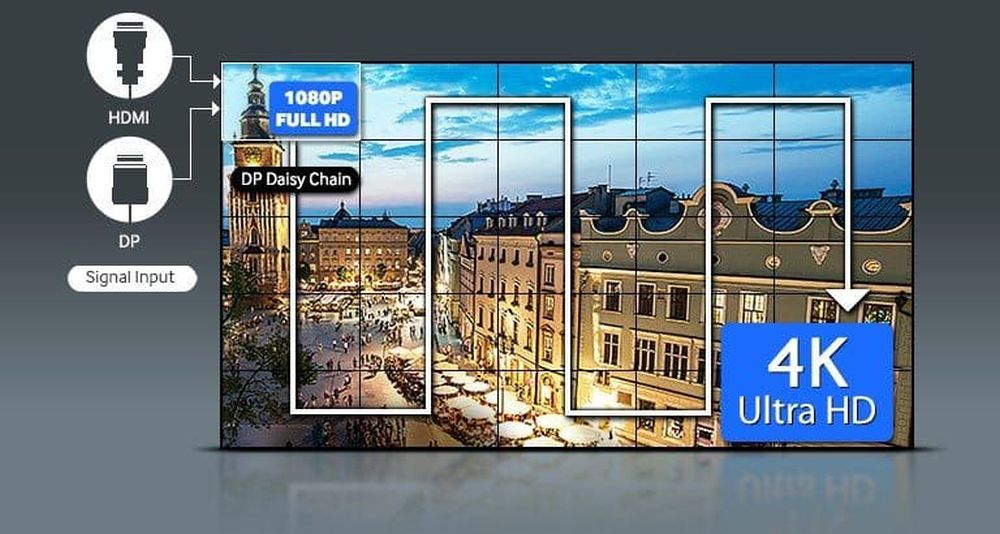

Achieve UHD Picture Quality without Additional Devices through Industry-Leading Technology
With an increase in screen size, content resolution becomes even more important to deliver impactful content. As the industry’s first video walls to feature integrated DisplayPort (DP) 1.2 and HDMI ports, Samsung’s UDE Series video walls, UDE-A, can display Ultra-High Definition (UHD) contents across video wall configurations as large as 5×5 without the purchase of additional expensive devices. In comparison to conventional video walls that typically require added equipment and only accommodate up to a 2×2 arrangement, the UDE Series’ UHD presentation represents a sharp improvement. By supporting High-Bandwidth Content Protection (HDCP) daisy chains, the UDE Series video walls also can display UHD content, such as live TV or Blu-Ray discs, without having to purchase additional equipment, minimizing the cost of deploying multiple displays as part of large-scale promotional signage or informational presentations.
High-Performing Display Readability and Durability for your Business Environment

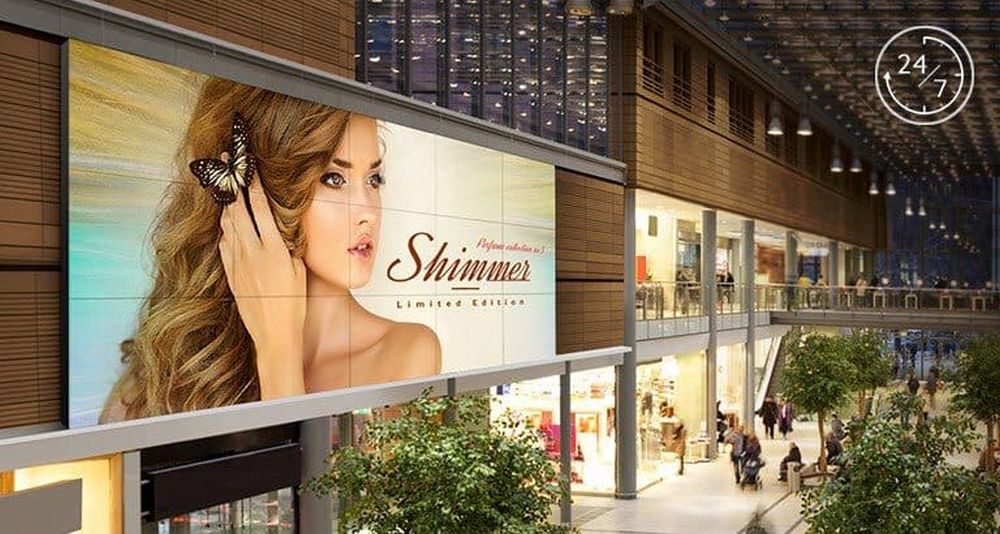

Samsung’s UDE-A Series video walls deliver a continuously immersive and engaging viewing experience through high-performing readability and durability. Designed for 24/7 continuous operation in challenging environments, the UDE-A Series video walls operate at the speed of your business without losing performance or display quality. The displays offer 700nit brightness to broadcast vivid, highly legible images and visual messaging in various lighting conditions. The combination of these embedded design benefits makes the UDE-A Series video walls ideal for content and information delivery in usage environments that require enhanced readability, such as transportation terminals, shopping malls, office lobbies and control rooms.

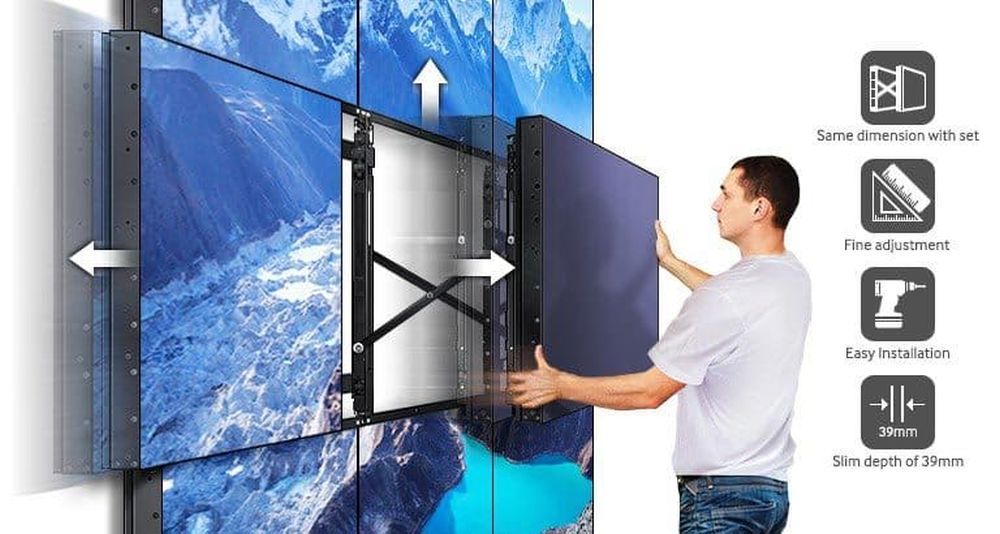

A Slim, Easily Configurable Wall Mount* Adaptive to your Business Needs
Samsung’s versatile UDE Series video walls come equipped with a range of user-friendly features to ensure a seamless installation complementary to your specific operational needs. The displays come with an industry-leading slim, 39mm depth video wall mount for easy installation and calibration to hold each display in place without distracting viewers. As the wall mount is sized to the dimensions of the video wall, users can simply install the mount first and fit into the video wall. This user-friendly design eliminates the need to measure the wall mount and calculate the gap to properly size, which can be experienced with standard video wall mounting systems. Once installed, the mounting system offers three-dimensional axis tuning, including x-axis (up-and-down with rotational screws); y-axis (left and right with rail movement); and z-axis (push and pull pop-up capability), for effortless alignment of individual displays to form a continuous, gap-free presentation. This dimensional consistency and easy adjustability also prevents the need to dismantle the entire video wall should one specific section require adjustment.
* Additional purchase required for wall mount

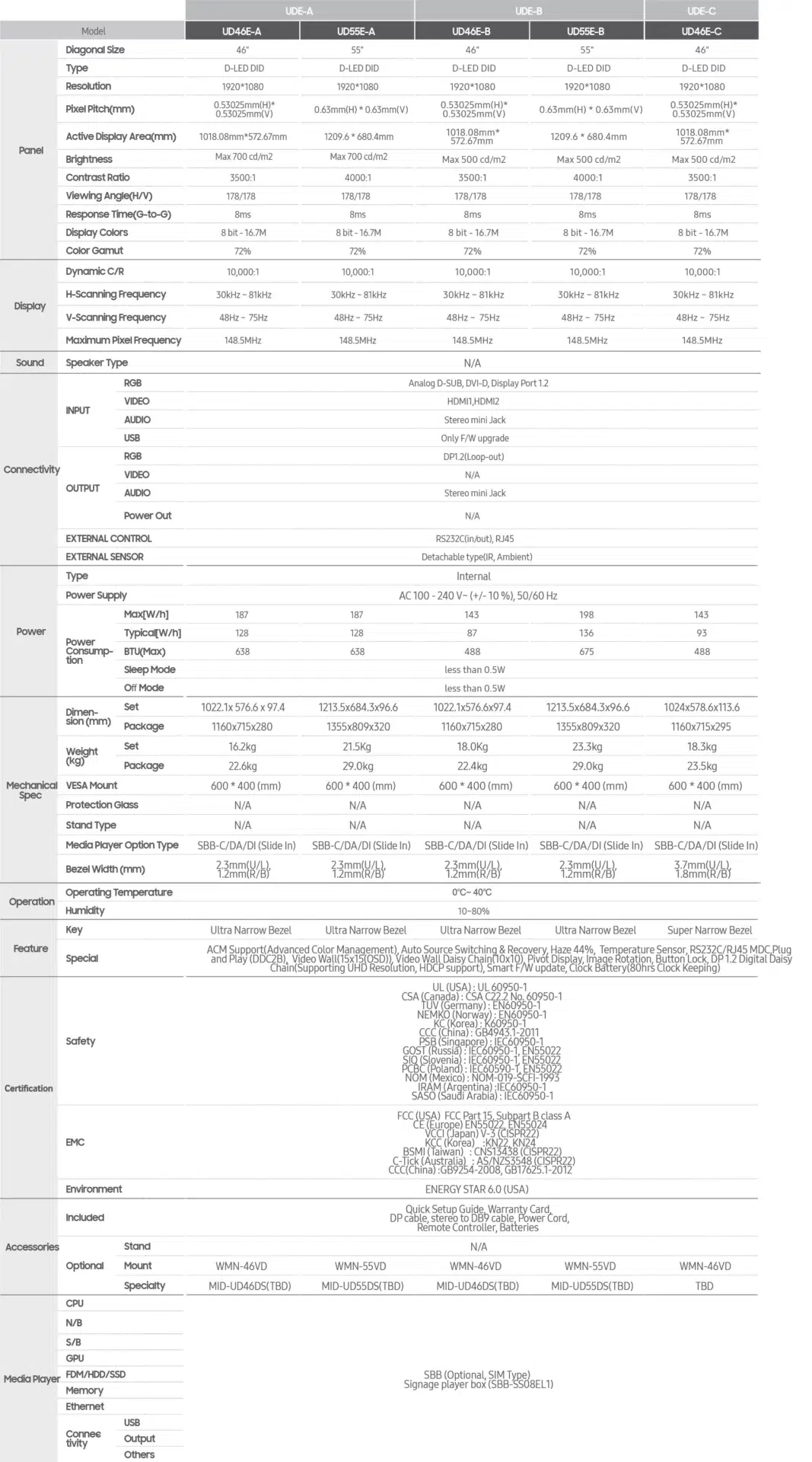

SPECIFICATIONS
