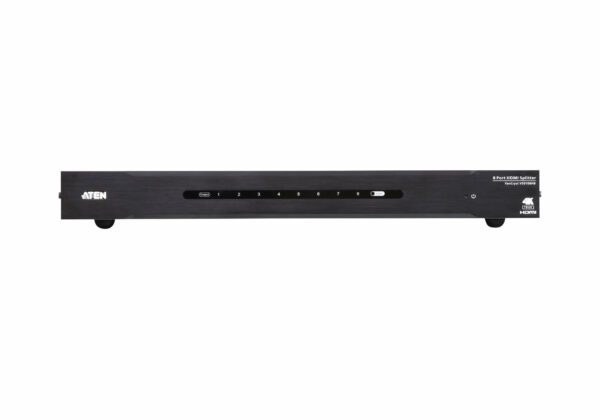

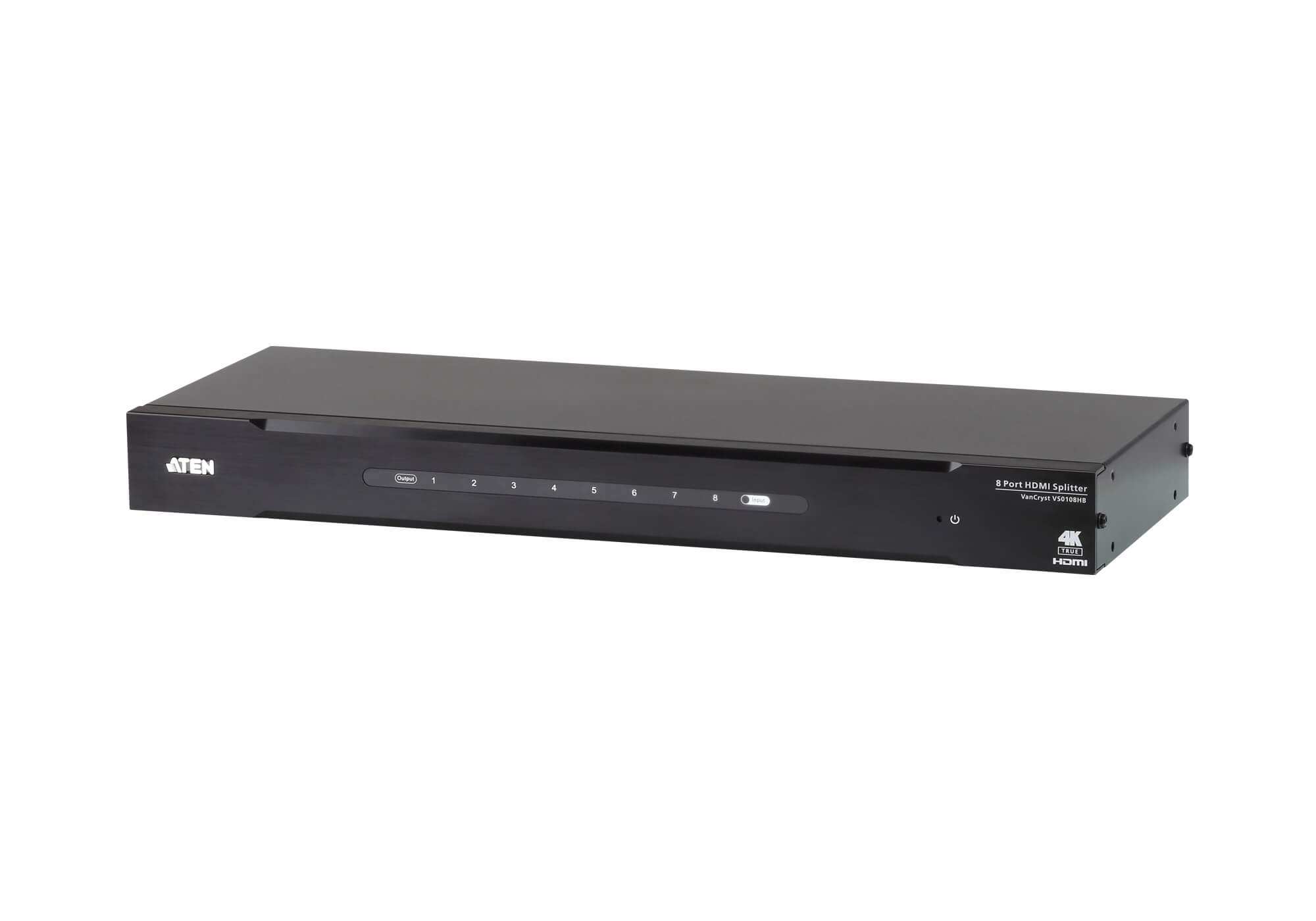

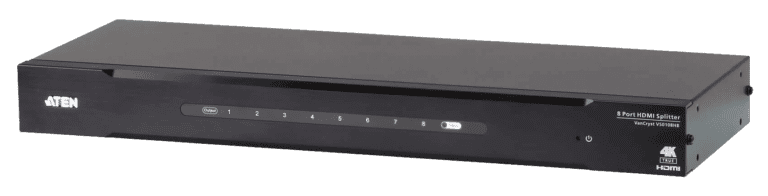

Aten 8-Port True 4K HDMI Splitter – VS0108HB
Accessories• HDMI 2.0 (3D, Deep color, 4K); HDCP 2.2 compliant
• Superior video quality – up to True 4K resolutions (4096 x 2160 @ 60Hz 4:4:4)
• Long distance transmission from source to output – up to 6 m
• Built-in bi-directional RS-232 serial control port for high-end system control
Description
Descriptions
The ATEN VS0108HB is designed for applications that require the routing of one HDMI source to 8 compatible display devices. It supports Dolby True HD and DTS HD Master Audio, video signals up to True 4K, data rates up to 18 Gbps, 3D, and HD lossless audio formats. Featuring ATEN EDID technology, the VS0108HB guarantees continuous EDID communication with connected devices and ensures that the HDMI sources power-up properly and maintain correct video outputs.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, ATEN VS0108HB is a powerful solution for a wide range of settings, such as home theater, commercial settings, educational centers, meeting rooms, or wherever needed to meet application requirements.
Key Features
- Allows one HDMI source to be connected to up to 8 HDMI displays
- HDMI 2.0 (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to True 4K resolutions (4096 x 2160 @ 60Hz 4:4:4)
- Supports HDR10+
- Long distance transmission from source to output – up to 6 m
- Built-in bi-directional RS-232 serial control port for high-end system control
- Supports Dolby True HD and DTS HD Master Audio
- Clear LED indication of device status
- EDID Expert™ – Selects optimum EDID settings for smooth power- up, high quality display and use of the best resolution across different screens
- Plug-and-play
- Rack-mountable (1U design)
Specifications
LEDs
Input 1 x LED (Green)
Video Output 8 X LED (Green)
Power 1 x LED (Green)
Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5M at 4K@60Hz (4:4:4)
Video Output

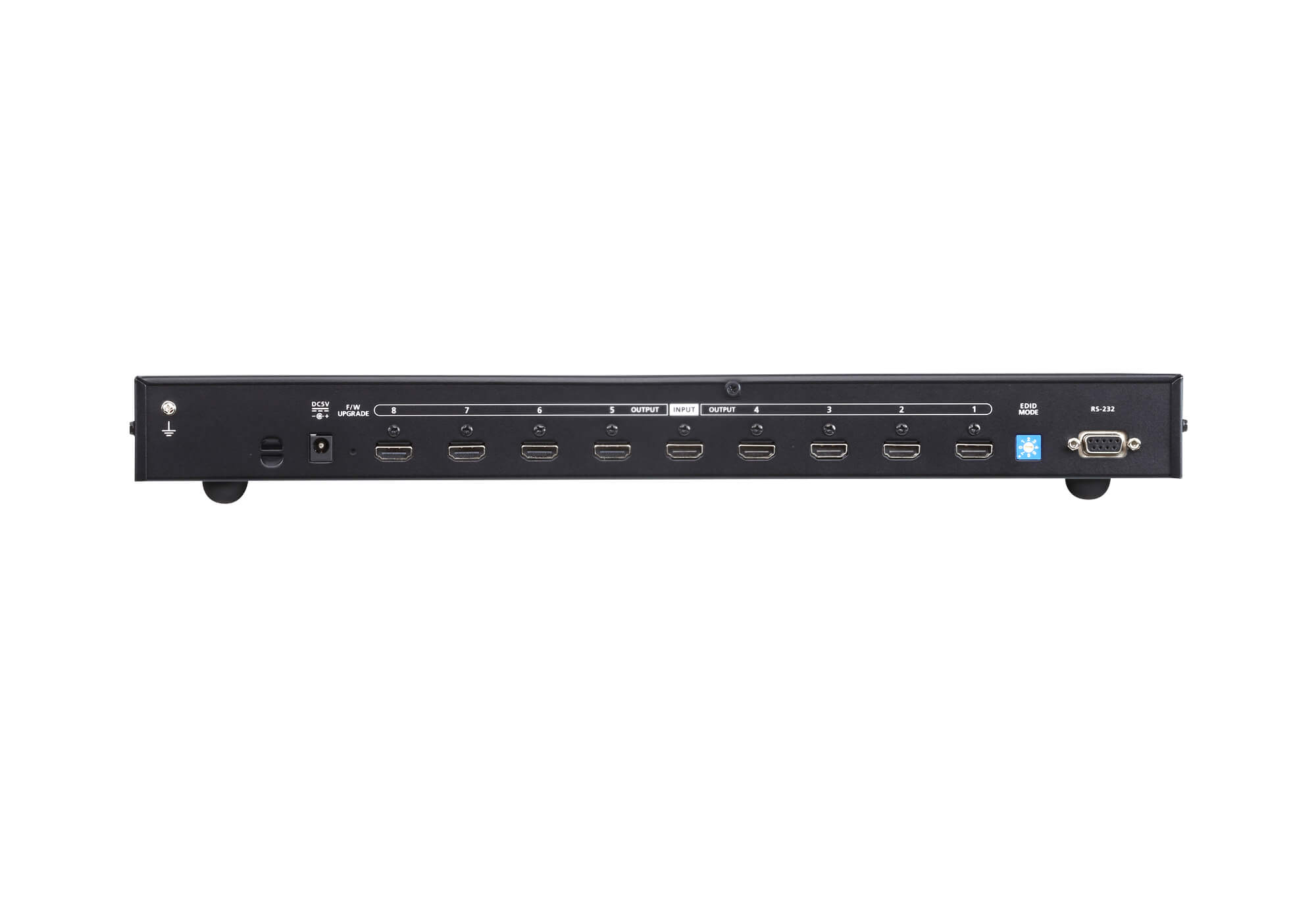

Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5M at 4K@60Hz (4:4:4)
Video
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock 600 MHz
Compliance HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
RS-232 Connector: DB-9 Female (Black) x 1
Baud Rate: 19200,
Data Bits: 8, Stop Bits:1,
Parity: No, Flow Control: No
EDID Settings EDID Slide Switch x 1
EDID Mode: Port 1 / Default / Auto / Switch
Connectors
Power 1 x DC Jack
Power Consumption DC5V:11.95W:56BTU
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Housing Metal
Weight 2.18 kg ( 4.8 lb )
Dimensions (L x W x H) 43.72 x 15.78 x 4.40 cm
(17.21 x 6.21 x 1.73 in.)
Carton Lot 3 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x VS0108HB 8-Port True 4K HDMI Splitter
1x Power Adapter
1x Mounting Kit
1x User Instructions
